TX2550 M4 Upgrade and Maintenance Manual 203
Hard disk drive (HDD) / solid state drive (SSD)
Installing the SAS expander board holder

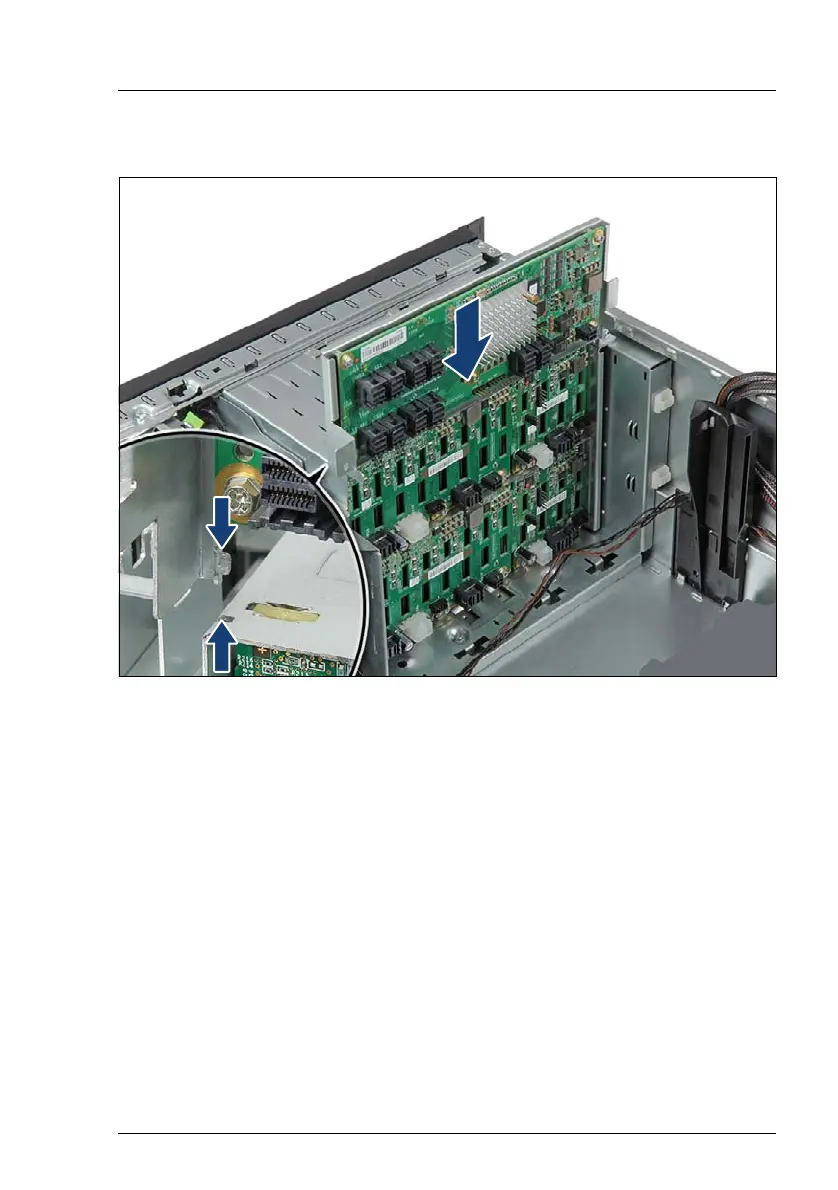

Figure 122: Installing the SAS expander board holder (A)
Ê Align the SAS expander board holder at a right angle to the HDD cage as
shown.
Ê Ensure that the SAS expander board is flush with the SAS backplanes
below.
Ê Lower the SAS expander board holder onto the HDD cage, so that the two
latches on each side of the holder engage with the slots on the HDD cage
(see close-up).
