Hard disk drive (HDD) / solid state drive (SSD)

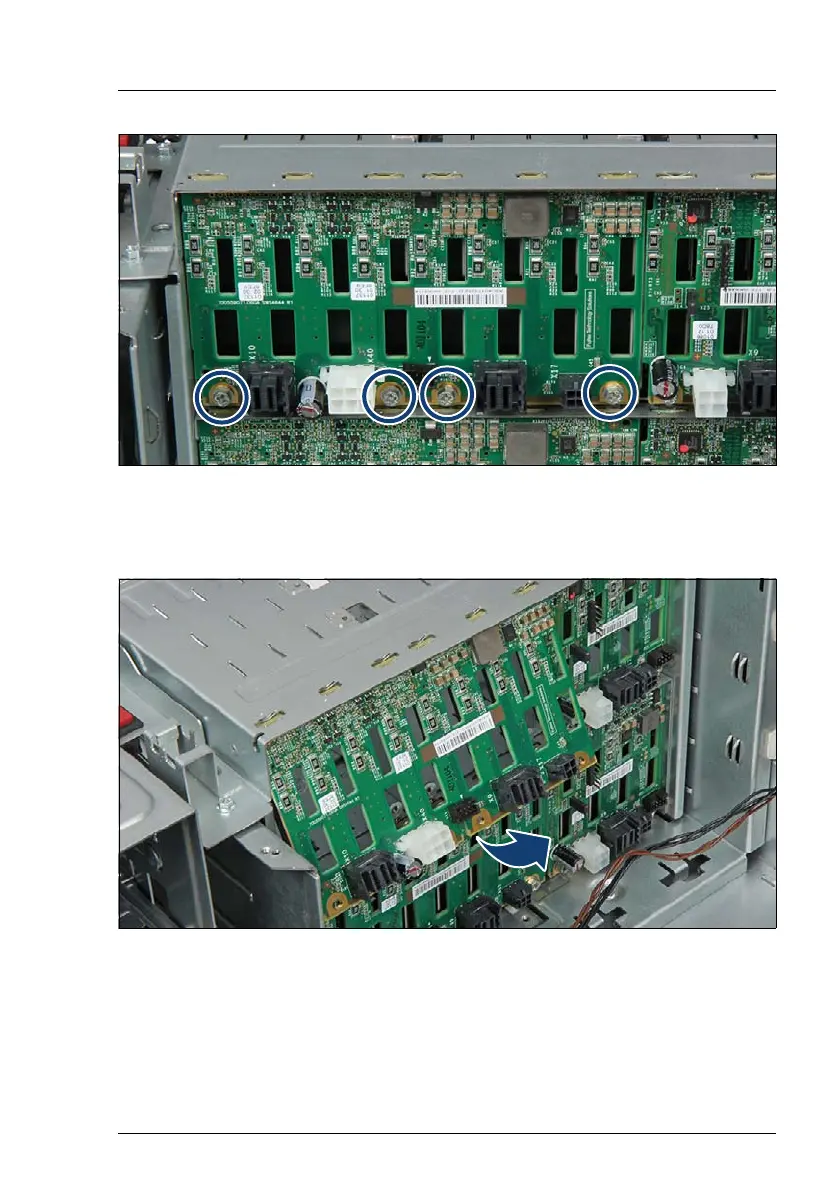

Figure 119: Removing a SAS backplane - example SAS backplane 3 (A)
Ê Remove the four (SAS backplane 2 and 4) or two screws (SAS backplane 1
and 3).
Figure 120: Removing a SAS backplane - example SAS backplane 3 (B)
Ê Take out the SAS backplane in a slight angle.
