TX2550 M4 Upgrade and Maintenance Manual 163
Hard disk drive (HDD) / solid state drive (SSD)

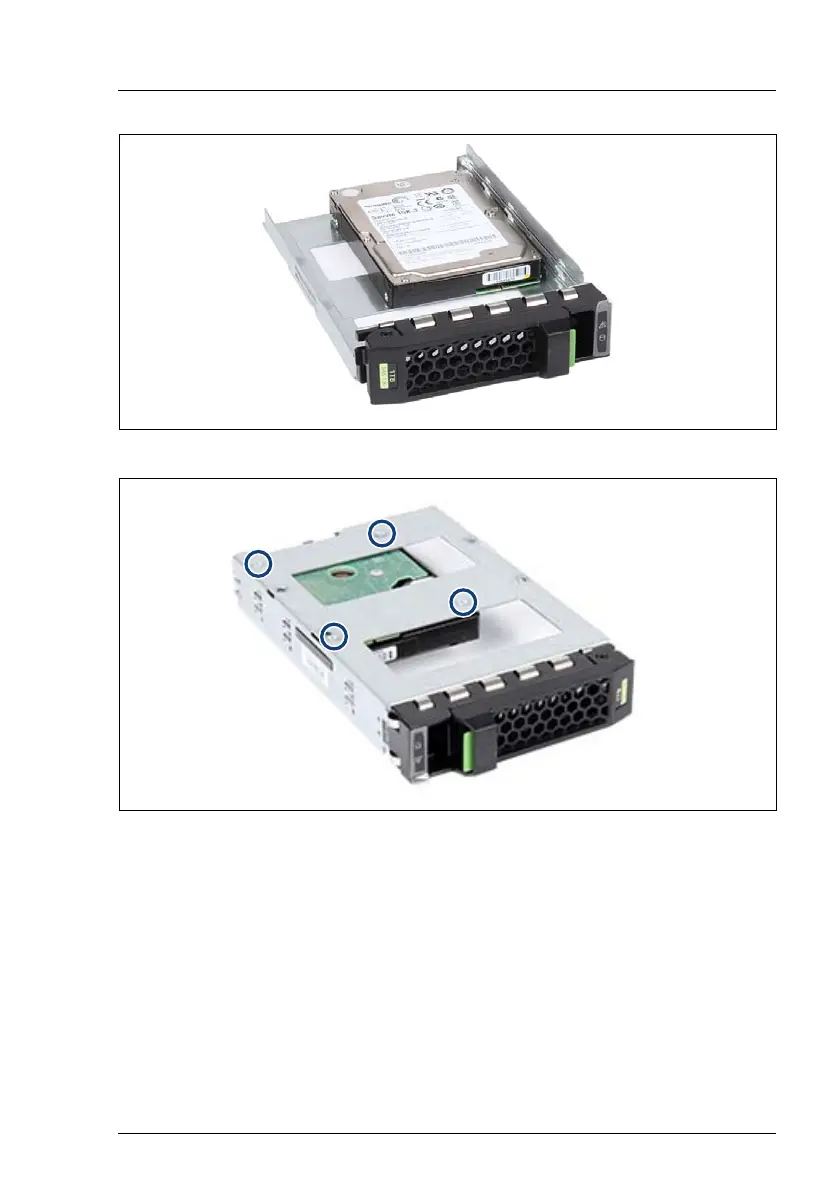

Figure 81: Installing the 2.5-inch HDD/SSD in the 3.5-inch installation frame (A)
Figure 82: Installing the 2.5-inch HDD/SSD in the 3.5-inch installation frame (B)
Ê Fasten the 2.5-inch HDD/SSD with four screws.
Removing a 2.5-inch HDD/SSD from a 3.5-inch installation frame
Ê Please proceed in reversed order.
