206 Upgrade and Maintenance Manual TX2550 M4
Hard disk drive (HDD) / solid state drive (SSD)
Figure 125: Installing the SAS expander board holder (D)

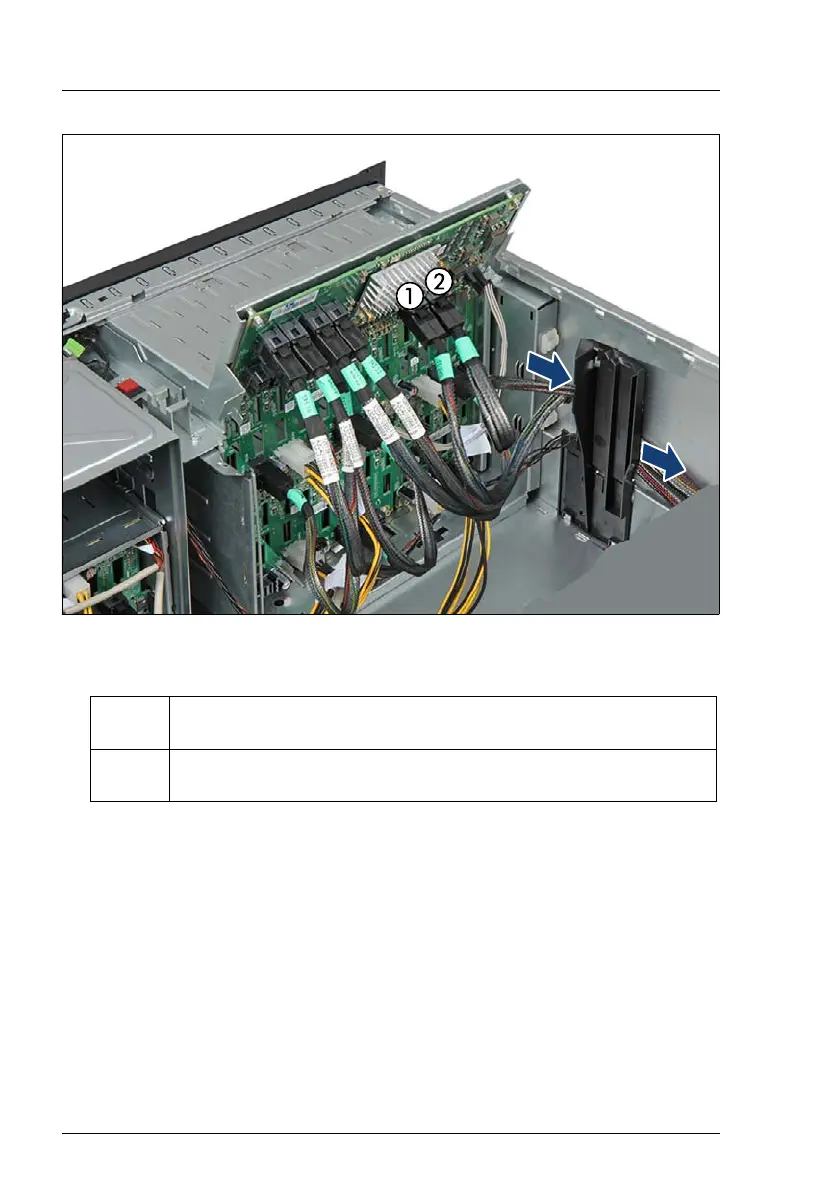

Ê Connect the two SAS cables:
Ê If applicable, connect the OOB cable, see section "Replacing the OOB
cable" on page 488.
Ê Pull down the SAS expander board holder carefully.
Ê Fasten the SAS expander board holder with the screw (see figure 115).
I For the cable plan see chapter "Appendix B" on page 517.
1
SAS cable C10 from SAS expander board connector X1 to the
connector MLC1 on the SAS controller
2
SAS cable C10 from SAS expander board connector X2 to the
connector MLC2 on the SAS controller
