TX2550 M4 Upgrade and Maintenance Manual 363
Processor (CPU)

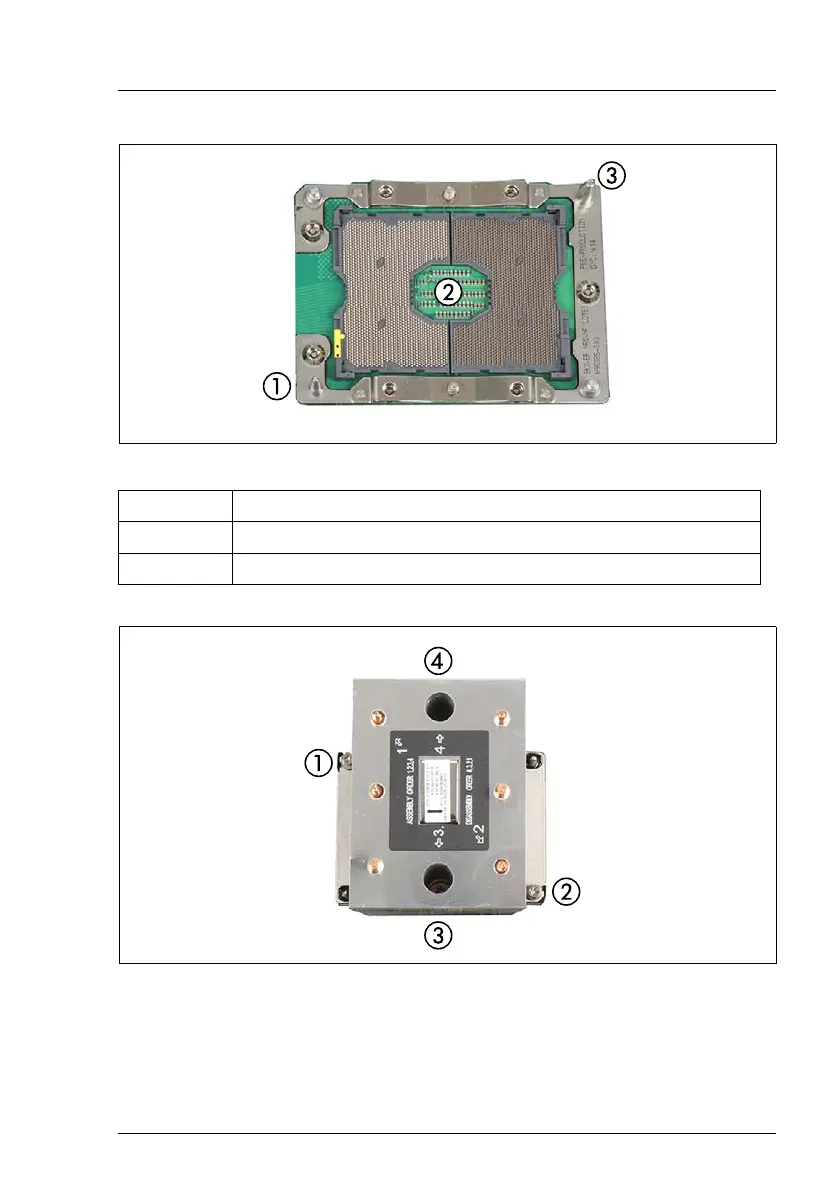

Figure 261: Position pins
Figure 262: Installing the heat sink
Ê Carefully seat the heat sink onto the CPU socket.
I Take care of the pins. There is only one position which fits.
1 Thin pin
2 Empty CPU socket
3 Thick pin
