TX2550 M4 Upgrade and Maintenance Manual 473
Converting a floorstand model to a rack model
Changing the position of the threaded bolt

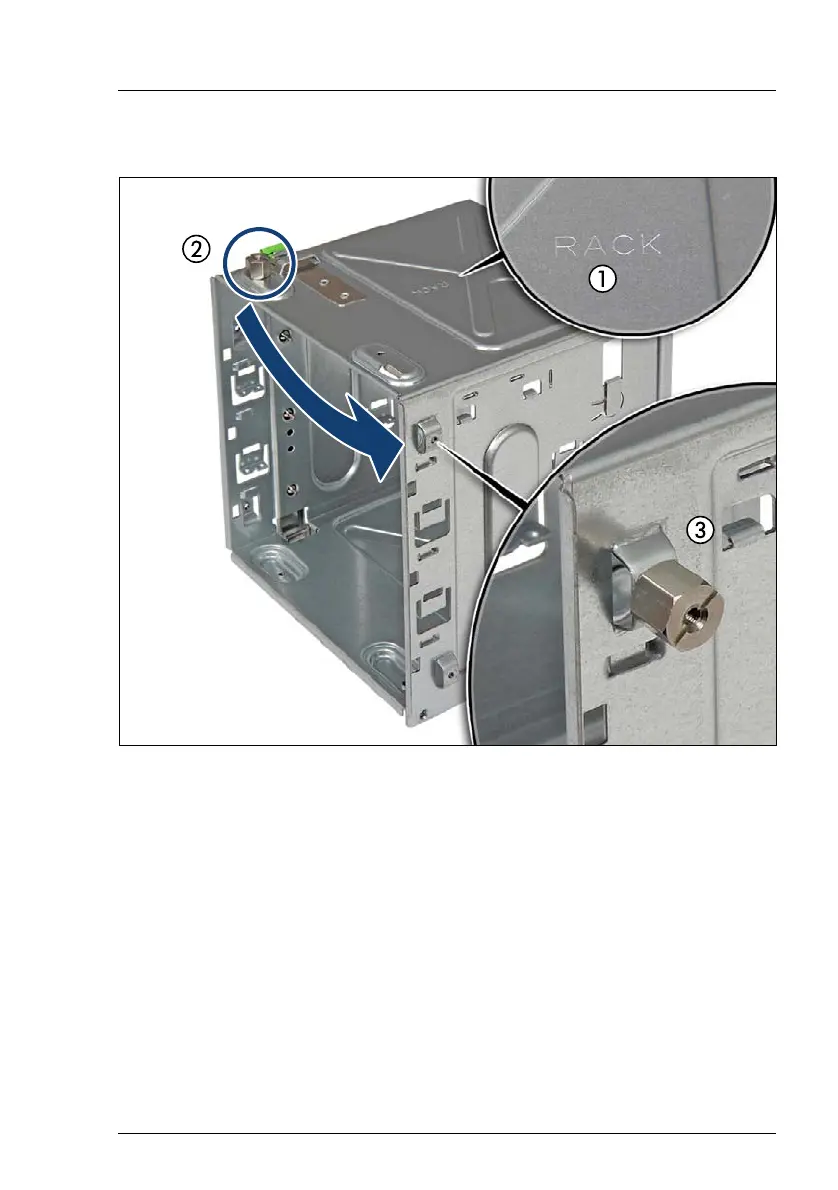

Figure 337: Changing the position of the threaded bolt
Ê Turn the accessible drive cover with its "RACK" stamping facing up (1, see
close-up).
Ê Remove the threaded bolt from the upper edge of the accessible drive cage
(2).
Ê Reinstall the threaded bolt on the side of the accessible drive cage as shown
(3, see close-up).
