486 Upgrade and Maintenance Manual TX2550 M4

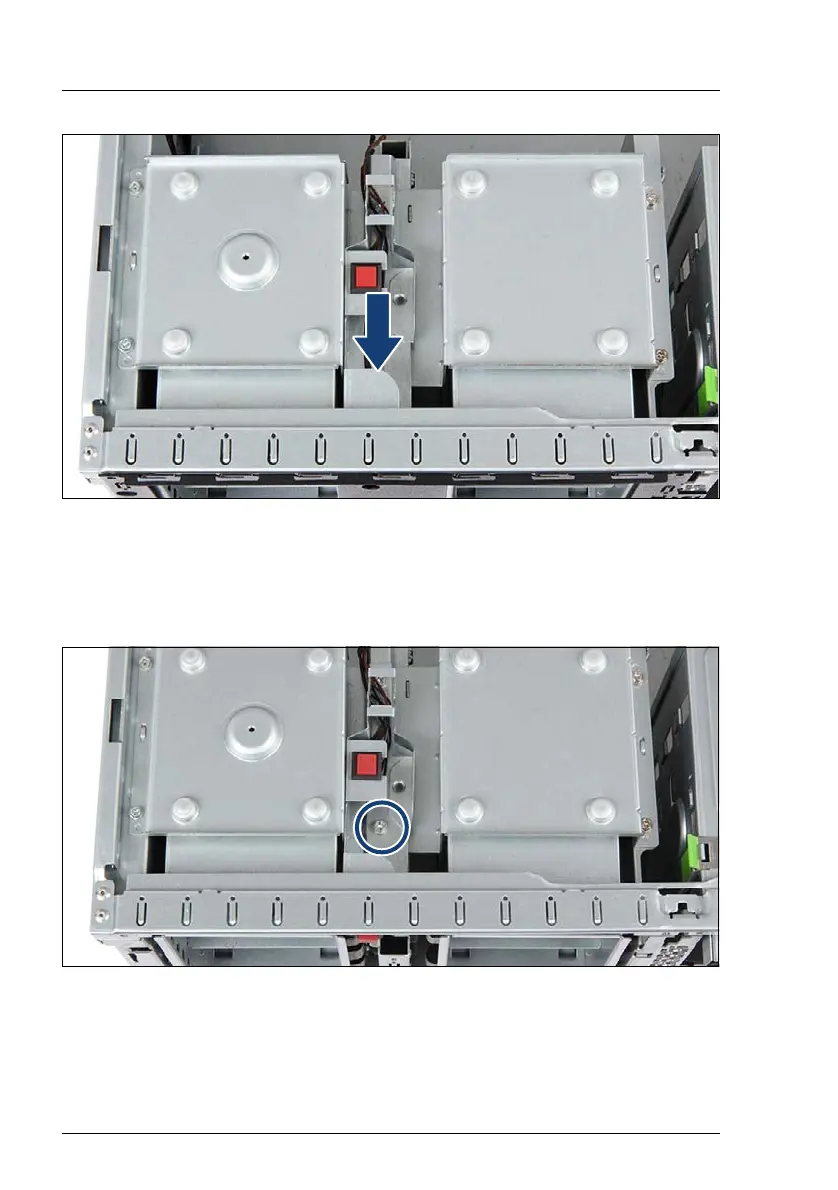

Figure 350: Installing the intrusion switch cable (A)
Ê Place the new intrusion switch holder on the HDD bay top cover as shown.
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go.
Figure 351: Installing the intrusion switch cable (B)
Ê Secure the intrusion switch holder on the HDD bay top cover with one screw.
