Fujitsu PRIMERGY TX2550 M4 - Page 493

TX2550 M4 Upgrade and Maintenance Manual 493
Appendix A
3.5-inch HDD model

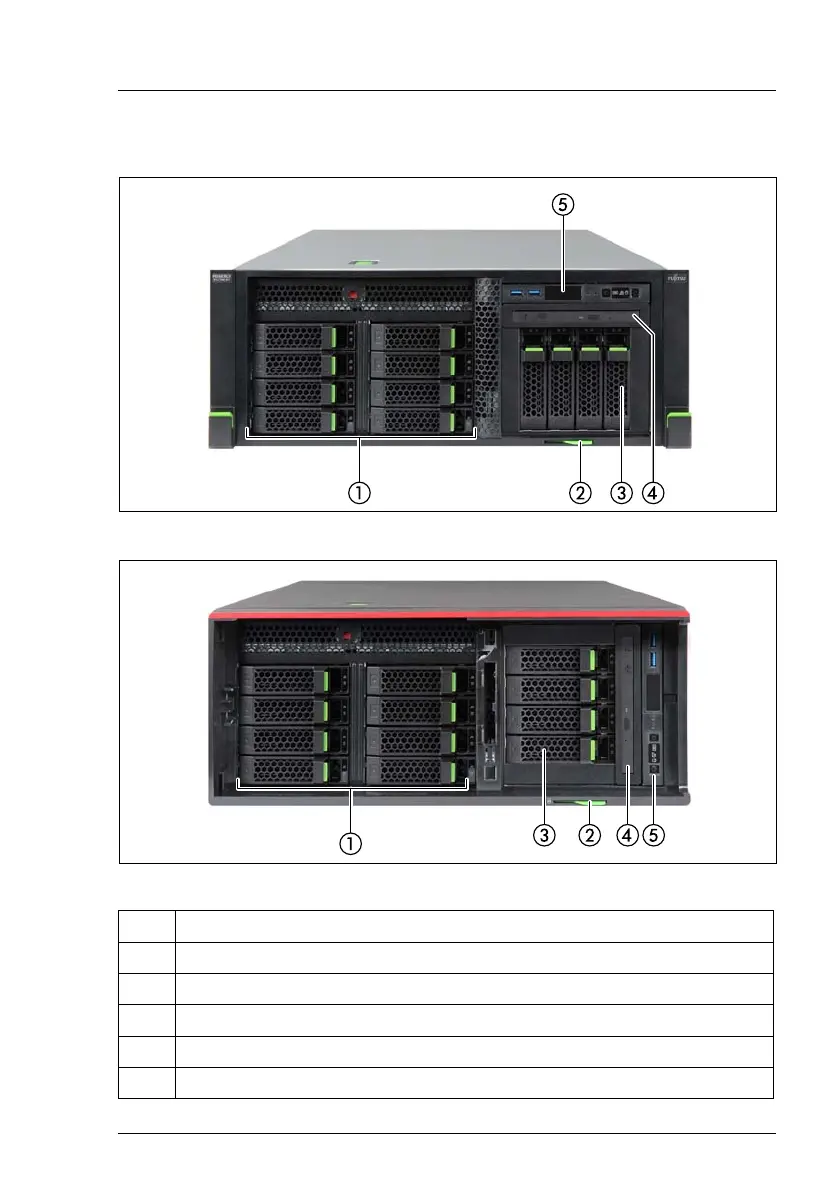

Figure 357: Server front 3.5-inch HDD model - example TX2550 M4 (rack model)
Figure 358: Server front 3.5-inch HDD model - example TX2550 M4 (floorstand model)
Pos. Component
1 3.5-inch HDDs / dummy modules
2ID card
3 4x 3.5-inch HDD extension box
4ODD
5 Front panel module
