60 Upgrade and Maintenance Manual TX2550 M4
Basic hardware procedures

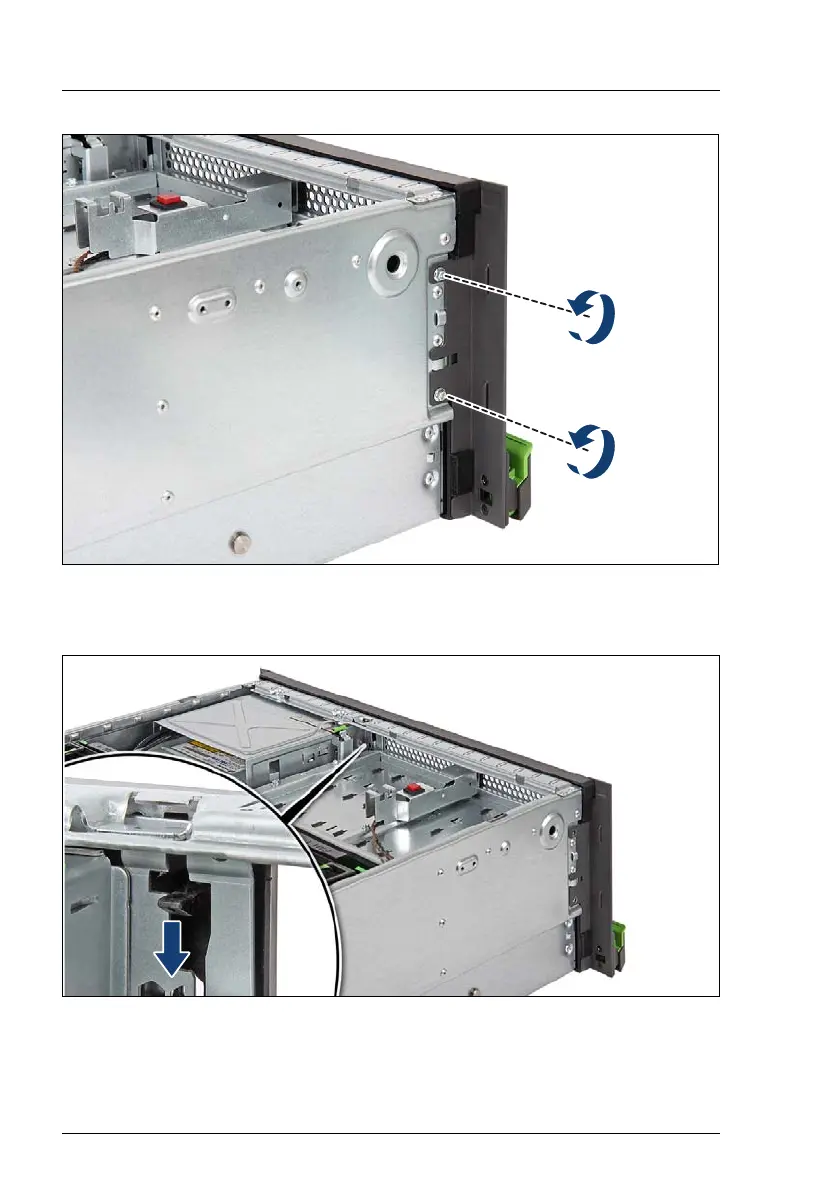

Figure 8: Removing the rack front cover (A)
Ê Remove two screws from the side brackets on either side.
Figure 9: Removing the rack front cover (B)
Ê Press down on the upper locking latch (1) while slightly folding out the rack
front cover.
