5.4 Advanced Settings for Each Channel
92
Measurement is possible when an 8949 Universal Unit is connected. Set the
range, type of resistance temperature detector, and connection type.
Range
Type of resistance temperature detector
Connection type
Measurement is possible when an 8949 Universal Unit is connected and a 9701
Humidity Sensor is connected to the 8949 Universal Unit. The range is fixed to
100%f.s.

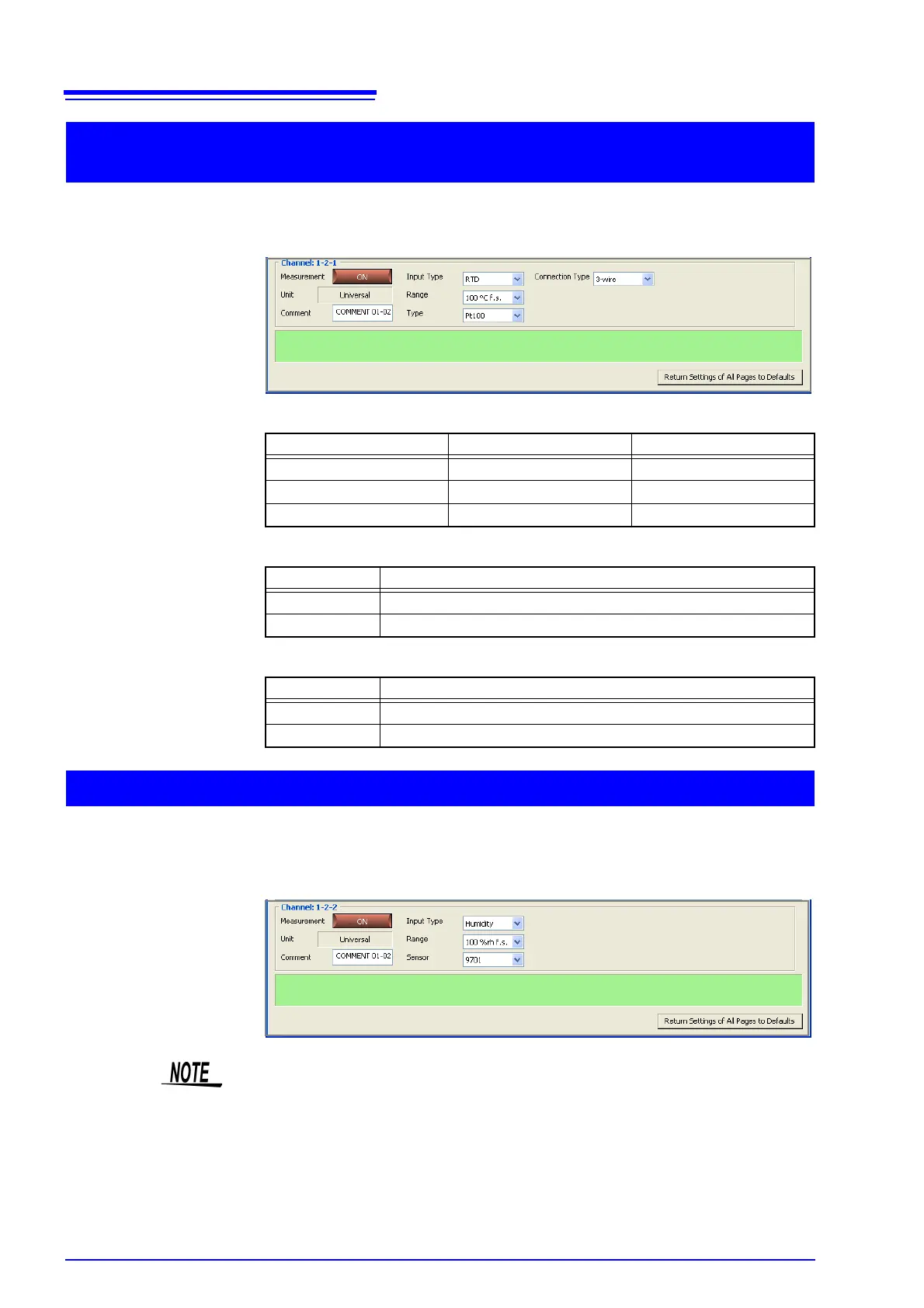

When Resistance Temperature Detector is Selected
(Temperature Measurement)
Selectable Items Measurable Ranges Maximum Resolution
100°C f.s. -100 to 100°C 0.01°C
500°C f.s. -200 to 500°C 0.05°C
2000°C f.s. -200 to 2000°C 0.1°C
Selectable Items Measurable Ranges
Pt100 -200 to 800°C
JPt100 -200 to 500°C
Selectable Items Explanations
3-wire Connect a 3-wire measurement resistance detector.
4-wire Connect a 4-wire measurement resistance detector.
When Humidity is Selected
If humidity is selected for even one of the channels, the recording interval can
only be set to a setting longer than 5 seconds because the sensor response
speed is limited. If a recording interval of less than 5 seconds is selected, it is
automatically changed to 5 seconds.
