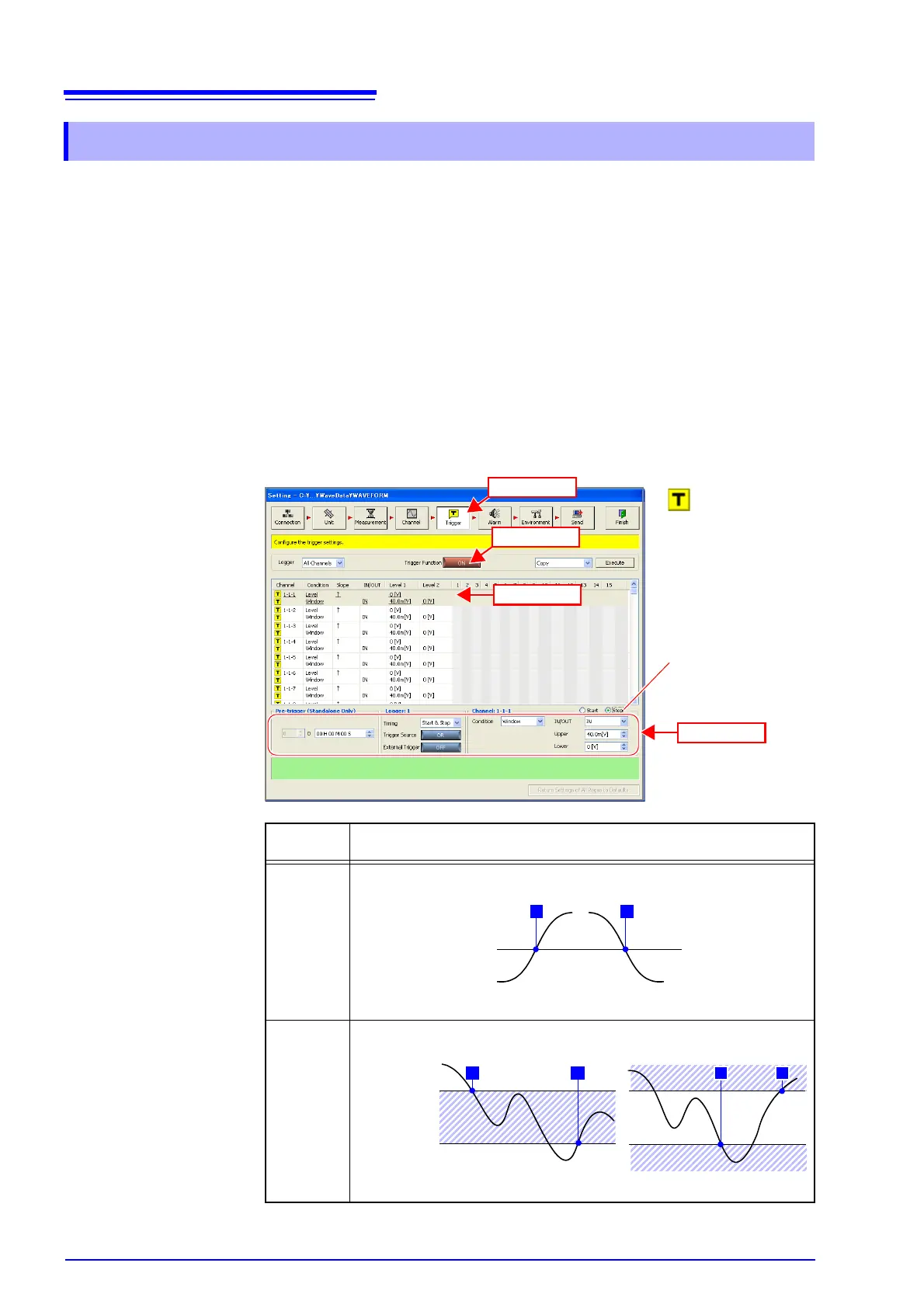

5.5 Setting the Trigger Function
114
This section describes setting a trigger that uses an analog input signal. This can
be set for each channel.
1. Set the trigger function on the trigger settings page to ON.
Each click of the button toggles the trigger function ON and OFF.
2. Select the channel for which to set the trigger function on the trigger set-
tings page.
If you want to reduce the number of display channels, use the narrow down fea-
ture to select the channels to display.
3. Set the trigger condition.
The setting values differ depending on setting of the trigger condition. For
details, see the following.
5.5.6 Analog Triggers
Selectable
Items
Explanations
Level
A trigger can be applied when the input signal crosses the set level value
(threshold value) on the set slope (↑ or ↓).
Window
Set the upper limit value and lower limit value to apply a trigger when the
input signal enters (IN) or exits (OUT) the corresponding range.
(1) Click
(3) Click
: Trigger ON
(2) Click
When the trigger tim-
ing is "Start & Stop,"
set each of the start
trigger condition and
stop trigger condition.
(4) Set
Trigger level
Input signal
Trigger slope:
[ ↓ ]
T
T
[ ↑ ]
Upper limit
value
Lower limit
value
T
T
T
T
IN OUT
