9.1 Setting the Printing Range
176
To set the print format and printing range of the displayed waveforms.

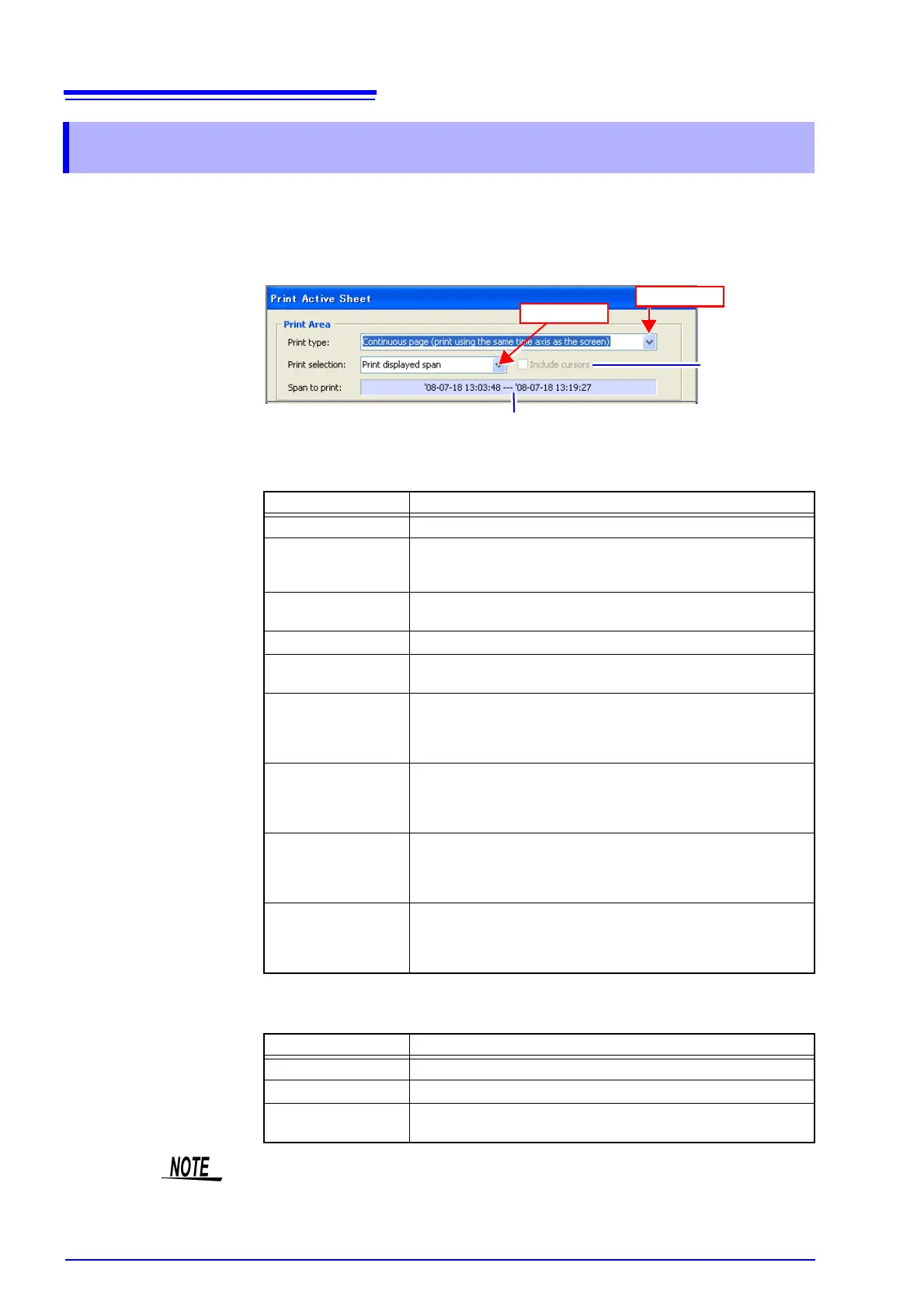

1. Click [File]-[Print] on the menu bar to display the [Print Active Sheet] dialog.
2. Set [Print type] and [Print selection].
9.1 Setting the Printing Range
Print type:
Selectable Items Explanations
Print no waveforms Waveform will not be printed.
Continuous Page (Print
using the same time
axis as the screen)
Print the waveform continuously across several pages.
Print the selection on
one page
Compress the waveform in the selected print interval onto 1
page for printing.
Displayed screen Print the waveform screen on display.
Print report
Print the report. When printing the report, waveform screen, and
setting lists for the various channels will be printed.
Specified interval:
1 hour/page
[hourly, on the hour]
Print the printing range of one page on an hourly basis. Each
interval period starts [hourly, on the hour]. At the same time,
the maximum, minimum and average values of the various
channels in the printing range are also printed.
Specified interval:
1 day/page
[00:00-24:00]
Print the printing range of one page on a daily basis. One inter-
val period is [00:00-24:00]. At the same time, the maximum,
minimum and average values of the various channels in the
printing range are also printed.
Specified interval:
1 week/page
[Sun.-Sat.]
Print the printing range of one page on a weekly basis. One
interval period is [Sun.-Sat.]. At the same time, the maximum,
minimum and average values of the various channels in the
printing range are also printed.
Specified interval:
1 month/page
[1st-31st day]
Print the printing range of one page on a monthly basis. One
interval period is [1st-31st day]. At the same time, the maxi-
mum, minimum and average values of the various channels in
the printing range are also printed.
Print selection:
Not applicable when [Print type] is selected as [Displayed Screen].
Selectable Items Explanations
Print whole span Print waveforms of all ranges.
Print displayed span Print waveform in the range shown.
Print the span
between cursors
Print waveforms between cursors A and B (available when the
A/B cursors are displayed in the waveform display screen).
(1) Select
(2) Select
When the print
interval is
checked as
[Print the span
between cur-
sors], print inter-
vals are widened
and the A/B cur-
sors are printed.
Printing range will be displayed in accordance with the
selected print format and print interval.
When the [Print selection] is selected as [Print the span between cursors]
and only one cursor is displayed, the interval between the position of the dis-
played cursor and the end of the waveform will be printed.
