4.3 Display Settings Windows
60

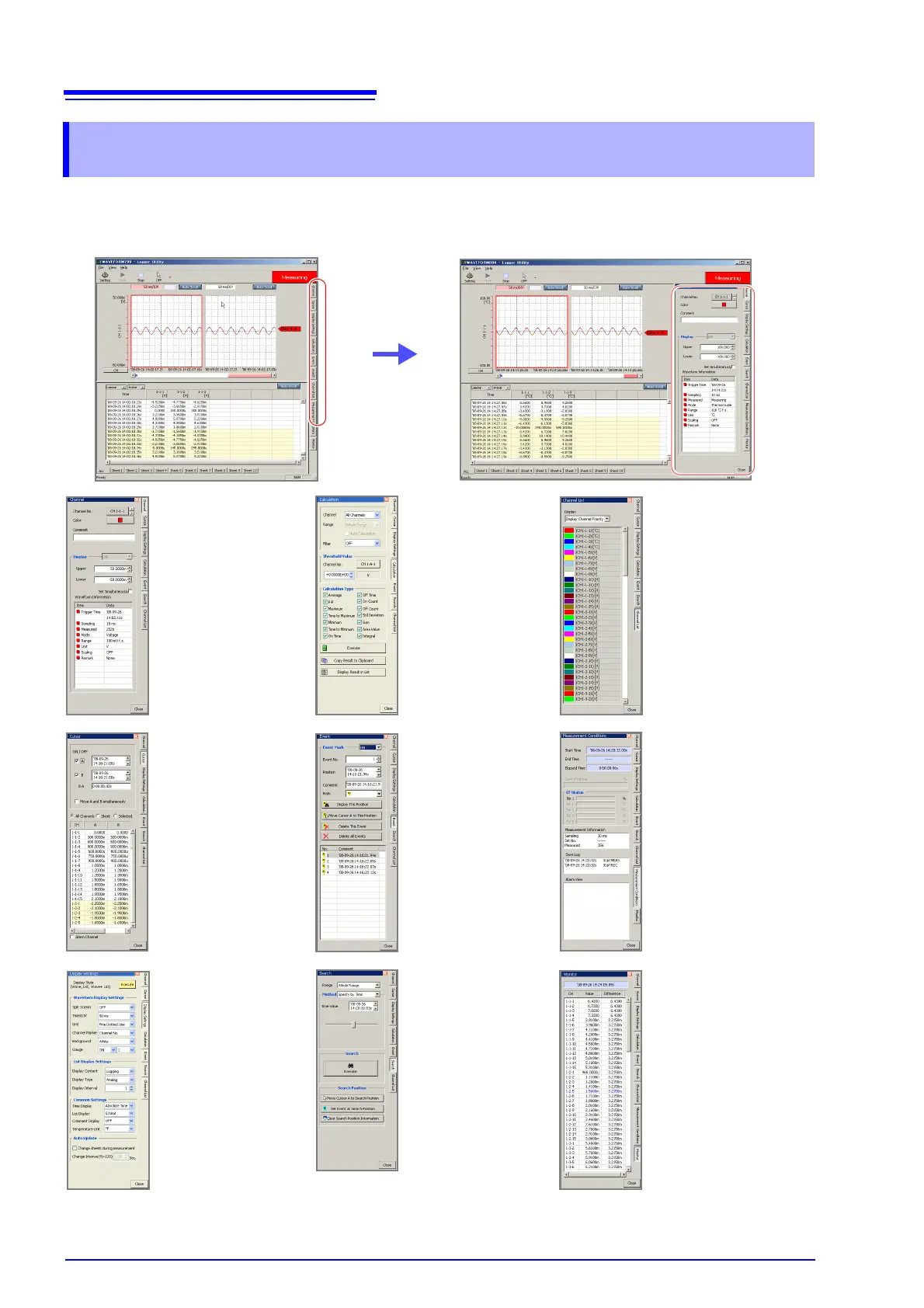

Click tabs on the right edge of the main screen to display windows for setting the waveform display area and
confirming items such as measurement conditions. See "Chapter 7 Analyzing Measurement Data" (p. 139).
4.3 Display Settings Windows
[Channel List]
Switch the channel dis-
play for the currently se-
lected sheet.
[Measurement
Conditions]
Display measurement
progress. (Displayed only
during measurement)
[Monitor]
Display the difference be-
tween the values of the
sample immediately be-
fore and the current val-
ues. (Displayed only
during measurement)
[Calculation]
Set calculation items
and calculation ranges.
[Event]
Perform tasks such as
switching and editing the
event mark display.
[Search]
Search the measure-
ment data for parts that
match the conditions.
[Channel]
Set the display method
for any channel. Wave-
form information is also
displayed.
[Cursor]
Set cursors A and B.
[Display Setting]
Set the display method
for the waveform display
area and list display ar-
ea.
