7.4 Calculations
150
This section describes performing calculations on the measurement data within the whole range or between
the cursors A and B. (Calculations can be performed during measurement or after measurement.)
1. Click the [Calculation] tab on the right side of the main screen to open the settings window.
2. Select [All Channels] or [Display Sheet] for the calculation channels.
3. Select [Whole Range] or [Between A - B] as the calculation range.
Setting
[Between A and B] as the calculation range allows you to select [Auto Calculation].
4. Select ON or OFF for the calculation filter.
Setting ON allows you to avoid incorrect calculations caused by noise.
5. Select a channel and set the threshold.
The threshold value is only valid when checks are added to On Time, Off Time, On Count, or Off
Count.
7.4 Calculations

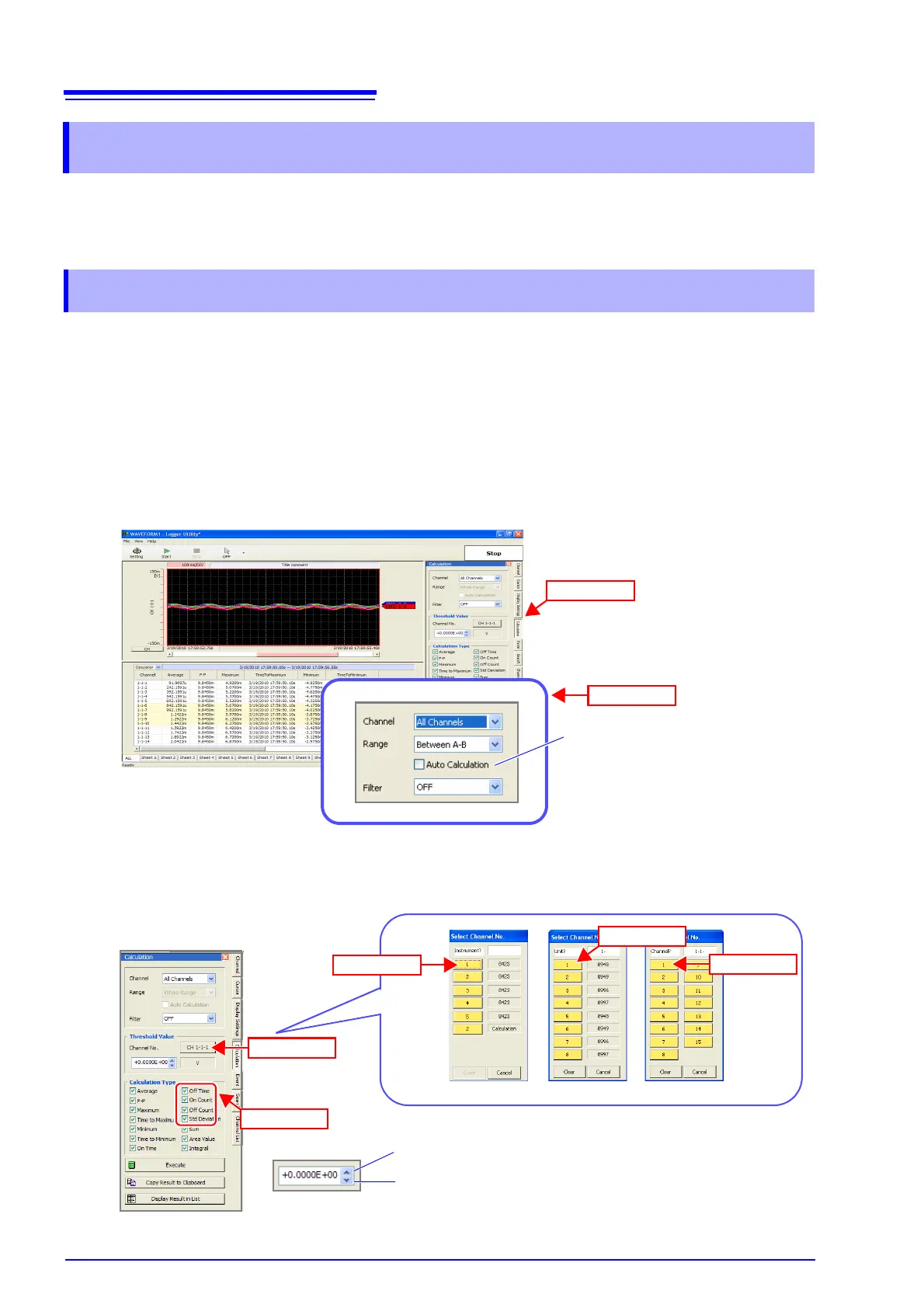

7.4.1 Calculation Settings
(1) Click
(2) Set
If the calculation range is between A and
B, you can add a check here to enable
calculations to be performed automati-
cally when the cursors A and B are
moved.
Up
Down
(5) Select
(1) Click
(2) Click
(3) Click
(4) Click
