5.5 Setting the Trigger Function
105
5
Chapter 5 Setting Measurement Conditions
This section describes setting the trigger function. The trigger function can be set
to start or end measurement when a set condition is satisfied. The following sig-
nals (trigger sources) are available for applying triggers. Triggers are ignored
during recording operation.
The following sections show the relation with repeat recording during the simul-
taneous use of timer measurement and triggers.
Normal recording operation
When measurement stopped within recording period
When measurement start time is set for timer measurement
5.5 Setting the Trigger Function
Trigger Sources Explanations
Analog trigger
(p. 114)
A trigger is applied by an input signal of an analog channel.
(Level trigger, window trigger)
Logic trigger
(p. 117)
AND/OR is set for the input signal (1/0/x) of a logic channel in
order to apply a trigger when the condition is satisfied.
External trigger
(p. 113)
A trigger is applied by an input signal of the SMPL/TRIG termi-
nal (external control input terminal).
The trigger setting is invalid if synchronized measurement is not performed with
at least two instruments.

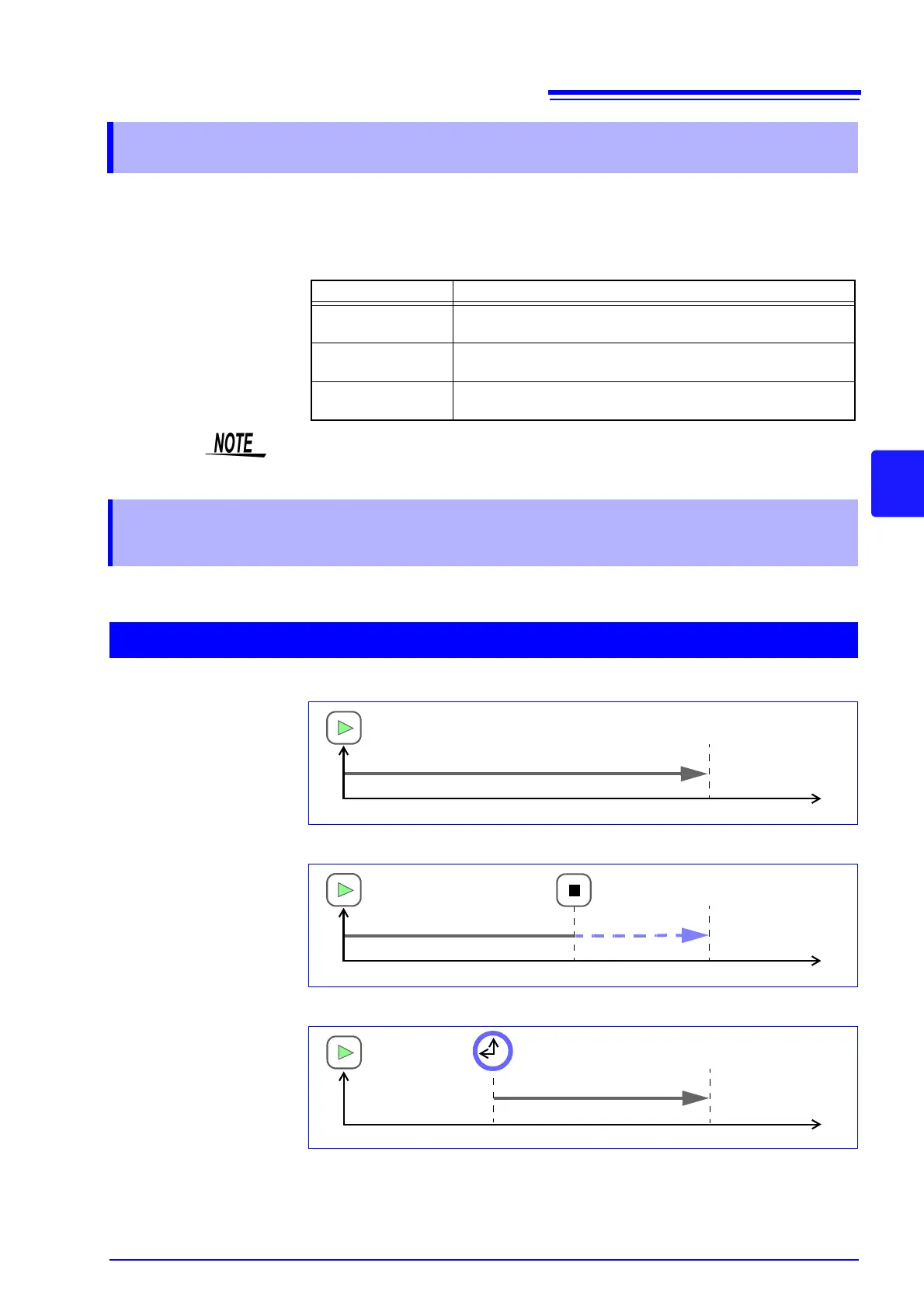

5.5.1 Recording Operation during Simultaneous Use
of Timer Measurement and Triggers
Repeat Recording Off
Recording period
Stop meas.
Recording operation
Start
button
Start meas.
Time
Stop
button
Recording period
Stop meas.
Recording operation
Start
button
Start meas.
Time
Start meas.
Start
button
Start time
Stop meas.
Recording operation
Recording period
Time
