5.5 Setting the Trigger Function
106

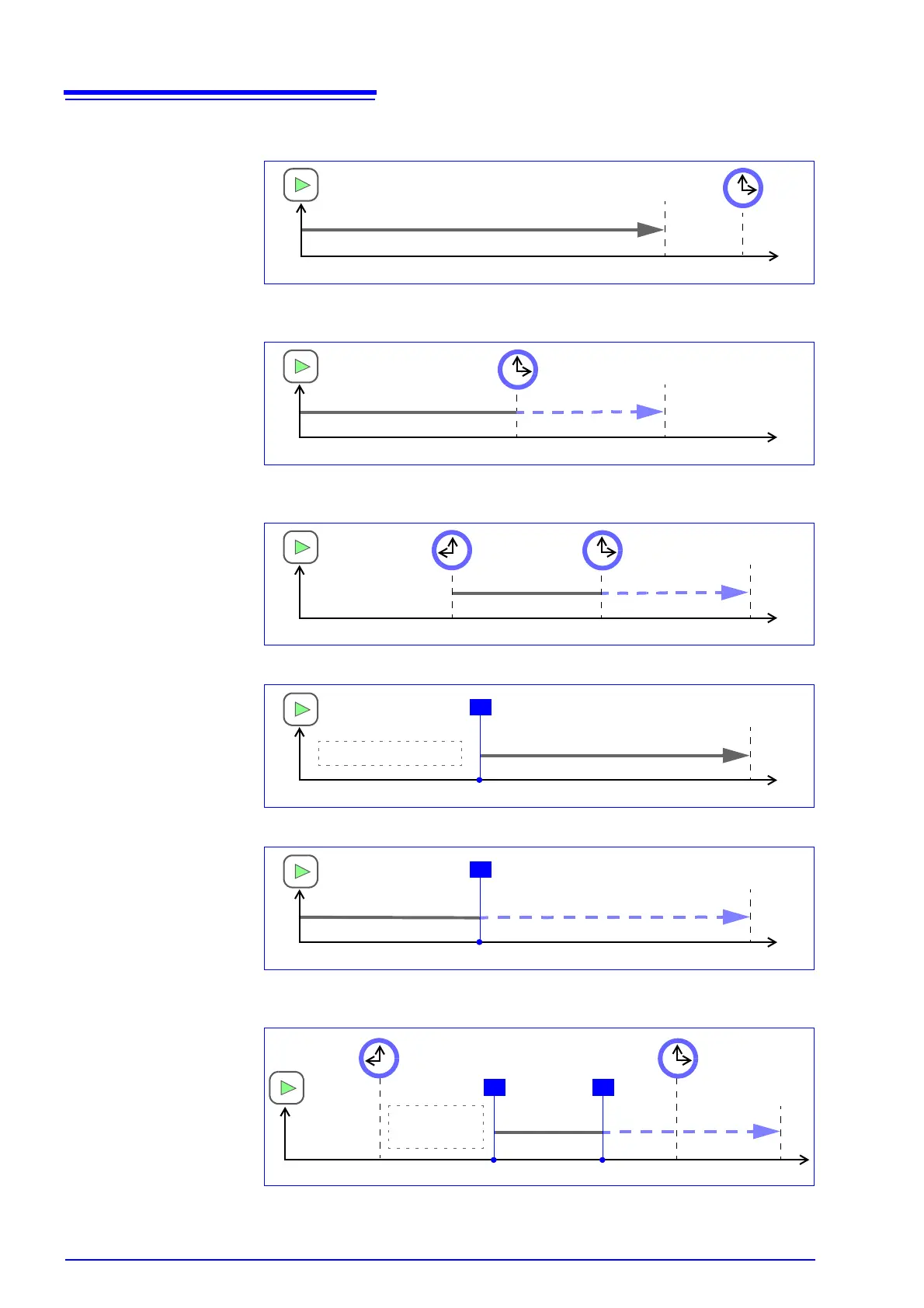

When measurement stop time is set after recording period for timer measure-
ment
When measurement stop time is set within recording period for timer measure-
ment
When measurement start time is set for timer measurement and stop time is set
within recording period
When start trigger is set
When stop trigger is set and stop trigger is applied before recording period
When start trigger is applied during timer measurement and stop trigger is
applied before measurement stop time
Start
button
Recording operation
Recording period
Start meas.
Stop meas.
Stop
time
Time
Start
button
Stop time
Recording period
Start meas.
Stop meas.
Recording operation
Time
Start
button
Stop time
Recording
period
Start meas.
Stop meas.
Recording operation
Start time
Time
Start
button
Recording period
Start meas.
Stop meas.
Recording operation
Waiting for trigger
Start trigger
T
Time
Start
button
Recording period
Start meas.
Stop meas.
Recording operation
Stop trigger
T
Time
Start
button
Waiting for
trigger
TT
Start time
Recording period
Stop time
Start meas.
Stop meas.
Start
trigger
Stop
trigger
Recording
operation
Time
