3.7 Connecting Synchronization Cables
48
Connecting multiple Memory HiLoggers with optional 9683 Connection Cables
(for synchronization) and using the supplied software Logger Utility to set syn-
chronized measurement allows you to synchronize the sampling of the loggers
and perform synchronized measurement with up to 600 channels. In such a
case, you can share trigger function and event mark information, as well as per-
form an external start, external stop, and synchronization by external sampling.
For external sampling, input a sampling signal to the master Memory HiLogger.
It is possible for multiple loggers connected by the 9683 Connection Cables (for
synchronization) to measure at the same timing.
* Master:
Generates a synchronization clock to adjust the sampling of slaves 1 to 4.

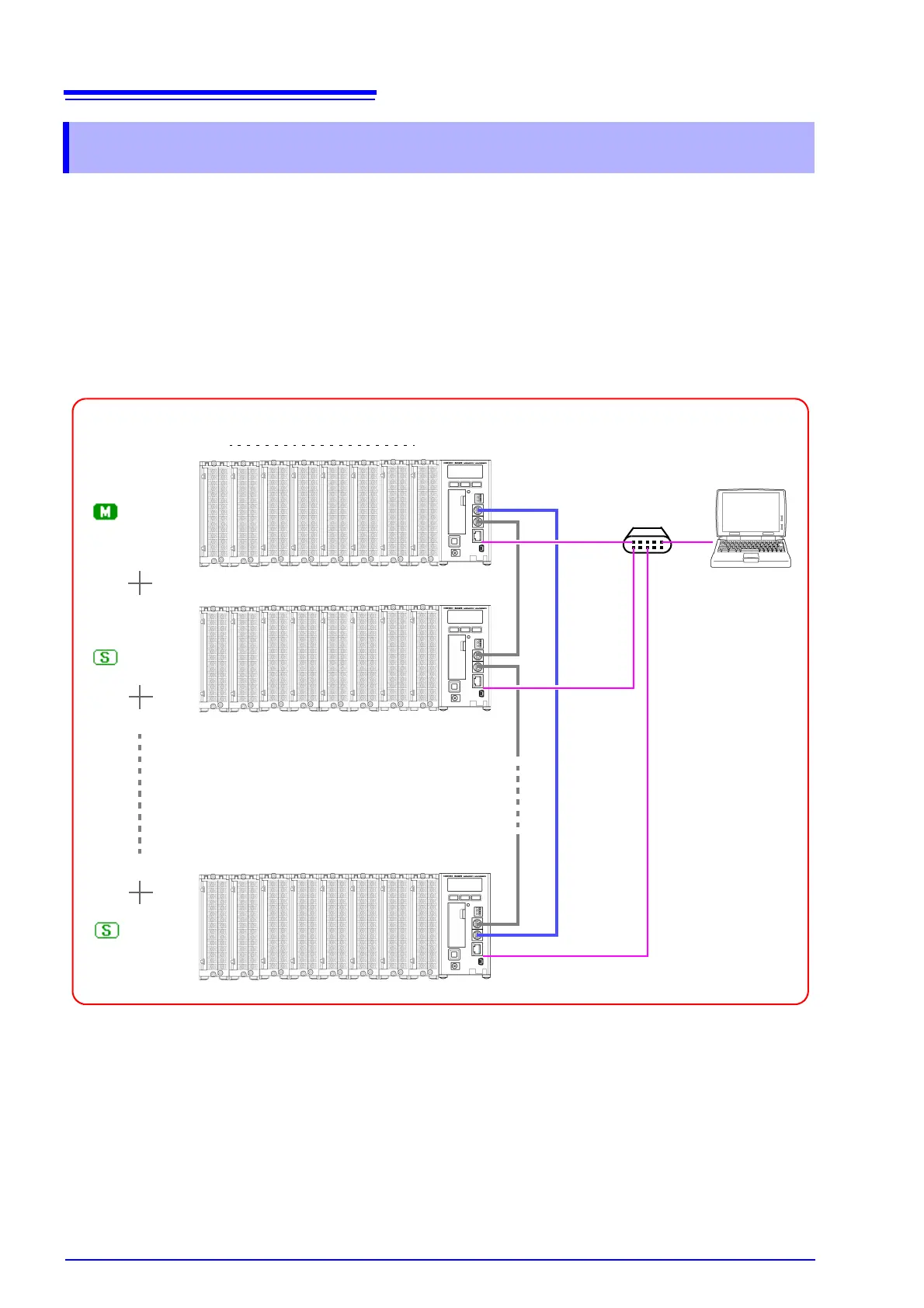

3.7 Connecting Synchronization Cables
Instrument 1
Instrument 2
Instrument 5
Model 9683 Connection Cable
(for synchronization)
Unit
1
8
OUT
IN
Master*
Slave 1
Slave 4
HUB
USB or LAN
To Next Page
