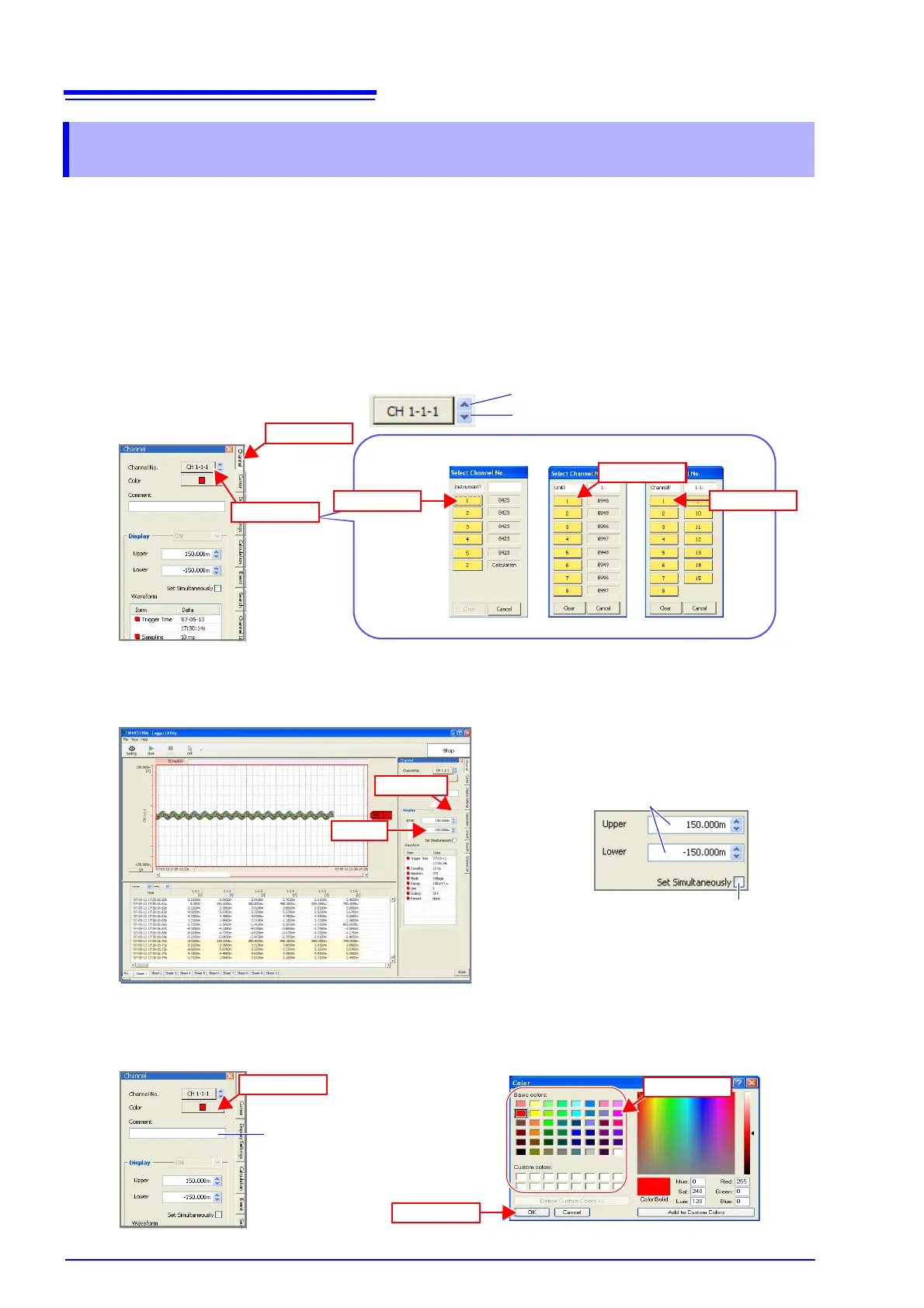

7.1 Changing the Waveform Display Range
140
Measurement data cannot be checked in the waveform display area if it goes out of the display range. In such
a case, change the display upper and lower limits on the
[Channel] tab. You can also change the waveform
color, comment, and other items.
1. Click the [Channel] tab on the right side of the main screen to open the settings window.
2. Select the channel for which to change the settings by selecting the instrument, unit, and then
channel.
3. Set waveform display to ON, and set the display upper limit and display lower limit.
When the sheet is ALL, the ON/OFF setting of display is not available.
4. If you want to change the waveform color, select the desired color from the [Color] dialog box.
Selecting a color that makes the waveforms easy to see is recommended.
7.1 Changing the Waveform Display Range
Up
Down
(1) Click
(2) Click
(3) Click
(4) Click
(5) Click
To directly input the display upper limit and lower limit
values, press the Enter key on the keyboard each time
after each value has been inputted to set it.
(1) Select
(2) Set
If you want to increase/decrease both the display up-
per limit and lower limit at the same time, add a check
here. If the scale difference between the upper value
and lower value is large, the values may not be able to
be increased/decreased at the same time.
(Gauge display is ON in this figure)
(1) Click
Comment input field (optional)
(3) Set
(2) Select
To Next Page
