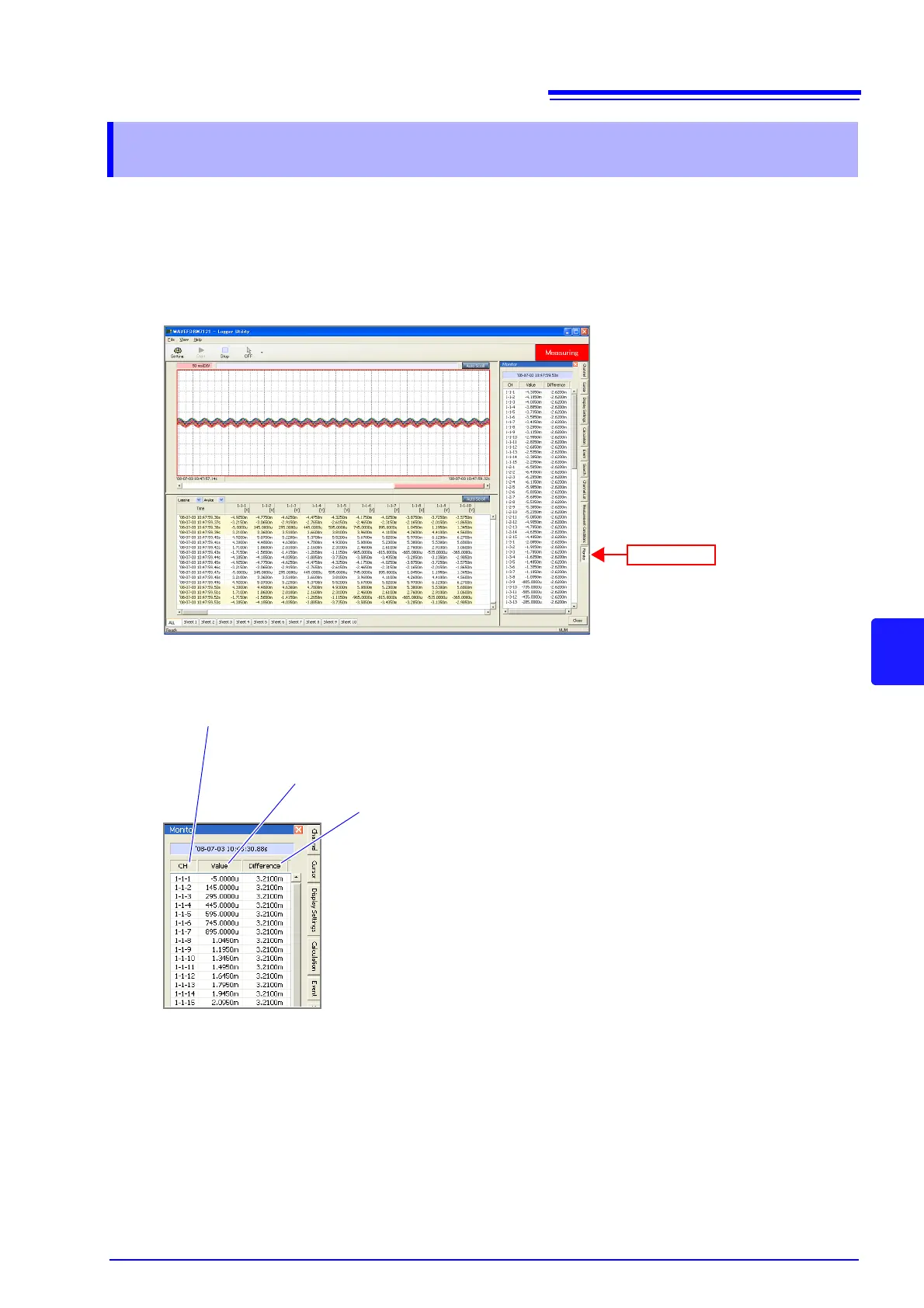

7.9 Monitor Display
161
7
Chapter 7 Analyzing Measurement Data
Instantaneous values of each channel are displayed in real time as digital values. The [Monitor] tab is only dis-
played during measurement.
1. Click the [Monitor] tab on the right side of the main screen to open the display window.
2. Confirm the instantaneous values of each channel.
If there is no data for the low-speed unit at the latest position during dual sampling, the last measured
data is displayed. In such a case, the character background is gray.
7.9 Monitor Display
This indicates the differences between the current measurement values and
those of the sampling immediately before.
This indicates the channel number.
This indicates the current measurement values. The values are updated as needed at the
set update time. When the display is logic, "1" is displayed when in the HIGH state, and
"0" when in the LOW state.
To Next Page
