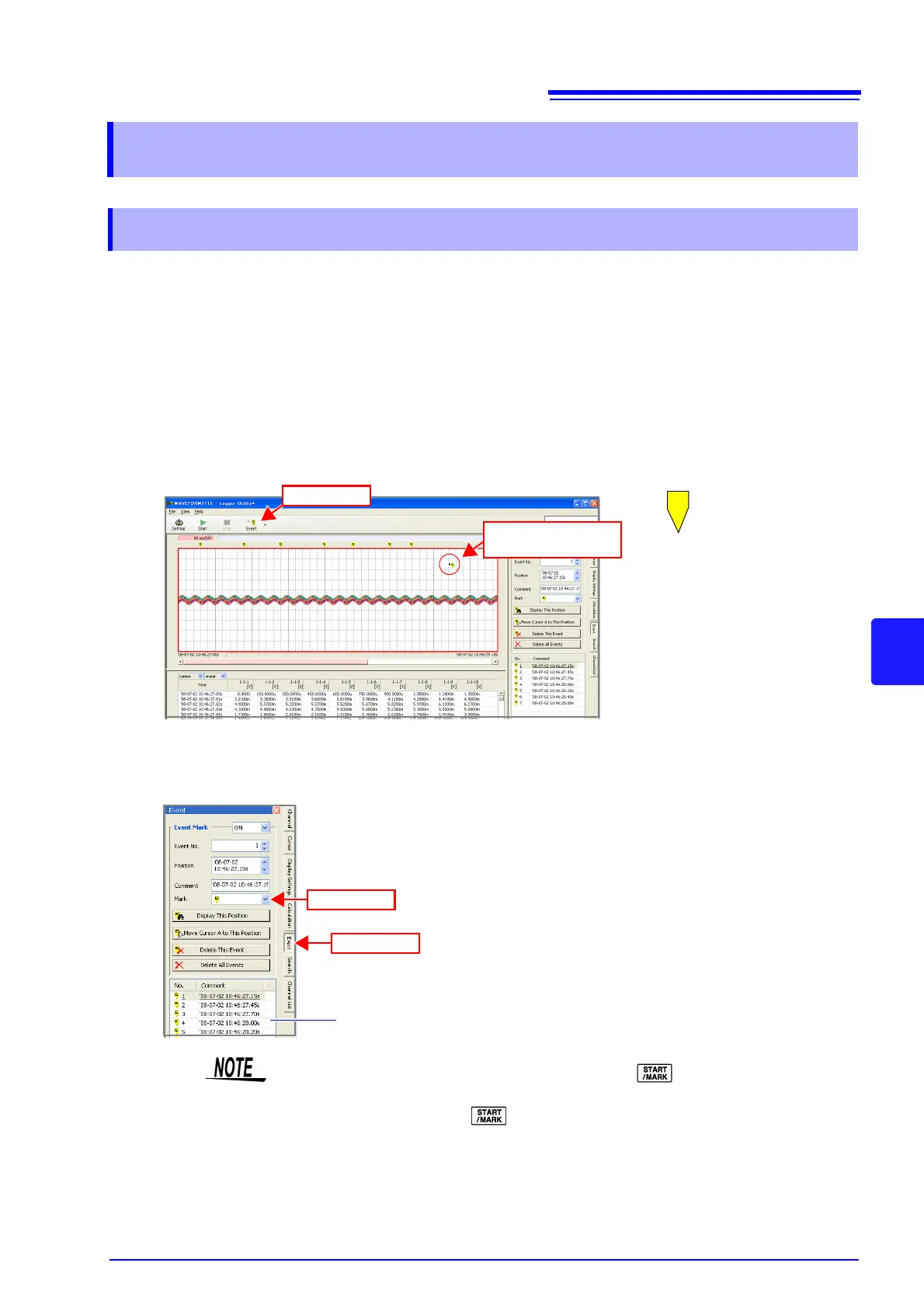

7.5 Event Mark Function
153
7
Chapter 7 Analyzing Measurement Data
You can use the event mark function to add an event mark to any portion of a waveform.
1. Switch the mouse operation button of the tool buttons to [Event].
If the icon is not the event mark, click the type of event mark (No. 1 to No. 20) you want to insert from
the menu for [Insert Event Mark].
2. Moving the mouse cursor within the waveform display area and clicking the mouse on the
location you want during measuring or after measuring will display the event mark at the top
part of the waveform display area.
3. If you want to change the illustration of the event mark to be inserted, click the [Event] tab and
select an illustration.
7.5 Event Mark Function
7.5.1 Adding a Mark (Event Mark) to a Waveform
(1) Click
(2) Click inside the
waveform display area
E
Event
Mark
• You can also add an event mark by pressing on the logger during mea-
surement. If there are already 100 event marks added, Logger Utility is not
notified of an event if is pressed.
• The maximum number of event marks that can be saved to the logger unit is 100.
• The maximum number of event marks that can be saved with Logger Utility is
1000.
• The logger main unit is not notified of an event mark that is inserted with Log-
ger Utility.
(2) Select
Event Mark List
(1) Click
To Next Page
