3.3 Installing the Memory HiLogger
41
7
3
Chapter 3 Setting Up the Instrument
You can use the DIN rail mounting groove on the rear of the instrument to secure
the instrument to a 35 mm wide DIN rail.
1. Secure the DIN rail to a wall or other surface.
2. Turn off the power of the unit.
Disconnect any connected cables.
3. Pull up the levers on the rear of the instrument and unit.
4. Hook the hooks at the top of the DIN rail mounting groove on to the DIN rail
and push in the bottom.
5. Push up the levers until they click into place.
When you want to unmount the instrument from the DIN rail, perform the mount-
ing procedure in the reverse order.

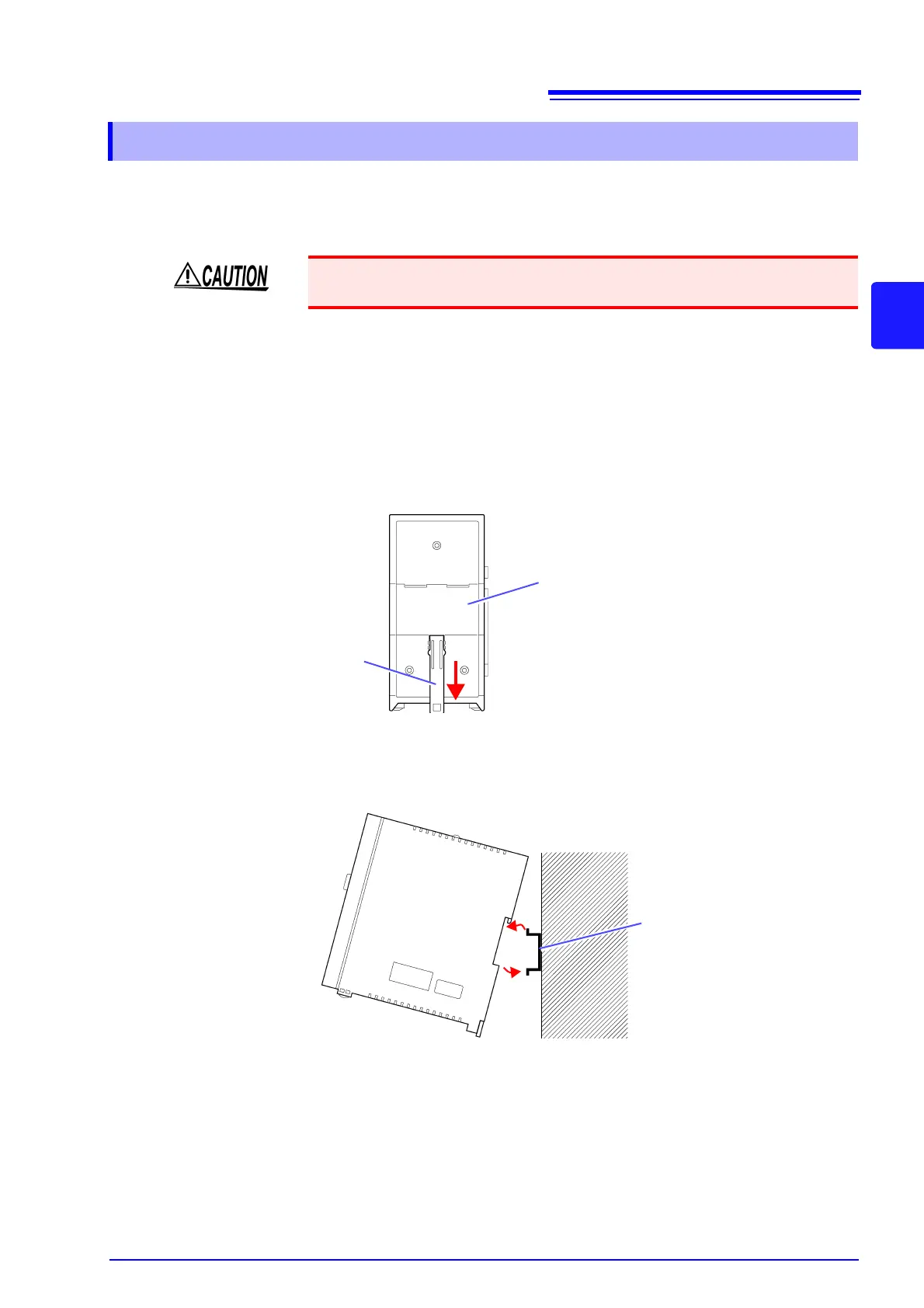

3.3.2 Securing with a DIN Rail
To avoid damage to the instrument as a result of it falling, do not apply excessive
force on the instrument from above.
Lever
DIN Rail Mounting Groove
(The figure shows the 8423 Memory HiLogger
main unit.)
To Next Page
