3.3 Installing the Memory HiLogger
40
The following three installation methods are possible.
When mounting to a wall surface, use screws to secure the instrument. Secure it
to a wall surface of sufficient strength.
1. Turn off the power of the unit.
Disconnect any connected cables.
2. Refer to the figure below and create mounting holes in the wall surface.
3. Insert the screws from the back side of the wall surface and secure the
instrument with the nuts on the rear of the instrument.
Use M3 screws of a length equivalent to the thickness of the board plus no more
than 5 mm.
Tighten the screws to no more than 0.6 Nm.

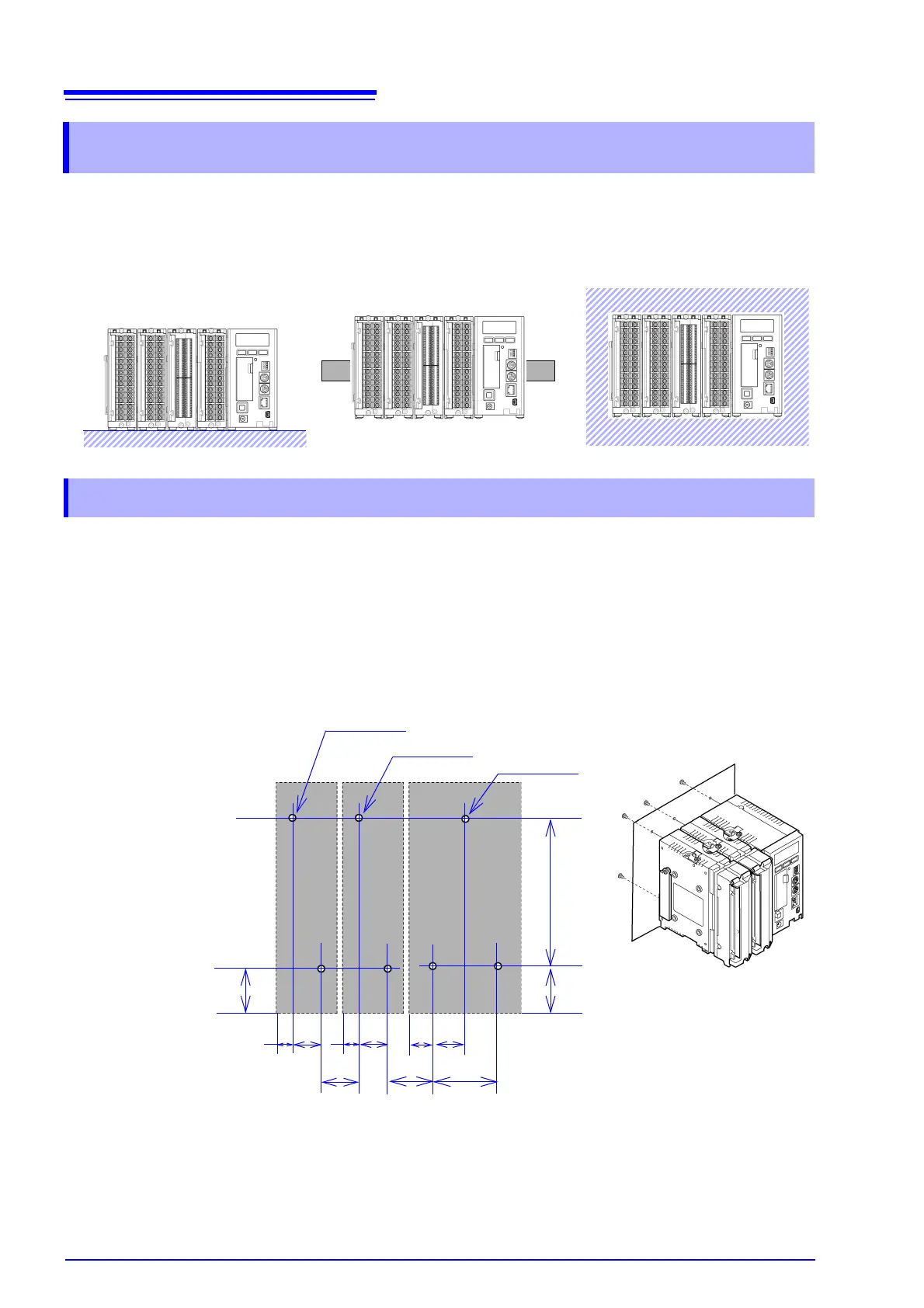

3.3 Installing the Memory HiLogger
(1) Place on a flat surface
(2) Mount to a DIN rail
(3) Mount to a wall surface with
screws
3.3.1 Mounting to a Wall Surface with Screws
3-φ4
2-φ4
2-φ4
88
23.5
21.5
39
26.4
18.8
17.217.2
9.4 9.4
19.5
14
Unit: mm
Model 8423
Unit
Unit
