1.3 Names and Functions of Parts
12
1.3 Names and Functions of Parts

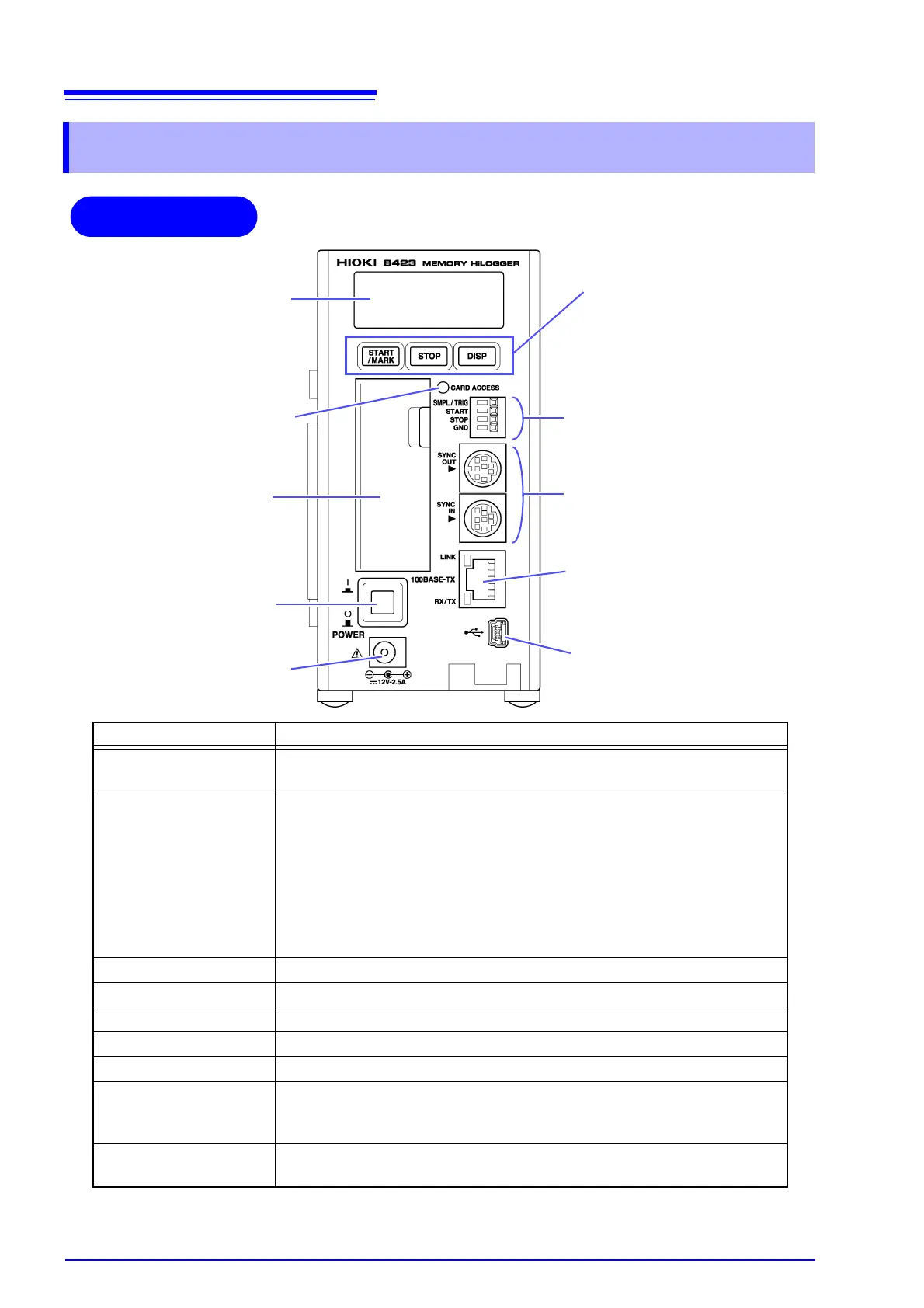

CF card slot
Power switch
Front Panel
AC adapter connector
CF card access LED
External control input terminals
Synchronization cable connectors
100BASE-TX connector
USB connector
Display
Key operations
(See the next page)
Names of Parts Explanations
Display
Displays setting values, measurement values, error messages, warning
messages, and other information.
CF card access LED
• When the cover is open:
Off: The CF card can be ejected.
Lit red: The CF card cannot be ejected because data is being written.
• When the cover is closed:
Off: A CF card is not inserted or recording is not possible because the
CF card cannot be recognized.
Lit green: A CF card is inserted and recording is possible.
Lit red: The CF card is being read or written.
CF card slot Allows for a CF card to be inserted for saving measurement data.
Power switch Turns the power ON/OFF.
AC adapter connector Allows for a 9418-15 AC Adapter to be connected.
USB connector Allows for a USB cable to be connected.
100BASE-TX connector Allows for a 9642 LAN Cable to be connected.
Synchronization cable
connectors
Allows for connecting optional 9683 Connection Cable (for synchroniza-
tion) when you want to perform synchronized measurement with multiple
Memory HiLoggers.
External control input
terminals
Allows for controlling the instrument by inputting a signal from an external
device.
