7.2 Checking Cursor Values
141
7
Chapter 7 Analyzing Measurement Data
You can use both cursors (cursors A and B) to check measurement values.
1. Click the [Cursor] tab on the right side of the main screen to open the settings window.
2. Add a check for the cursor to use to display the selected cursor in the waveform display area.
3. Select the channels for cursor measurement, and then scroll the cursor to display measure-
ment values.
When the mouse operation button is , you can move the mouse to a cursor on the screen to
display the ⇔ mark, and then move the selected cursor by dragging. When the mouse operation but-
ton is or , clicking on the screen moves the cursor to the clicked position.
7.2 Checking Cursor Values

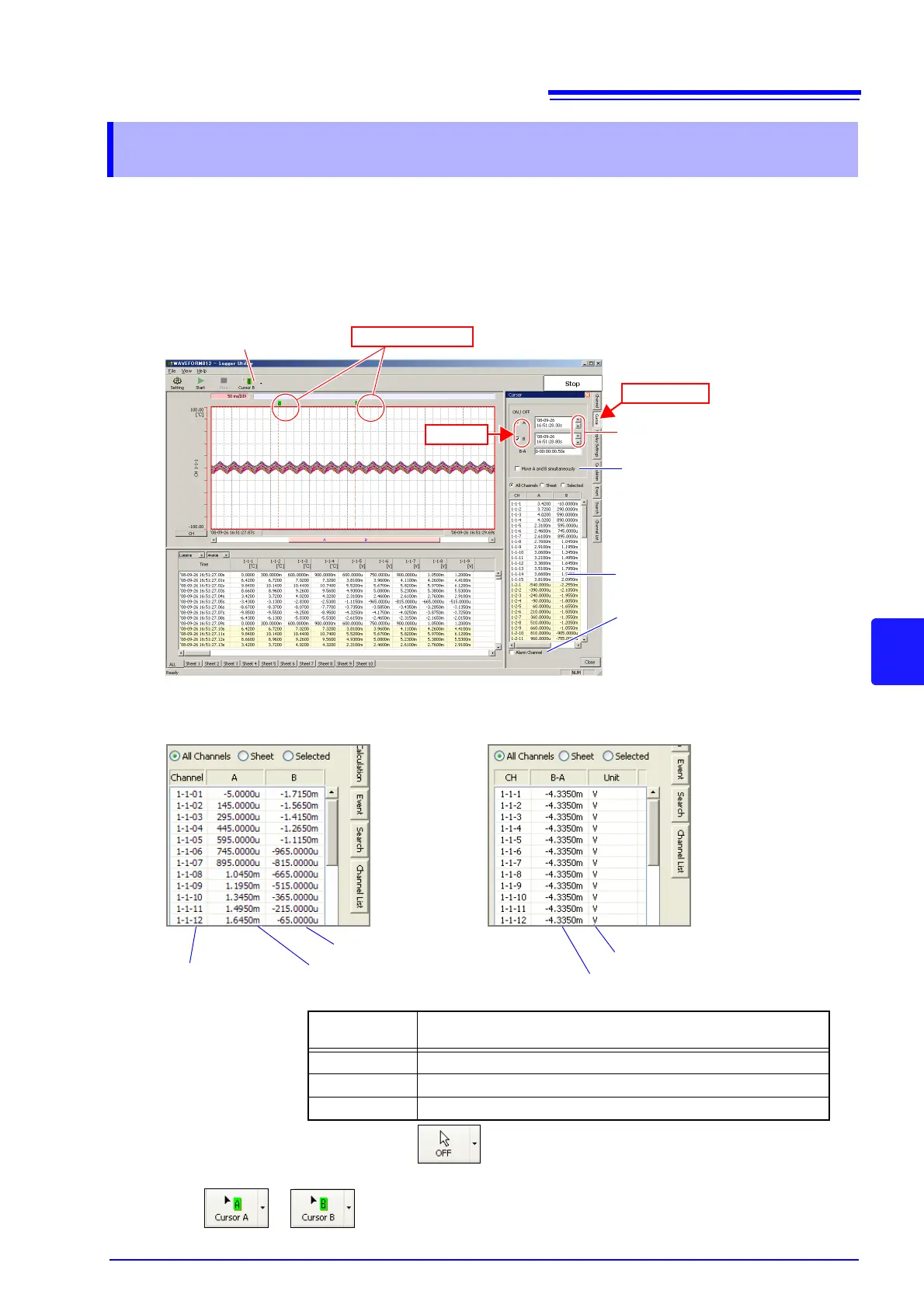

(1) Click
(2) Select
Click here when you want to move
both cursor A and cursor B at the
same time. You can also directly
move a cursor on the waveform
screen.
Cursor measurement values
Change the cursor position.
Mouse operation button
(3) Cursor display
When checked, the conditions of the
alarm channel will also be displayed
on the list.
1: Alarm activated
0: Alarm not activated
Channel numbers
Cursor A measurement values
Cursor B measurement values
Difference in measurement values be-
tween cursors A and B.
Unit
When the knob of the
scroll bar below the list
is moved, the differ-
ence in measurement
value between cursors
A and B will be dis-
played.
Selectable
Items
Explanations
All Channels Display the values of all channels.
Sheet Display the values of channels in the sheet currently displayed.
Selected Display the values of the selected channel.
