5.3 Configuring Basic Settings for Measurement
85
5
Chapter 5 Setting Measurement Conditions
The following three types of recording method are available. It is also possible to
measure in combination with timer measurement in order to specify a measure-
ment start time and stop time. Make sure the current time of the computer is cor-
rect before you configure this setting.
Triggers are ignored during recording operation. For the relation between timer
measurement and triggers, see "5.5.1 Recording Operation during Simulta-
neous Use of Timer Measurement and Triggers" (p. 105).
1. On the measurement settings page, set [Continuous] (continuous record-
ing) and [Repeat] (repeat recording) to OFF, and set the recording period.
Each click of the button toggles the setting ON and OFF.
In the case of normal sampling and dual sampling
In the case of external sampling
2. Start measurement to measure for the set recording period.
If the
[Stop] button is pressed before the recording period has elapsed, measure-
ment ends.

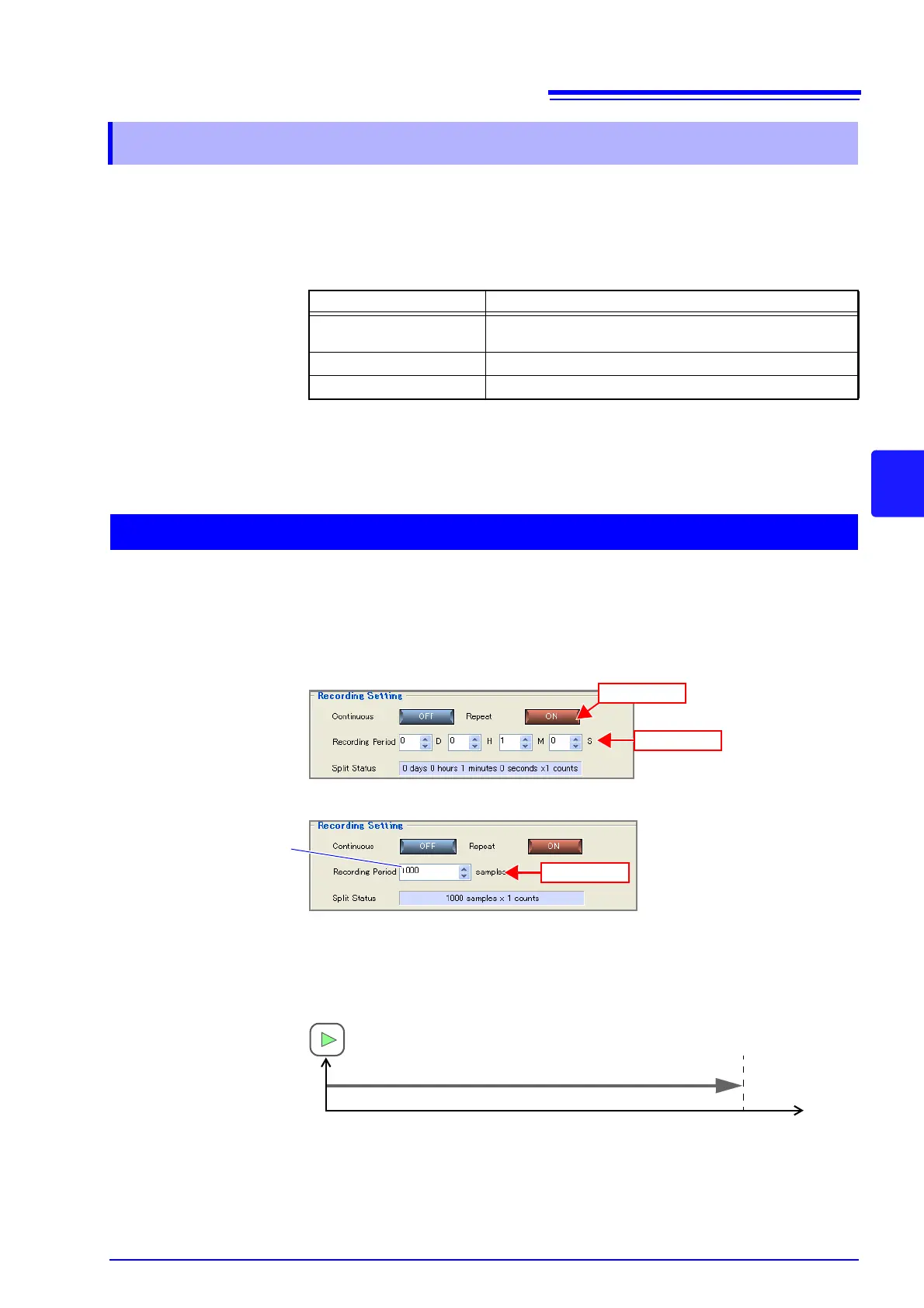

5.3.4 Recording Settings
Types of Recording Explanations
Normal Recording
Measures from the start of measurement for the set record-
ing period.
Continuous Recording Measures continuously from the start of measurement.
Repeat Recording Measures while splitting data each recording period.
Normal Recording
(2) Set
(1) Click
Set
Maximum recording
(maximum: 10,000,000
samples)
End of
measurement
Recording period
Recording operation
Start
button
