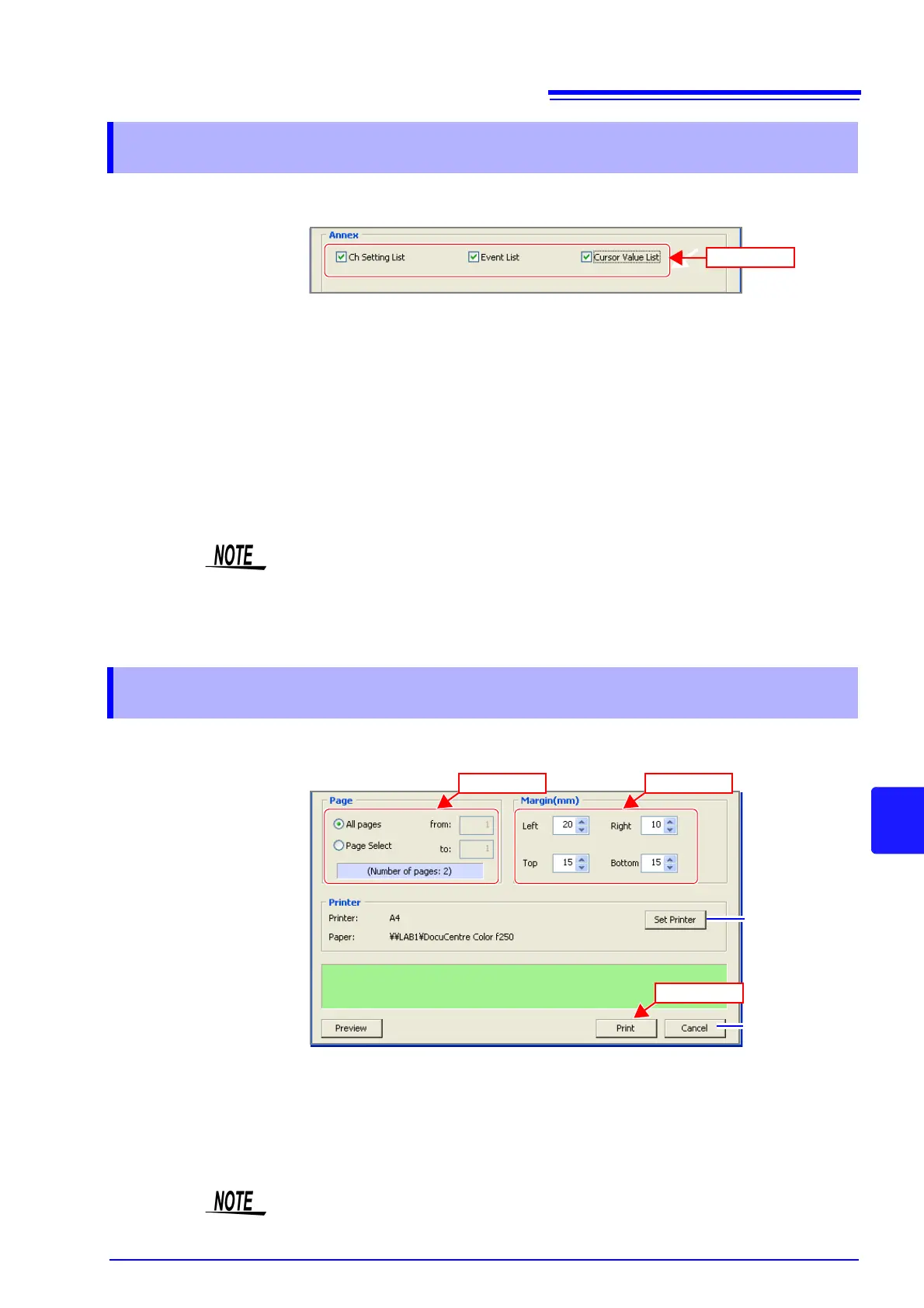

9.3 Settings for the Appendix
179
Chapter 9 Printing
9
To select the list content to be printed on the Appendix.
Ch Setting List:
Prints the list of Unit type, Channel number, Waveform display color, Range,
Input type, Display/DIV, Filter settings, and Comments.
Event List:
Prints the list of Event Numbers, Event Positions, and Comments.
Cursor Value List:
Prints the list of Cursor A Measurement Values and Cursor B Measurement Val-
ues, Difference in measurement value between cursors A and B, Maximum
value, minimum value, and average value between cursors A and B.
Set the page(s) to be printed and the margin(s).
1. Set the page to be printed, and the upper, lower, left and right margins.
2. Click the [Print] button to start printing.
9.3 Settings for the Appendix
• When the cursors A/B are not displayed in the waveform display portion, the
Cursor Value List will not be printed. Make sure to display cursors A/B before-
hand (p. 141).
• Only the cursor measurement value will be printed when there is only one cur-
sor in the waveform display portion.
9.4 Printer Settings/Printing
(1) Set (2) Set
(3) Click
Click to set print-
er and paper
when necessary.
Click to cancel
printing.
Paper size and margin setting may lead to the instrument printing inaccurately.
To Next Page
