Chapter 5 Setting Measurement Conditions
A trigger can be applied from an input signal of the SMPL/TRIG terminal (exter-
nal control input terminal). Set an external trigger for each logger. For details on
the signal input conditions of the SMPL/TRIG terminal, see "5.7.1 Setting Exter-
nal Control Input Terminals" (p. 121).

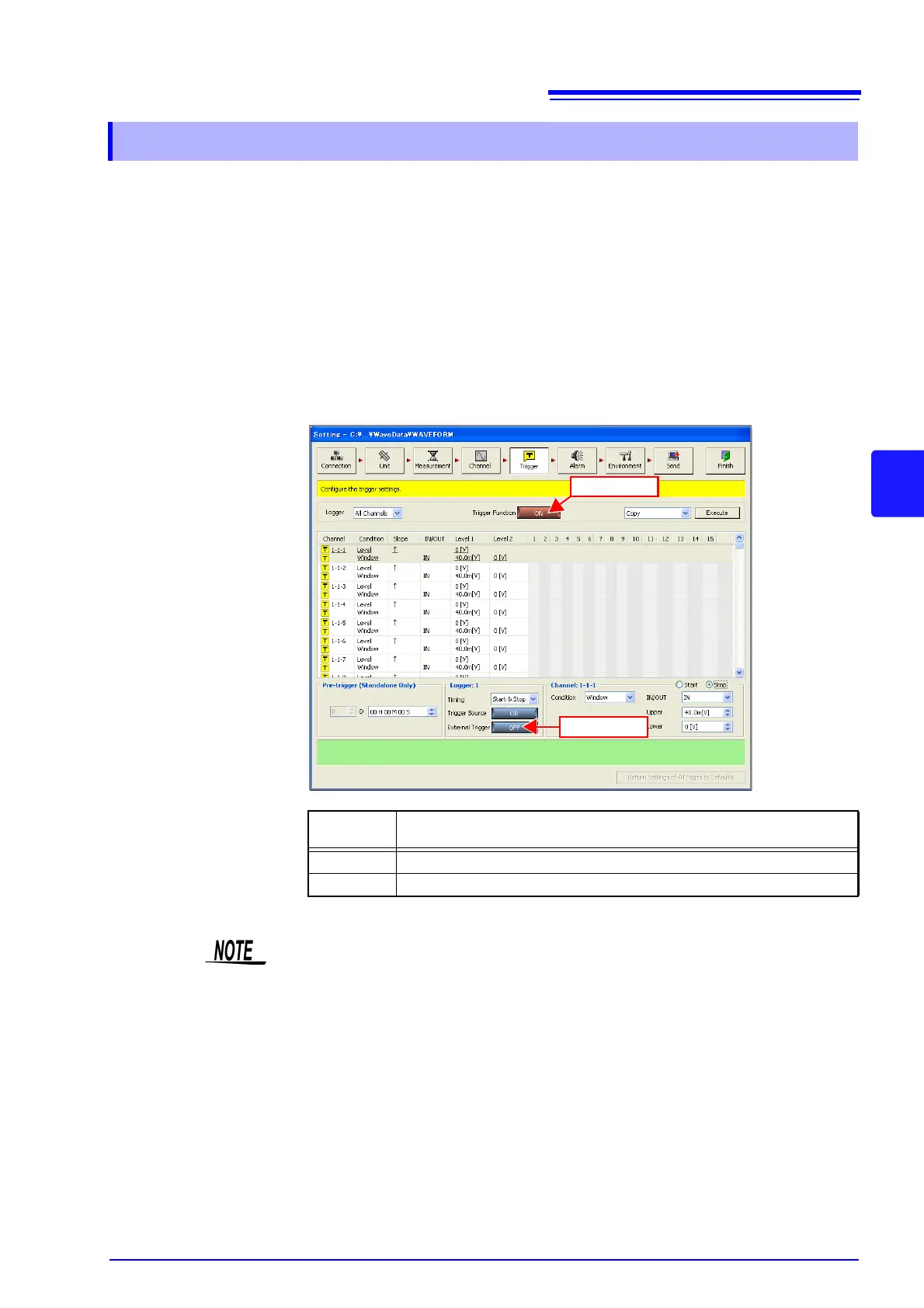

1. Set the trigger function on the trigger settings page to ON.
Each click of the button toggles the trigger function ON and OFF.
2. Select the external trigger.
Each click of the button toggles the external trigger ON and OFF.
5.5.5 External Triggers
Selectable
Items
Explanations
OFF The external trigger is disabled.
ON The external trigger is enabled.
(1) Click
(2) Click
If the measurement function is set to "External Sampling," the external trigger
cannot be used.
