Hioki 8423 - Waveform Calculation Settings

5.4 Advanced Settings for Each Channel
96
The measured data is calculated with preset arithmetic expression to display the
waveform. (Calculation is allowed during or after measurement)
Four arithmetic operations (+, -, * and /) are employed between channels. Calcu-
lation is allowed for calculation channel.
1. Click [Wave Calculation] tab.
2. Click [ON] button to turn on [Calculate Function].
Each click of the button switches between ON and OFF.
3. Select the channel to calculate.
4. Click [ON] button to turn on [Calculate].
Each click of the button switches between ON and OFF.
5. Click [Edit] button to display dialog box. Preset arithmetic expression and
click [Enter] button.
Up to 80 characters are allowed for arithmetic expression.

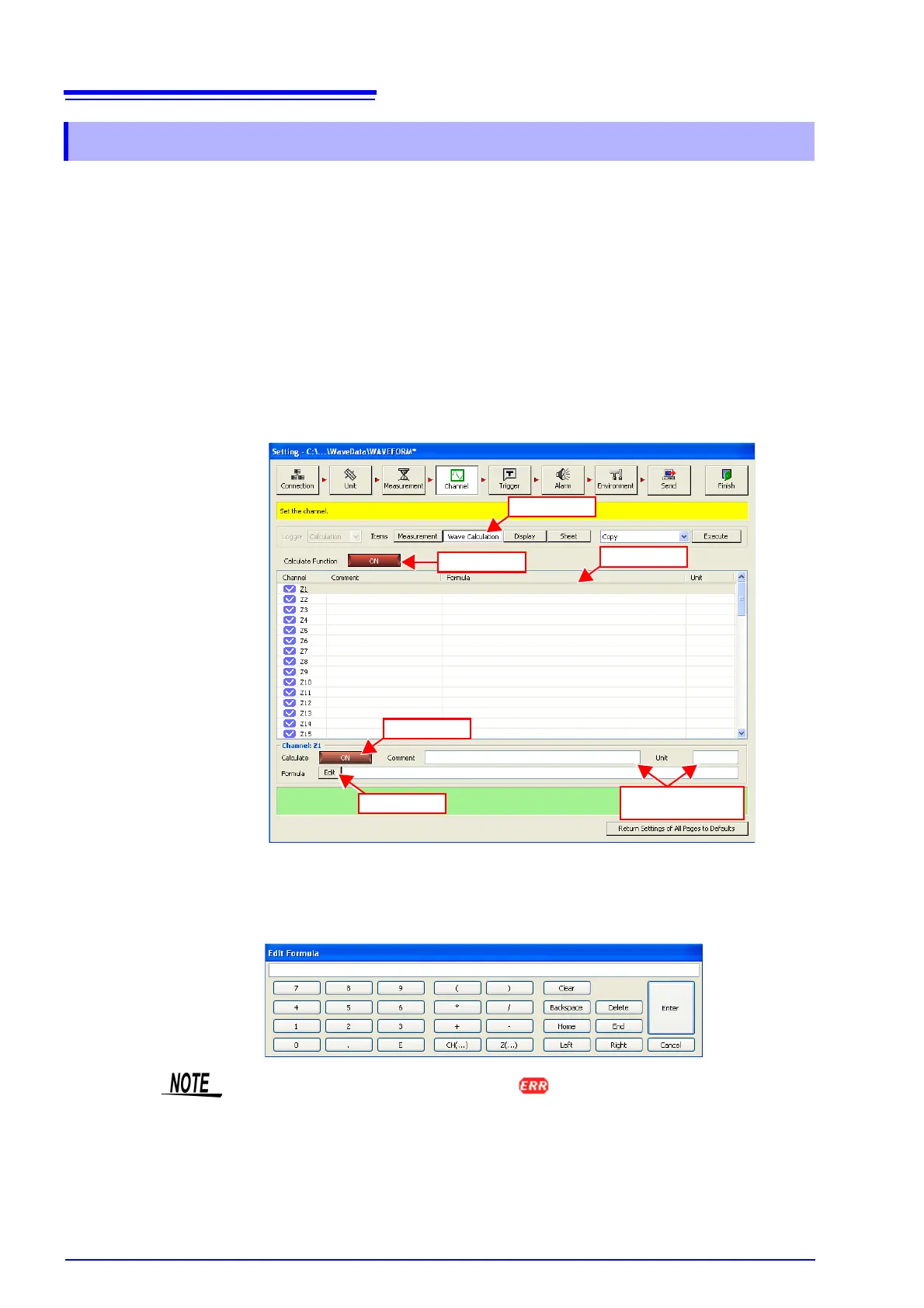

5.4.2 Waveform Calculation Settings
(1) Click
(2) Click
(3) Select
(6) Enter information
as required
(4) Click
(5) Click
In the following cases, an error icon will appear at the front of the calcula-
tion expression. Measurement cannot start when the error icon is displayed so
please enter the calculation expression again.
• After entering the calculation expression, the structure of the device changes
and the channel in the calculation expression cannot be referred to.
• The calculation expression of a high speed channel is combined with the cal-
culation expression of a low speed channel in dual sampling.
