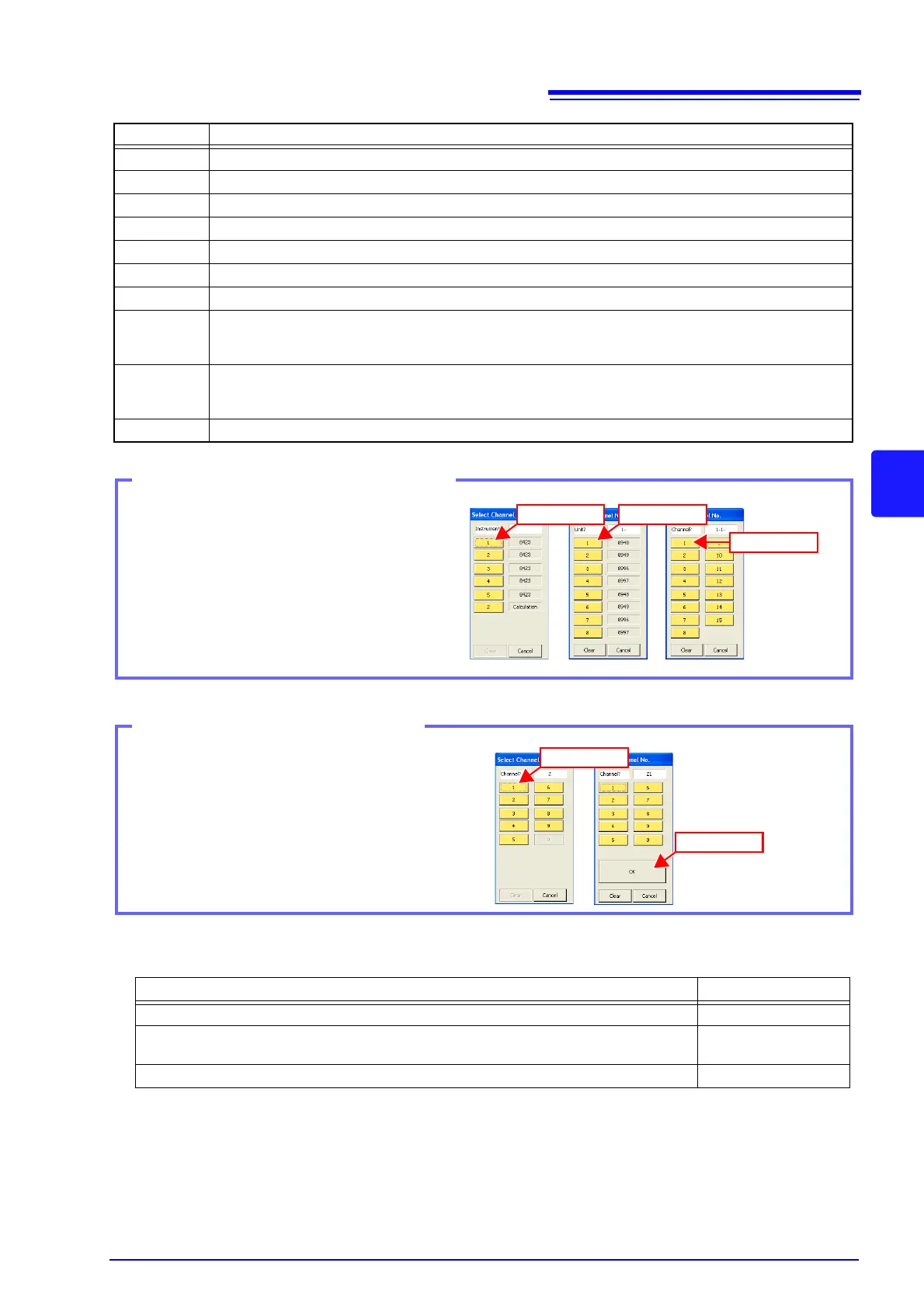

5.4 Advanced Settings for Each Channel
97
5
Chapter 5 Setting Measurement Conditions
Sample arthmetic expression
6. Enter unit and comment as required.
Up to 7 characters for unit and up to 40 characters for comment can be entered.
Key Description
Clear Erase the arithmetic expression totally.
Backspace Erase the character preceding the cursor one by one.
Delete Erase the character following the cursor one by one.
Home Moves the cursor to the head of the arithmetic expression.
← Moves the cursor left.
→ Moves the cursor right.
End Moves the cursor to the end of the arithmetic expression.
CH (...)
Displays the dialog box. (See "Selecting measurement channel".)
Select the measurement channel in the dialog box. Select device → unit → channel.
The selected channel reflects on the arithmetic expression.
Z (...)
Displays the dialog box. (See "Selecting calculation channel".)
Select the calculation channel in the dialog box. The selected calculation channel reflects on the calcu-
lation expression.
E To enter constant number with exponential. (Example: 10000→1E4)
(2) Click
(3) Click
(1) Click
Selecting measurement channel
Example: To select 8423 Device 1, Unit 1 and
Channel 1.
Selecting calculation channel
(2) Click
(1) Click
Example: To select Channel Z1.
* When a two-digit channel such as Z11 is entered,
it reflects on the arithmetic expression without
clicking
[OK].
Calculation
Arithmetic expression
"Measured value of Unit 3 Channel 3 in 8423 Device 1 "*3+6 3*CH(1,3,1)+6
"Measured value of Unit 1 Channel 9 in 8423 Device 2"*"Measured value of Unit 3 Channel
1 in Device 8423"
CH(2,1,9)*CH(1,3,1)
The result of arithmetic expression Z3"*5 Z(3)*5
