Hioki 8423 - Settings for Synchronized Measurement

5.1 Registering Loggers in Logger Utility
74
If you use special 9683 Connection Cables, it is possible to measure with the
sampling of multiple loggers synchronized. You can set a master to be the refer-
ence for sampling (base), and measure with up to five loggers synchronized.
With synchronized measurement, it is possible to perform measurement in which
a trigger is used among multiple loggers.
1. On the connection settings page, search and register or manually register
the loggers for measurement.
2. Add a check to [Synchronized Measurement] to enable synchronized mea-
surement.
A check cannot be added if only one logger is registered.
3. Set the logger to be the reference for sampling (master).
4. Click the [Test] button to display the synchronization test result.

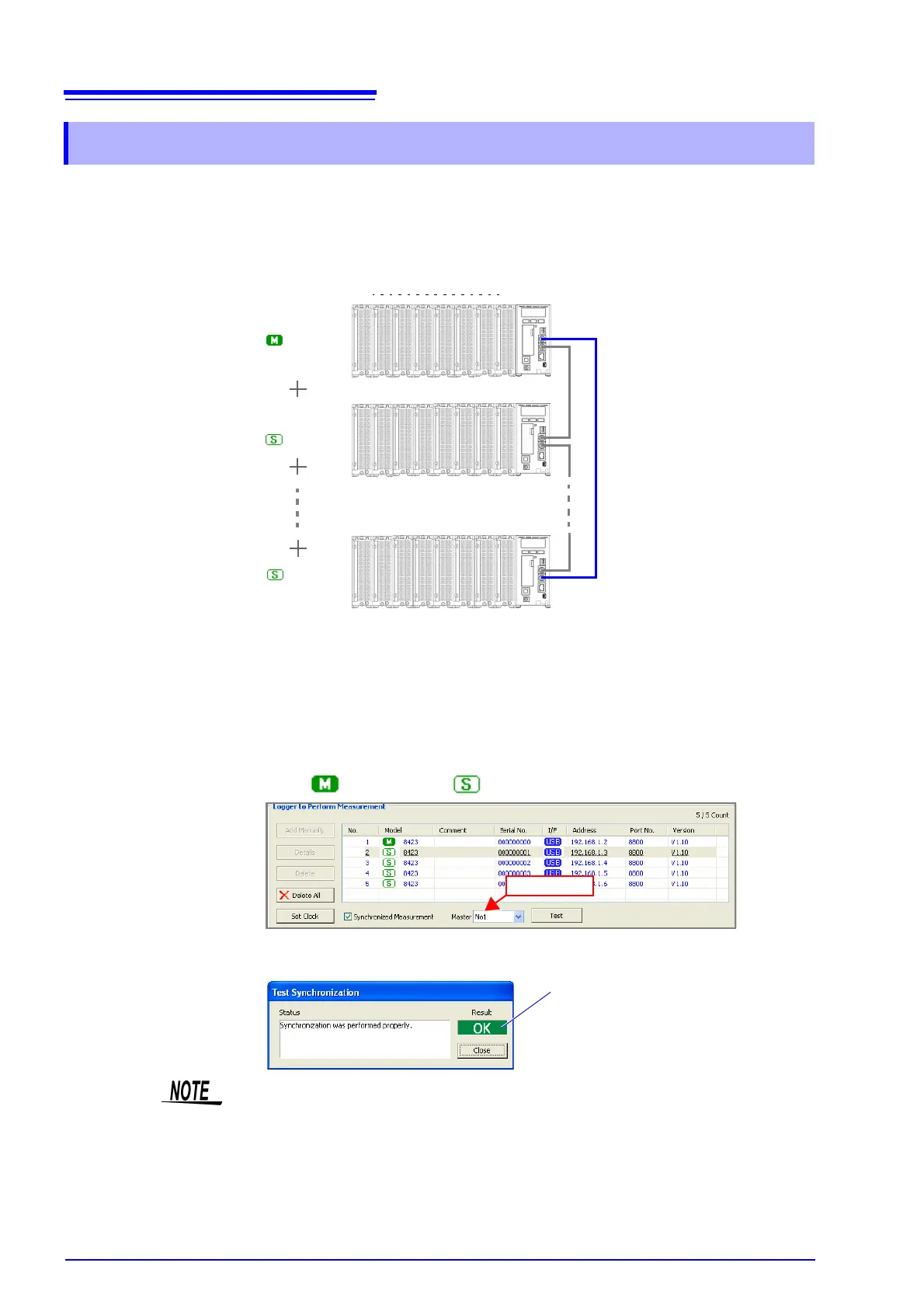

5.1.3 Settings for Synchronized Measurement
Instrument 1
Instrument 2
Model 9683 Connection Cable
(for synchronization)
See "Connecting Synchroniza-
tion Cables" (p. 48).
Unit
1
8
OUT
IN
Master
*
Slave 1
Slave 4
Instrument 5
Select
: Master : Slave
Synchronization test result
OK: The loggers are connected properly.
NG: Check the connections of the 9683
Connection Cables according to the
status.
• Always connect the 9683 Connection Cables when synchronized measure-
ment will be performed. Furthermore, do not connect 9683 Connection Cables
if there are six or more loggers. The loggers will not work properly.
• Synchronized measurement is not possible with only one logger.
• The trigger setting is invalid when synchronized measurement is not per-
formed.
