3.2 Connecting a Cable to the Terminal Block
35
7
3
Chapter 3 Setting Up the Instrument
Connect cables to the terminal block of a unit in accordance with the purpose of
use.
A terminal block can be removed to enable the cable to be easily connected.
(You can also connect the cable while the terminal block is attached.)
1. Turn off the power of the unit.
Disconnect any connected cables.

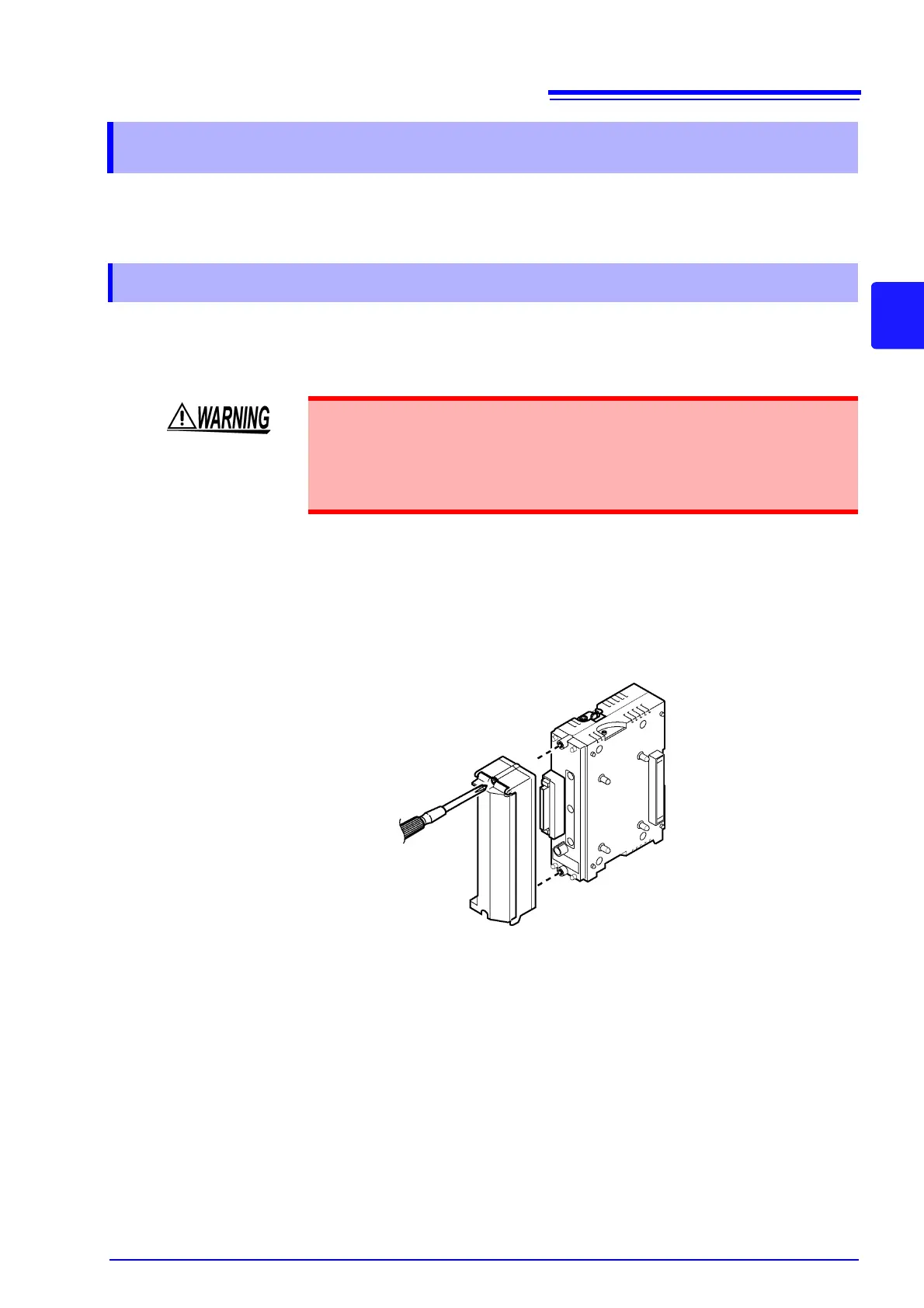

2. Loosen the screws at the top and bottom of the unit with the Phillips
screwdriver, and pull the front to remove the terminal block.
3. Connect the cable, and then attach the terminal block by performing the
procedure up to now in the reverse order.
Tighten the screws to no more than 0.6 Nm.
3.2 Connecting a Cable to the Terminal Block
3.2.1 Removing and Attaching a Terminal Block
To avoid an electric shock or short-circuit accident:
• Turn off the power of the instrument before removing and attaching the termi-
nal block.
• Never attach or remove the terminal block while the power of a measurement
object to which a cable is connected is on.
Phillips screwdriver
Terminal block
