3.1 Attaching Units
34

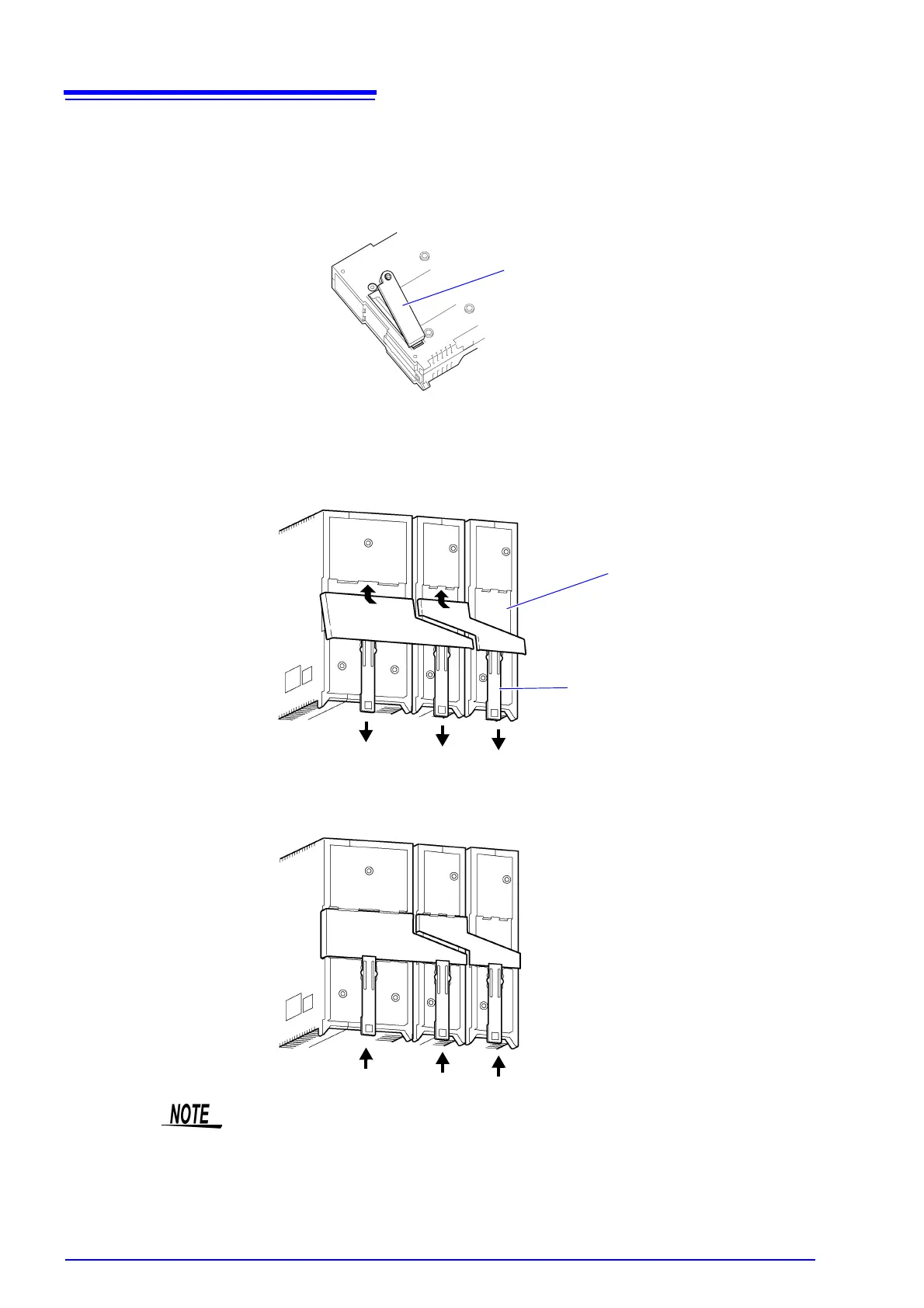

4. Attach the supplied connector cover to the unit on the very left side when
looking from the front.
Insert the protruding part of the connector cover into the connector opening of
the unit, close the cover, and then secure it in place with the screw. Tighten the
screw to no more than 0.6 Nm.
5. Pull down the levers on the rear of the instrument and unit, and hook the
connection plate on to the hooks at the top of the DIN rail mounting
groove.
6. Push up the levers until they click into place.
DIN Rail Mounting Groove
Lever
• When you remove the connection plate from the instrument, perform the
attachment procedure in the reverse order.
• When you secure the instrument to a wall surface or DIN rail, the connection
plate does not need to be attached.
