7.8 Confirming Measurement Conditions
160
Measurement conditions such as the start time, number of measurement data items, and memory usage sta-
tus are displayed in real time. The
[Measurement Conditions] tab is only displayed during measurement.

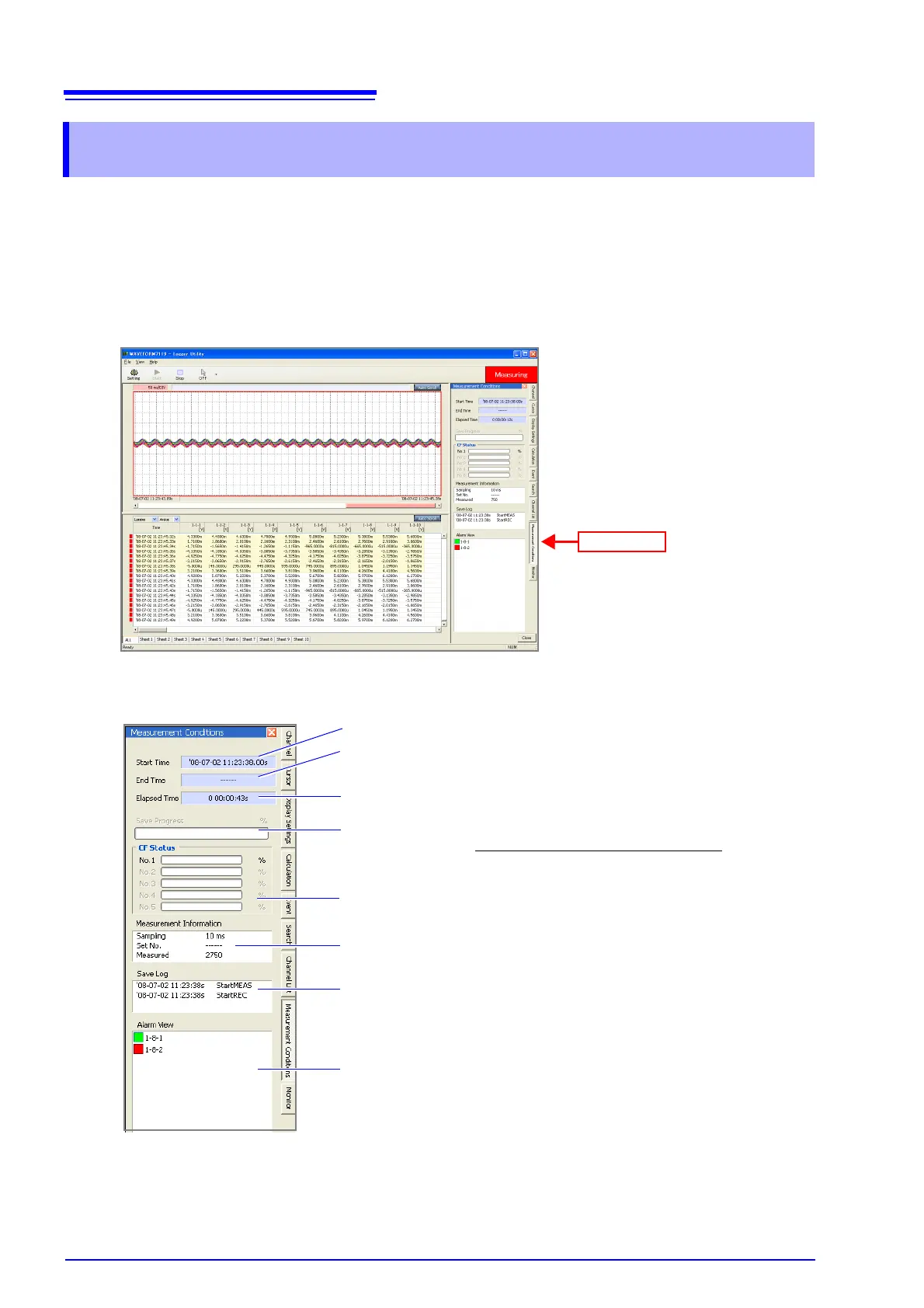

1. Click the [Measurement Conditions] tab on the right side of the main screen to open the dis-
play window.
2. Confirm various measurement conditions.
7.8 Confirming Measurement Conditions
Measurement start time
Scheduled measurement end time (This is not displayed when waiting for a
trigger, when external sampling, and when continuous recording.)
This area displays the sampling, number of setting data items, and number
of measurement data items.
The progress rate for saving data is indicated by a numerical value and bar.
Calculation formula
for progress rate
Number of measurement data items
Number of setting data items
x 100 [%]
This area displays the alarm output status in real time.
This area displays the warning status since the start of measurement.
Red: Alarm activated
Green: Alarm not activated
This area displays the save status since the start of measurement.
The CF card usage status is displayed in real time for each logger.
(Up to 5 loggers)
Elapsed time
