9.2 Settings for Waveform Print Options
178

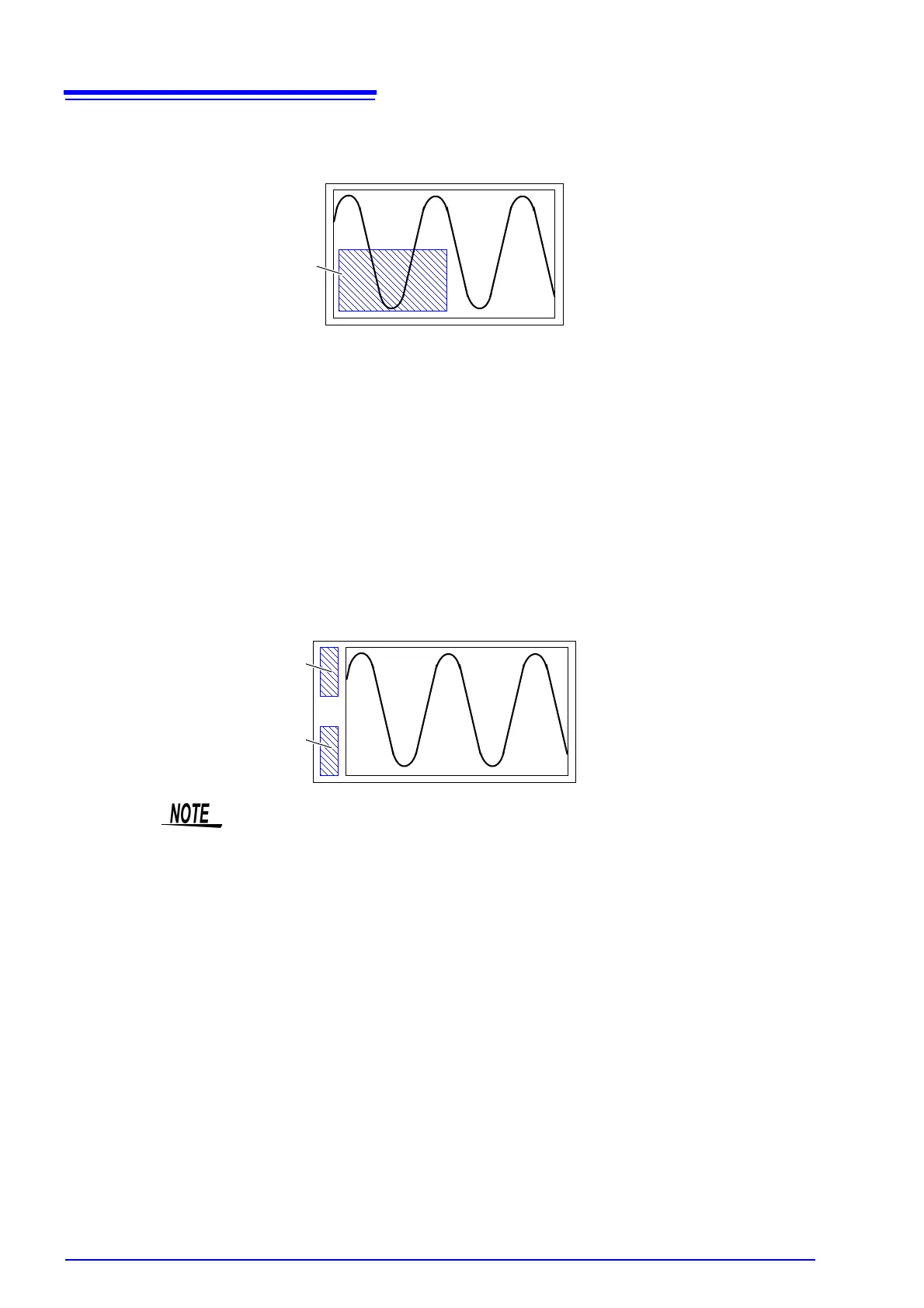

Ch info:
Prints the information of various channels in the waveform print area. (Not appli-
cable when [Print type] is set as [Print report] or [Specified interval])
• When [Print upper/lower limit values to the left of waveforms] is checked:
Channel number, waveform display color, unit type, input type, range, display/
DIV, filter setting, and comment will be printed.
• When [Print upper/lower limit values to the left of waveforms] is not
checked:
Channel number, waveform display color, range, upper/lower limit values, filter
setting, and comment will be printed.
Print black background as white:
Whitens the background for printing when the background of the waveform dis-
play portion is black. Waveforms that are white will be printed in black.
Print upper/lower limit values to the left of waveforms:
Prints the upper limit value at the top left side and the lower limit value at the bot-
tom left side of the waveform print area.
Upper
imit
Value
Lower
Limit
Value
• When [Print with comment] is checked, the Ch marker for channels without
any comment input will not be printed.
Be sure to click on the [Channel] tab found on the right side of the screen and
input comments within the setting window beforehand (p. 140).
• When gauge is not displayed in the waveform display portion, gauge will not be
displayed even if [Gauge] is checked. Make sure that gauge is displayed
beforehand (p. 145).
• When number of channel is many, the printer may not be able to print channel
information for all channels, and upper and lower limit values if there are too
many channels.
