7.3 Changing Display Settings
145
7
Chapter 7 Analyzing Measurement Data
Waveform
Background
Color
You can select black or white for the background color of the waveform display
area.
Gauge Display
Quantity
You can display a gauge (graduations) on the left side of the waveform display
area.
Selectable
Items
Explanations
ON
Display a gauge on the left side of the waveform display area.
When display of the gauge is ON, you can select a number from 1
to 8. The highest value is the display upper limit and the lowest
value is the display lower limit, and the settings can be changed on
the [Channel] tab.
OFF Do not display a gauge.

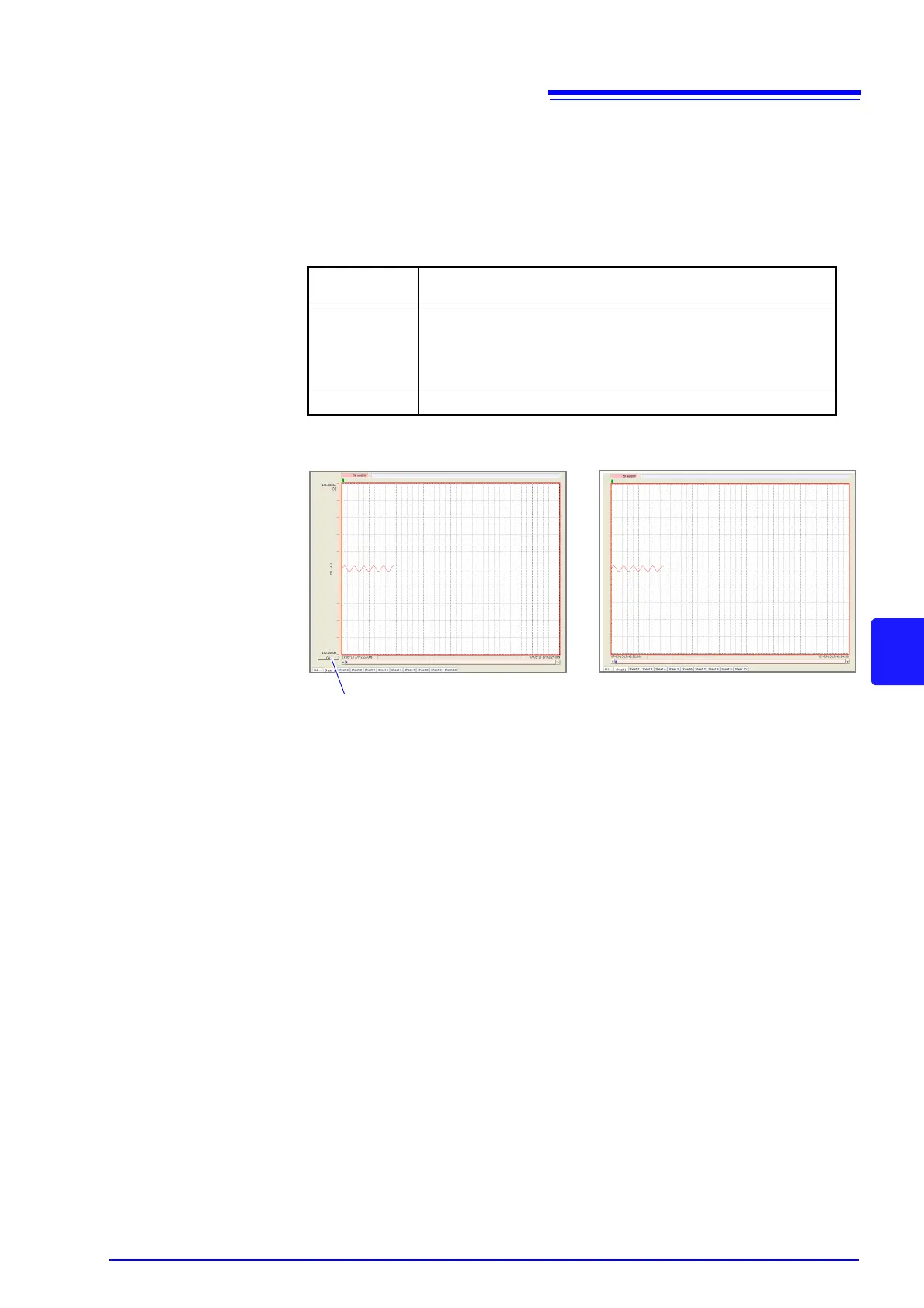

Display Gauge ON Display Gauge OFF
The channel for each gauge can be set by clicking the [CH] button displayed
at the bottom of the gauge.
