7.3 Changing Display Settings
144

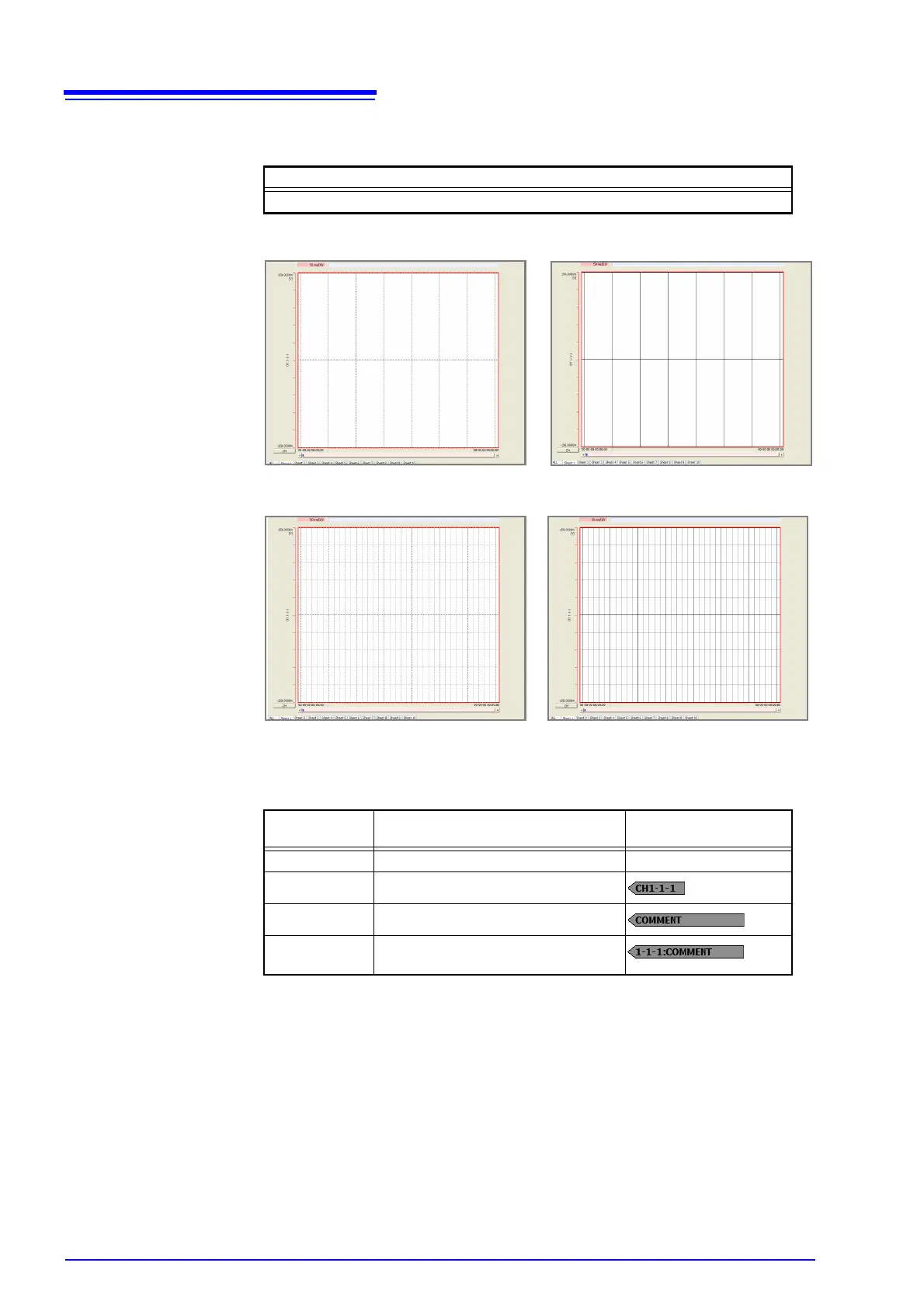

Display Grid You can select from the following grid types for the waveform display area.
CH Marker You can select the item to display on the right side of the waveform display area
from the following items.
If the comment is long, not all of the characters are displayed on the CH marker.
Selectable Items
None, Dotted Line, Solid Line, Fine Dotted Line, Fine Solid Line
Dotted Line
Solid Line
Fine Dotted Line
Fine Solid Line
Selectable
Items
Explanations Display Examples
OFF Do not display a channel mark. Non
CH Number Display the channel number.
Comment Display the comment.
CH & Comment
Display the channel number and com-
ment.
To Next Page
