7.4 Calculations
151
7
Chapter 7 Analyzing Measurement Data

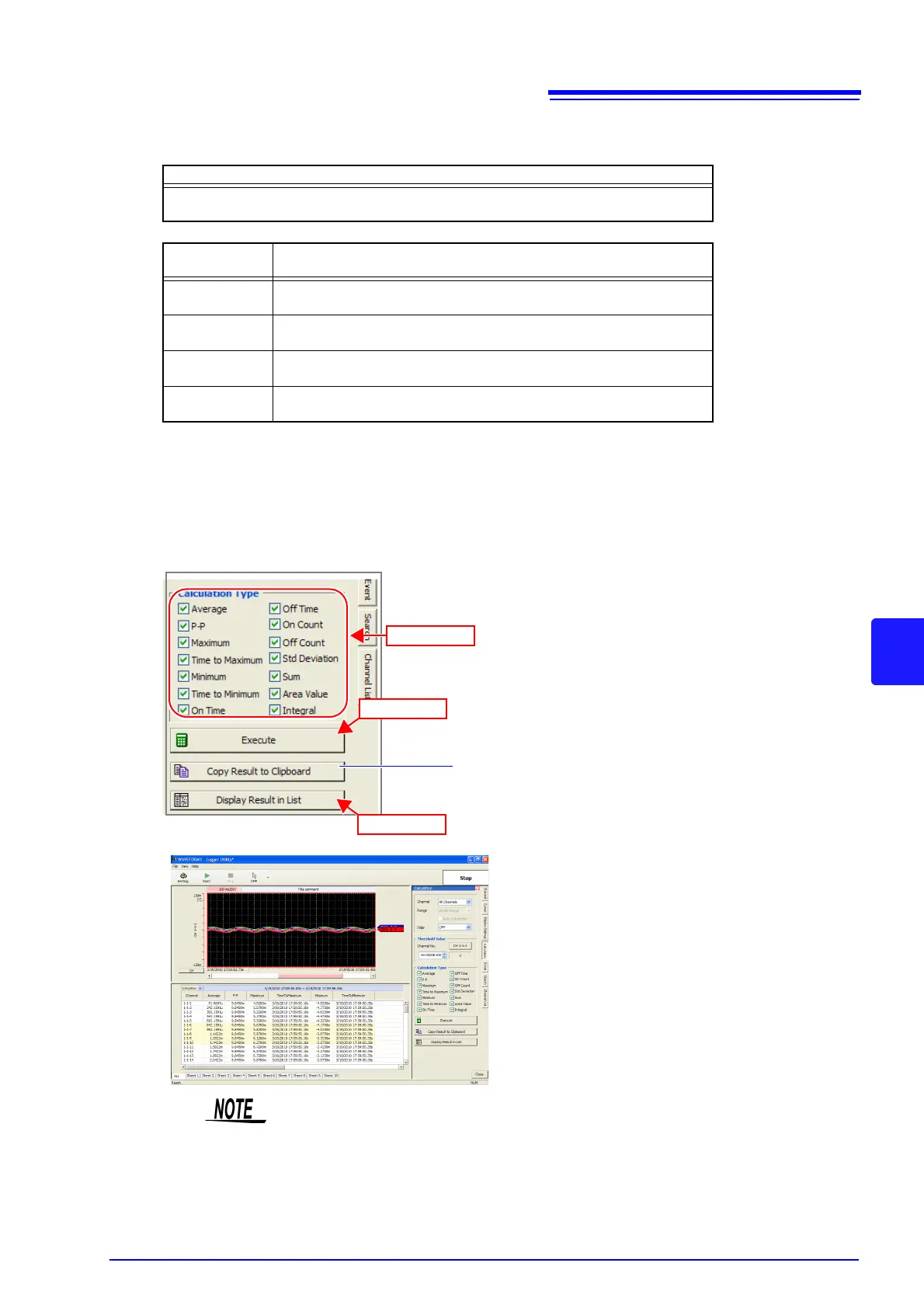

6. Select the calculation to perform.
7. Click the [Calculate] button to perform the calculation for the selected range.
The list display area displays the calculation.
If a calculation is performed for the
[Whole Range] calculation range during measurement, the calcula-
tion is performed for the range from the start of measurement to the point in time the
[Calculate] button
is pressed.
Selectable Items
Average, P-P, Maximum, Time to Maximum, Minimum, Time to Minimum, On Time,
Off Time, On Count, Off Count, Std Deviation, Integral, Area Value, Integration
Selectable
Items
Explanations
On Count
Display the number of times measurement values crossed over the
set threshold value.
Off Count
Display the number of times measurement values crossed under the
set threshold value.
On Time
Obtain the total time that measurement values were larger than the
set threshold value.
Off Time
Obtain the total time that measurement values were smaller than the
set threshold value.
(The calculations above are not possible with pulse.)
(1) Select
This button copies the calculation result to the clipboard. You can
paste the copied data into a Notepad, Word, or other document.
(3) Click
(2) Click
If the list display area is not displayed because logging display is
selected, this button switches the display to calculation display.
• When the calculation range is set to [Between A and B] and only one cursor is
displayed, the calculation range is from the cursor display position to the end of
the data.
• A calculation is not performed in real time during measurement. It is only per-
formed when the
[Calculate] button is clicked, or when the cursors A and B are
moved while
[Auto Calculation] is set for [Between A and B].
To Next Page
