5.6 Setting the Alarm Function
119
5
Chapter 5 Setting Measurement Conditions

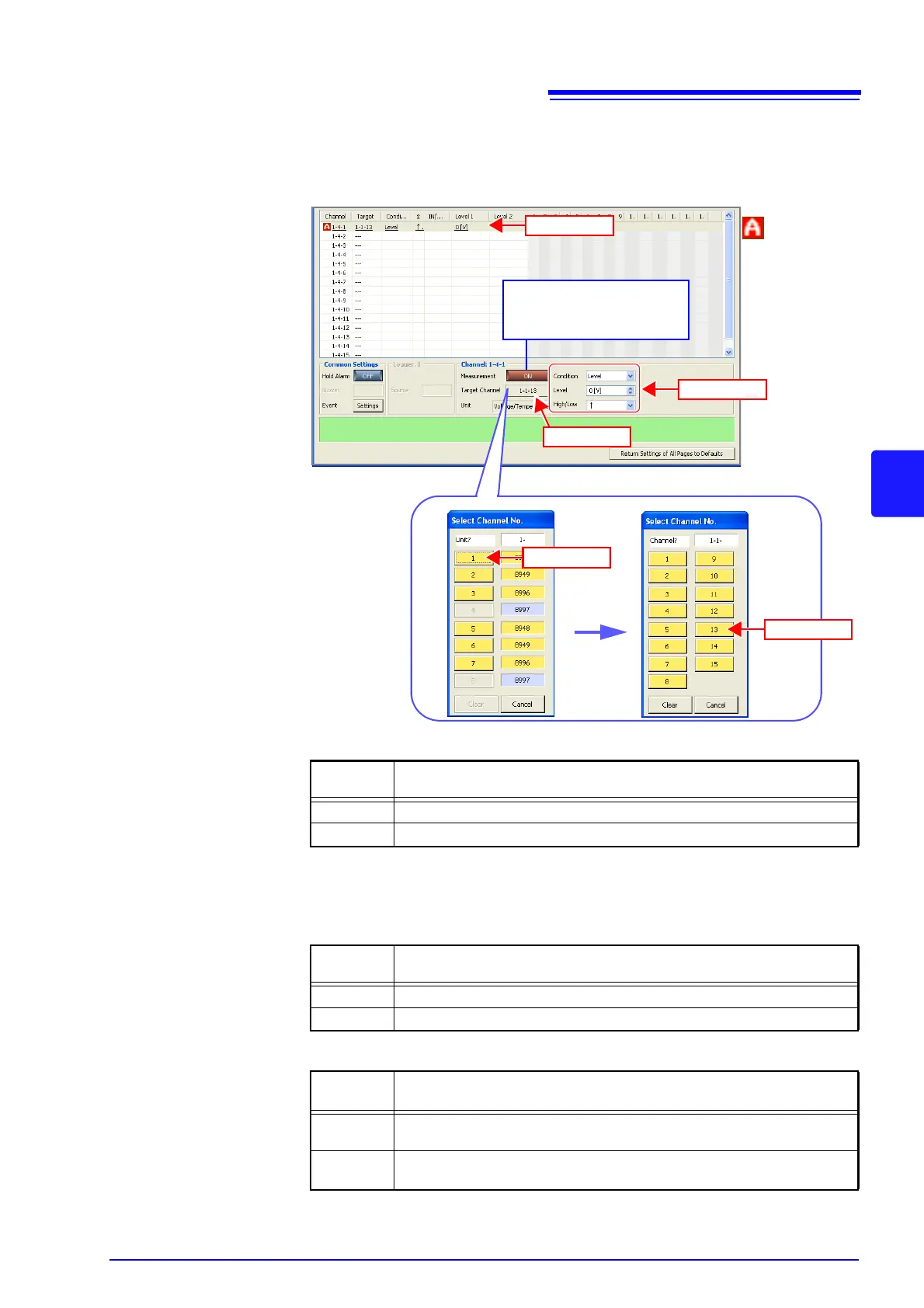

3. Set the alarm setting for each channel.
Example: Configure the alarm settings so that the voltage range of channel 13 (channel 1-
1-13) of the 8948 Voltage/Temp Unit is the alarm target channel
Condition:
Level: (Setting is only possible when level is selected under certain conditions)
Set the level (threshold value). Setting for scaling will be reflected.
High/Low: (Setting is only possible when level is selected under certain conditions)
IN/OUT: (Setting is only possible when window is selected under certain conditions)
Selectable
Items
Explanations
Level Output an alarm when the input signal satisfies the set level.
Window Output an alarm when the input signal enters or exits the set range.
Selectable
Items
Explanations
↑ Output an alarm when the value is larger than the set level value.
↓ Output an alarm when the value is less than the set level value.
Selectable
Items
Explanations
IN
Alarm will be output whenever a value is within the range of the window
(Upper/Lower limit values)
OUT
Alarm will be output whenever a value is outside the range of the window
(Upper/Lower limit values)
Set the input channel for setting the alarm condition.
(1) Click
(3) Click
(4) Click
: Alarm ON
(displayed
when the
alarm function
is set correctly)
(5) Set
When not using the alarm func-
tion even after setting the con-
ditions, click to [OFF].
(2) Click
To Next Page
