5.3 Configuring Basic Settings for Measurement
81
5
Chapter 5 Setting Measurement Conditions
Sampling is synchronized to the timing of the clock input from an external control
input terminal on the front of the instrument, and data is recorded. The measure-
ment data quantity is the same for all channels. A recording interval cannot be
set.

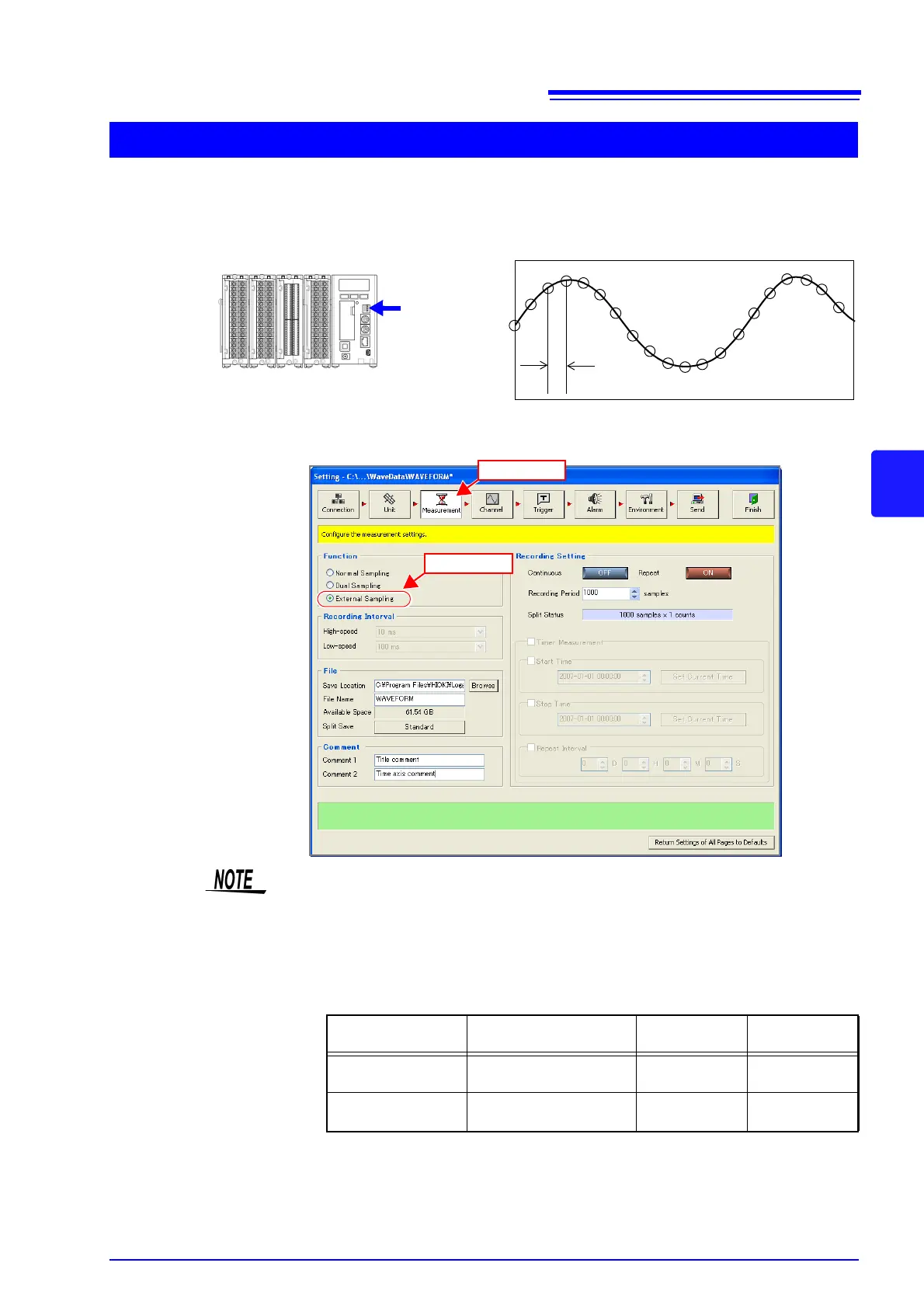

1. Click [External Sampling] on the measurement settings page.
External Sampling
Recording Interval (external clock)
External Clock
• Set the clock provided from an external device to no more than 100 Hz. It is not
possible to respond to a clock which is faster than that.
• For measurement in which a 9701 Humidity Sensor or digital filter is used, it is
not possible to record data with a recording interval for which the clock is less
than 5 seconds.
• The following table shows the maximum response speeds when external sam-
pling is set.
Maximum Sampling
Speed
Filter OFF 50 Hz 60 Hz
No humidity mea-
surement
10 ms/S
*
5 s/S 5 s/S
Humidity measure-
ment
5 s/S 5 s/S 5 s/S
* The maximum sampling speed for when performing synchronized measurement is 20
ms/S.
