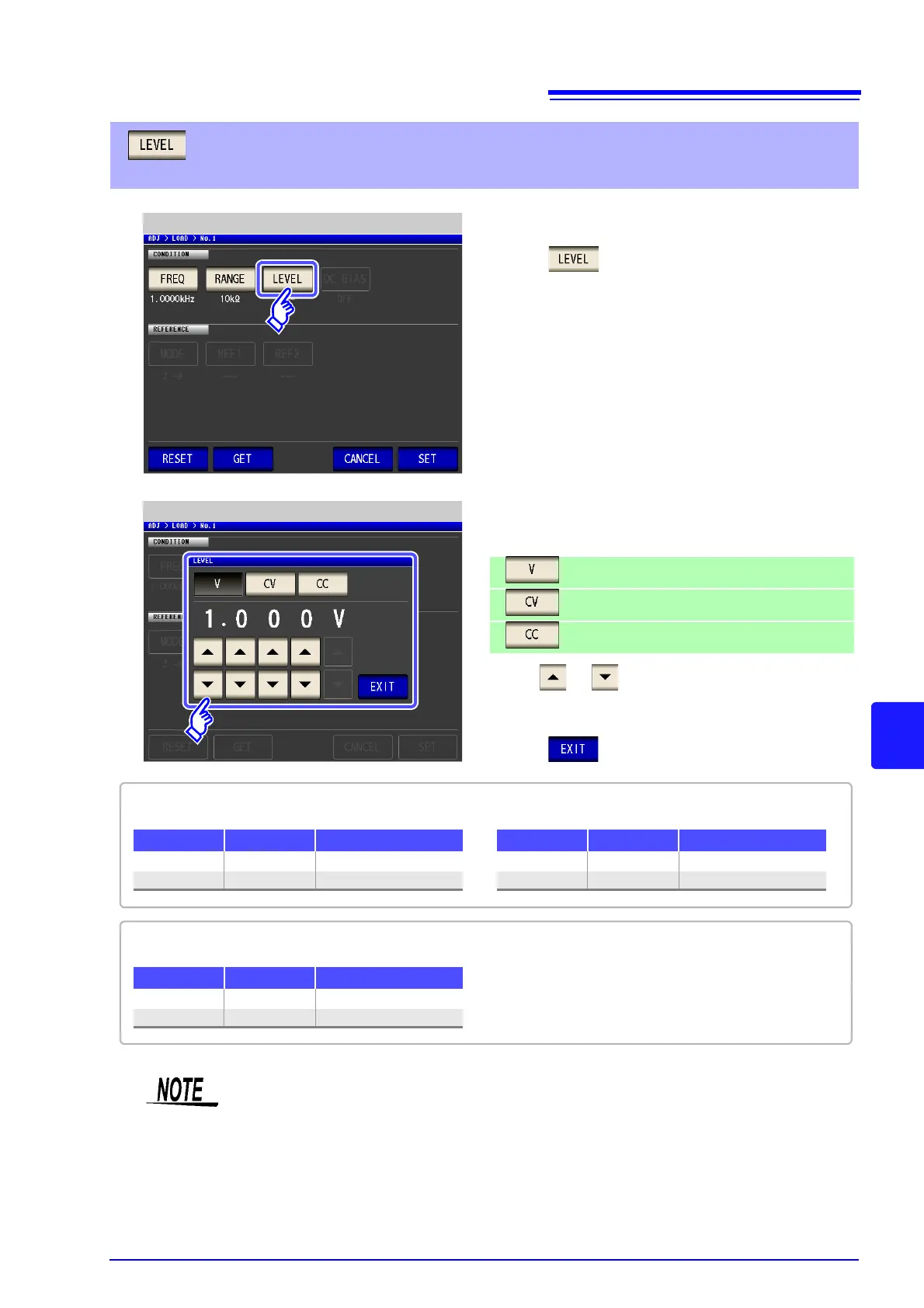

8.3 Compensating Values to Match Reference Values (Load Compensation)
239
8
Chapter 8 Error Compensation
Setting the measurement signal mode and value for the compensation
signal level
• If the compensation range is not set, you will be unable to set the measurement signal
mode and value for the compensation signal level.
• Since only 2 V open circuit voltage (V) mode is supported for DC load compensation, this
setting cannot be changed.
2. Select the measurement signal mode for the compensa-
tion signal level.
Open circuit voltage (V) mode (p. 54)
Constant voltage (CV) mode (p. 54)
Constant current (CC) mode (p. 55)
Level Setting
3. Use or to enter the voltage or current value.
For the compensation signal level setting ranges, see
the following figures.
4. Press to close the setting screen.
Load Compensation Setting
1. Press .
V, CV
LOW Z Range V, CV
OFF Entire range 0.005 to 5.000 V
ON Entire range 0.005 to 1.000 V
AC Load Compensation
CC
LOW Z Range CC
OFF Entire range 0.01 m to 50.00 mA
ON Entire range 0.01 m to 100.00 mA
V
LOW Z Range V
OFF Entire range 2 V (fixed)
ON Entire range 2 V (fixed)
DC Load Compensation
To Next Page
