v 2.0 — March 2023 Altanium Delta5
16 Home Screen
4.1.2 Home Screen
From the Home screen you can navigate to all other screens in the system. The Home screen
can be accessed from all other screens in the system when you touch the Home button in the
system header. The system screen selections on the Home screen are organized into groups:
Servo Control, Temperature Control Views, Temperature Control, Common, and System
Configuration screens. Refer to Figure 4-1.
Because of the features installed or not installed on your Altanium system, your Home screen
and other screens can look different from the screens shown in this user guide.

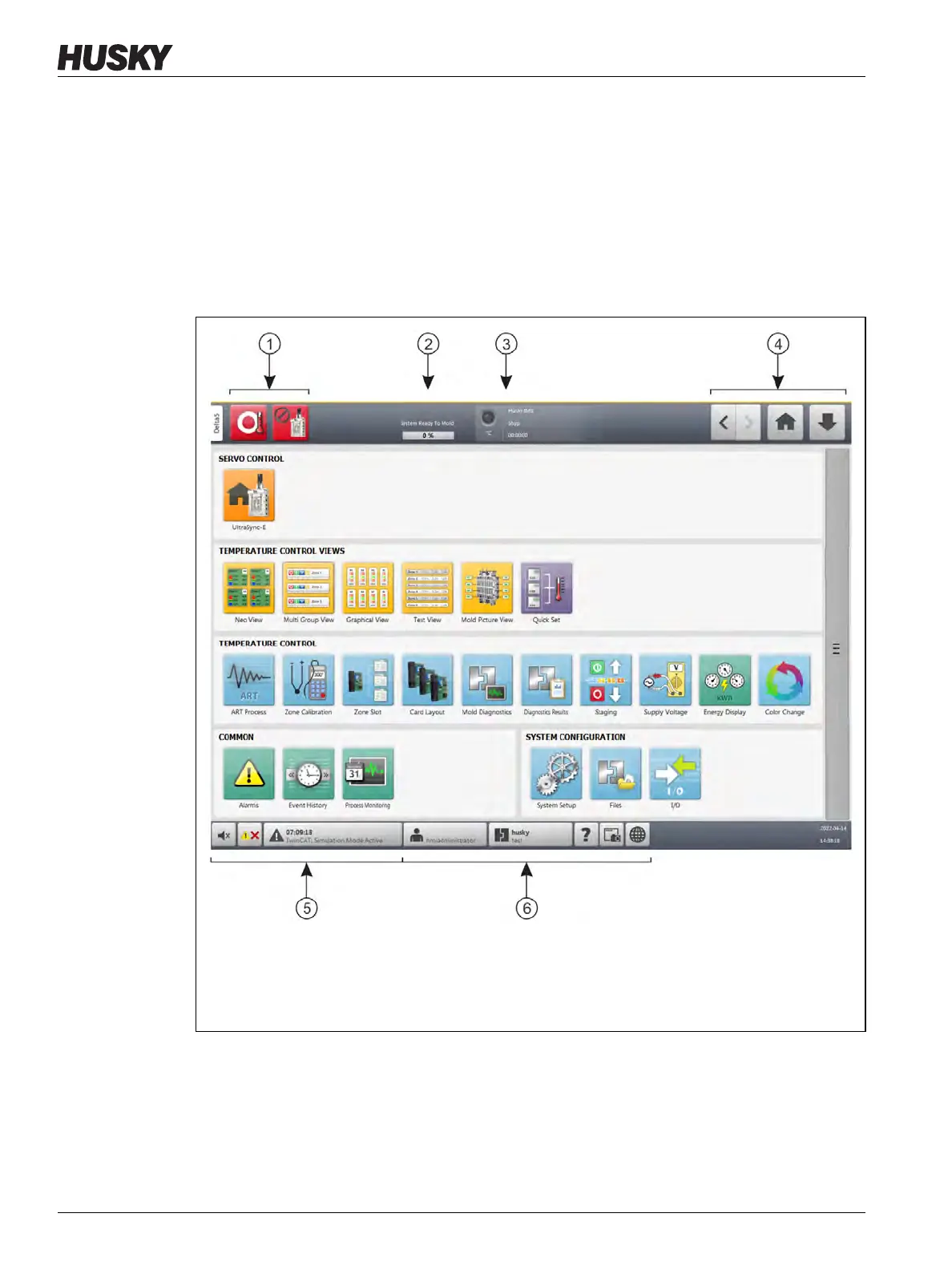

Figure 4-1 Home Screen (Composite)
1. Controller Function (Drop-Down) Buttons 2. System Ready To Mold Progress Bar 3. System
Status Field 4. Navigation Buttons 5. Alarm Buttons 6. System and User Management
Buttons
