v 2.0 — March 2023 Altanium Delta5
58 Graphical View Screen
3. Touch the Accept button.
7.4 Graphical View Screen
The Graphical View screen shows zones in a graphical format. This screen makes it easy to see
the full status of the mold and not have to sort through detailed data. Figure 7-5 shows the
Graphical View screen in full-screen mode.
Touch the Graphical View button on the Home screen.

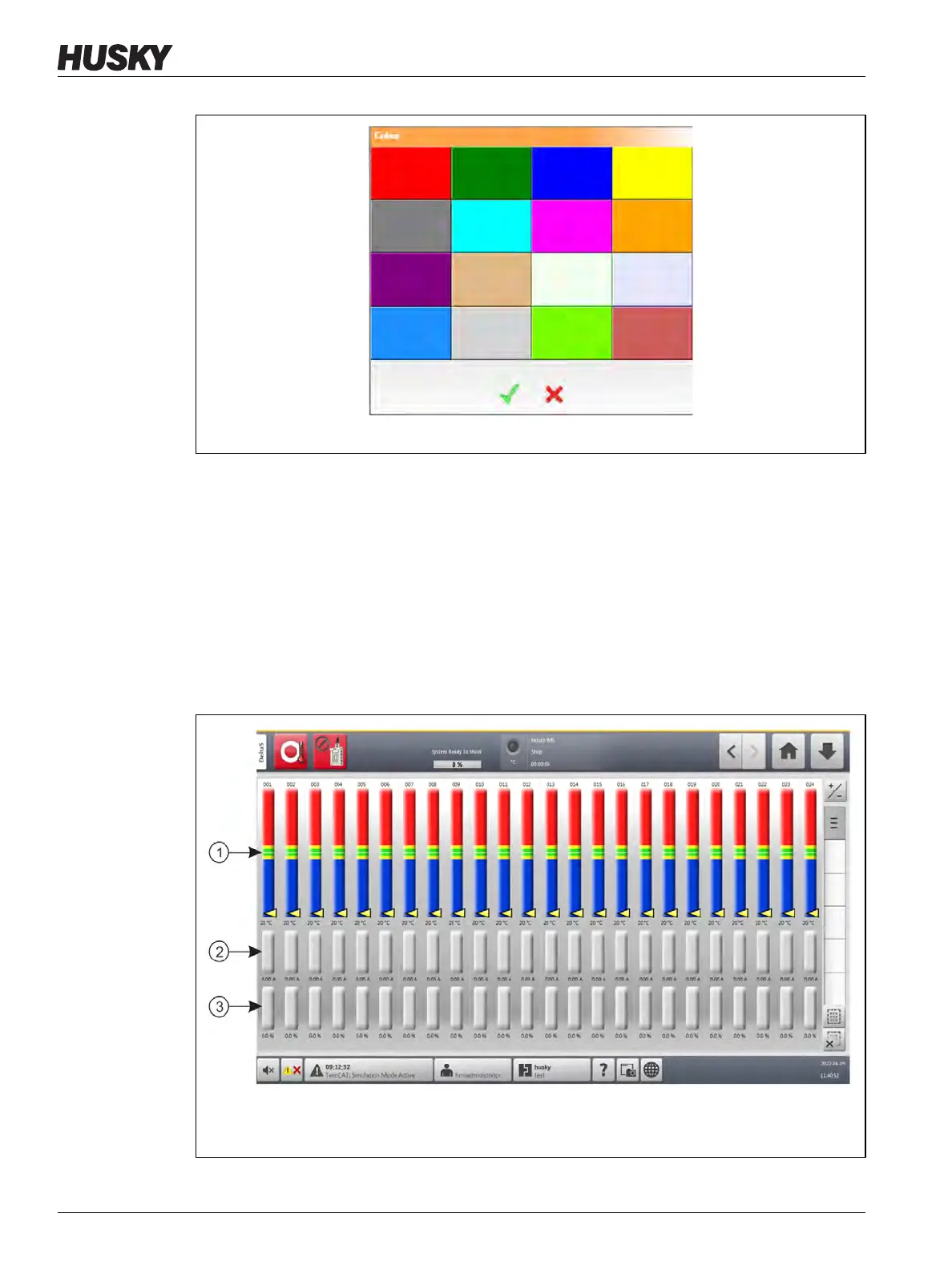

Figure 7-4 Color Change Dialog Box
Figure 7-5 Graphical View Screen (Full-Screen Mode)
1. Zone Bars 2. Amperage Bars 3. Power Bars
