Color Change and Thermal Sensitive Resin 225
User Guide v 2.0 — March 2023 Color Change
28. Touch the green check mark button to complete the Ultra Purge process (Figure 13-20).
13.4.2 Color Change and Thermal Sensitive Resin
This process is followed for thermally sensitive resins and increases the tip and manifold
temperatures before adding the Ultra-Purge compound to the IMM. The flowcharts in
Figure 13-21 define the supported sequences when performing a color change with non-
thermal sensitive resin.

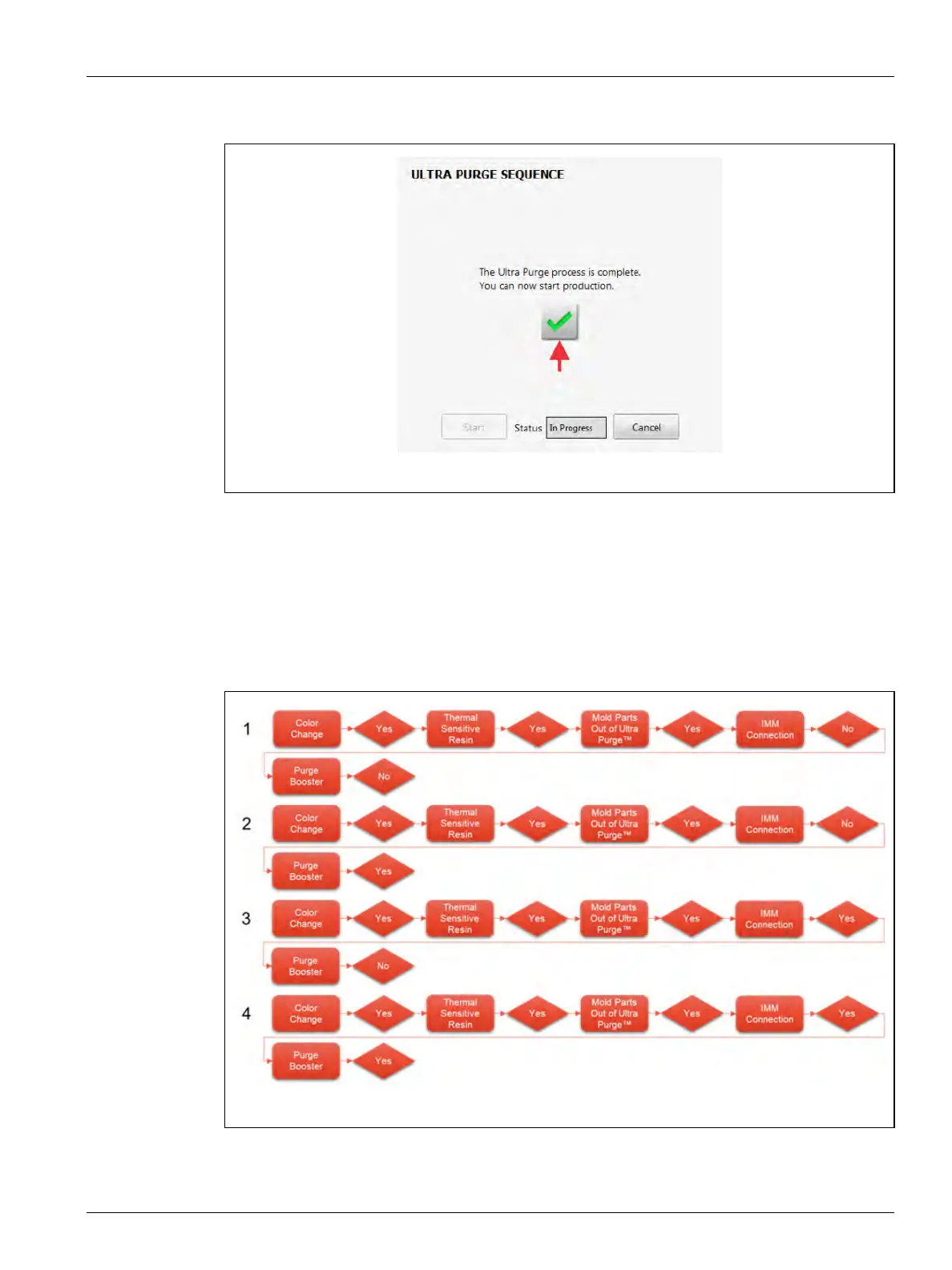

Figure 13-20 Ultra Purge Process Completed
Figure 13-21 Flowcharts - Color Change and Thermal Sensitive Resin
