v 2.0 — March 2023 Altanium Delta5
296 Install the Alternative Mounted Operator Interface
16.4.5 Install the Alternative Mounted Operator Interface
To install the alternative mounted operator interface, do the steps that follow:
1. If necessary, de-energize the system at the Altanium main power switch. Refer to
Figure 16-2.
2. If necessary, lock out and tag the main power switch in accordance with local codes.
3. Unpack and place the MCU assembly with pedestal and mounting base on top of the
controller mainframe.
4. Make sure that the mounting holes in the base align with those in the top of the
mainframe. Refer to Figure 16-32.

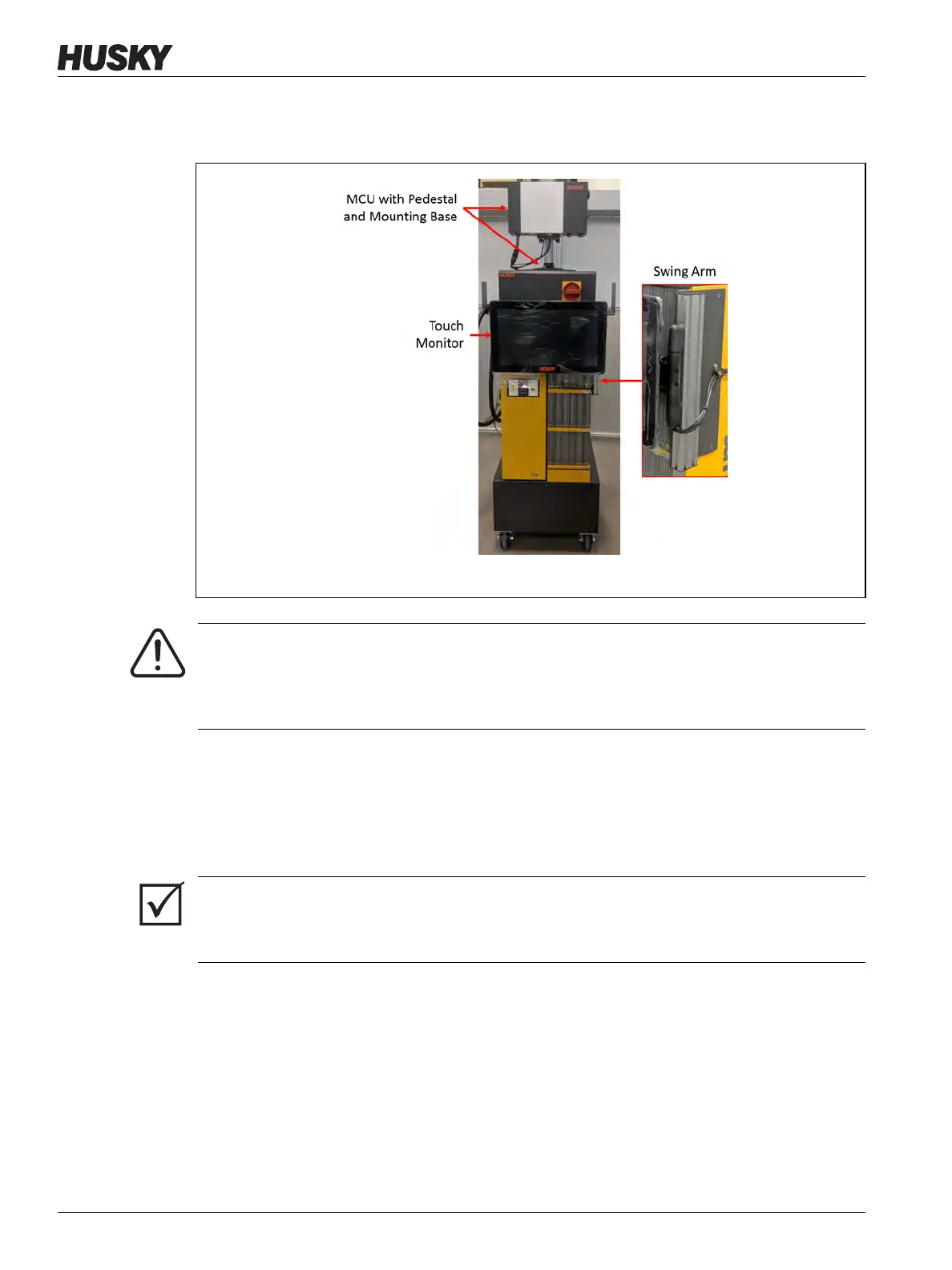

Figure 16-31 Alternative Mounted Operator Interface
WARNING!
Electrical and mechanical hazard- risk of death, serious injury and/or damage to the
equipment. Turn off all power to the system and disconnect it completely from the
main input power.
IMPORTANT!
The MCU with pedestal and mounting base should be orientated so that the heatsink on the
MCU faces towards the front of the controller.
