Chapter 8 Maintenance and Inspection8.5 Grease Supply
278

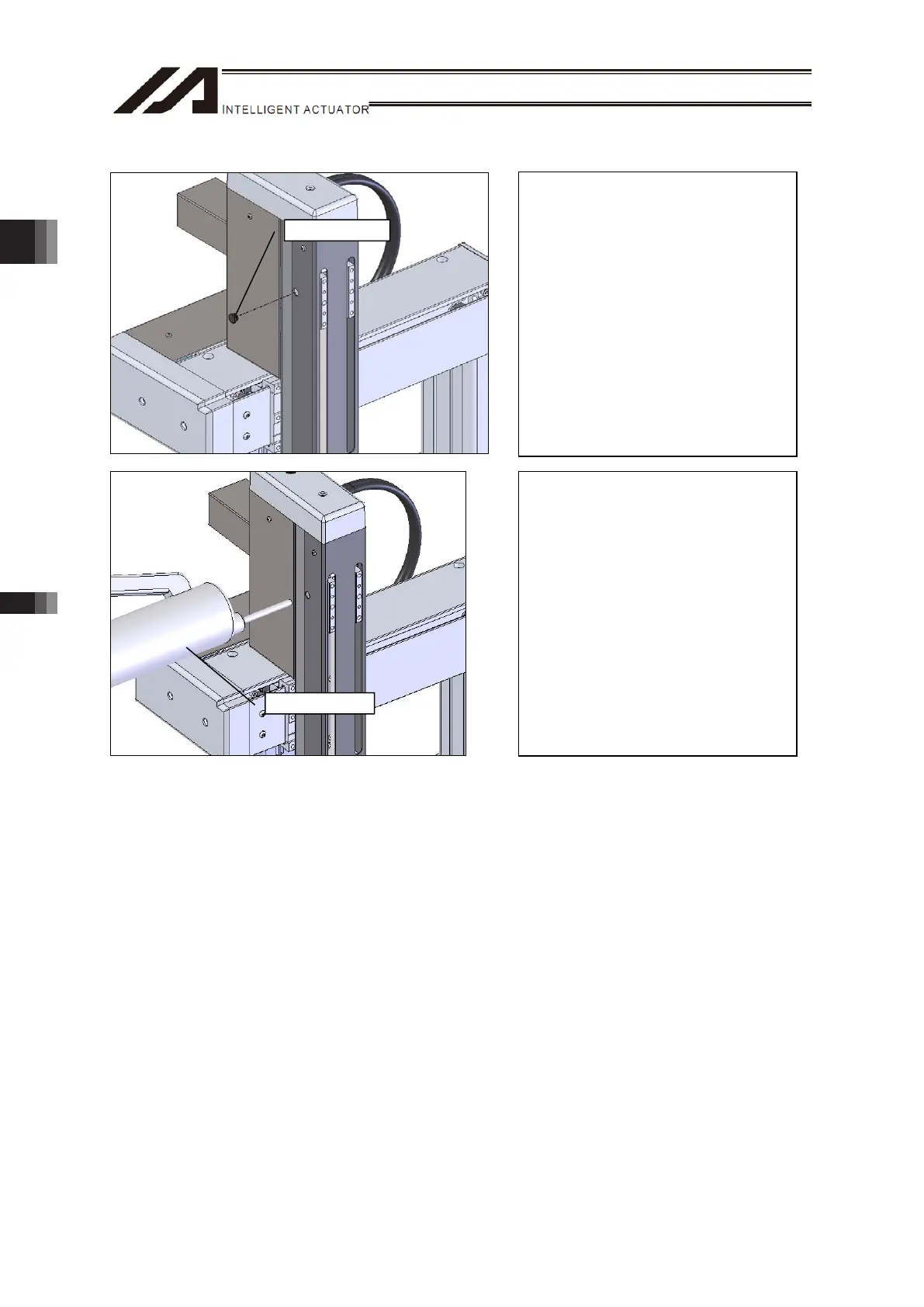

Rubber Cap
Grease Gun
[Z-axis Step (6)]
Move the slider on the Z-axis to the
home-position, and supply grease
with using a grease gun.
[Tool: Grease gun]
<Caution>
During supplying grease, hold the Z-
axis or turn the servo on so the Z-
axis will not move.
[Z-axis Step (4)]
View the Z-axis from the front, and
take out the rubber cap on the left.
[Z-axis Step (5)]
Confirm the grease nipple on the left
side of the Z-axis slider.
Grease should be supplied to the
guide and ball screw on the left side.
To Next Page
