Chapter 8 Maintenance and Inspection 8.5 Grease Supply
279

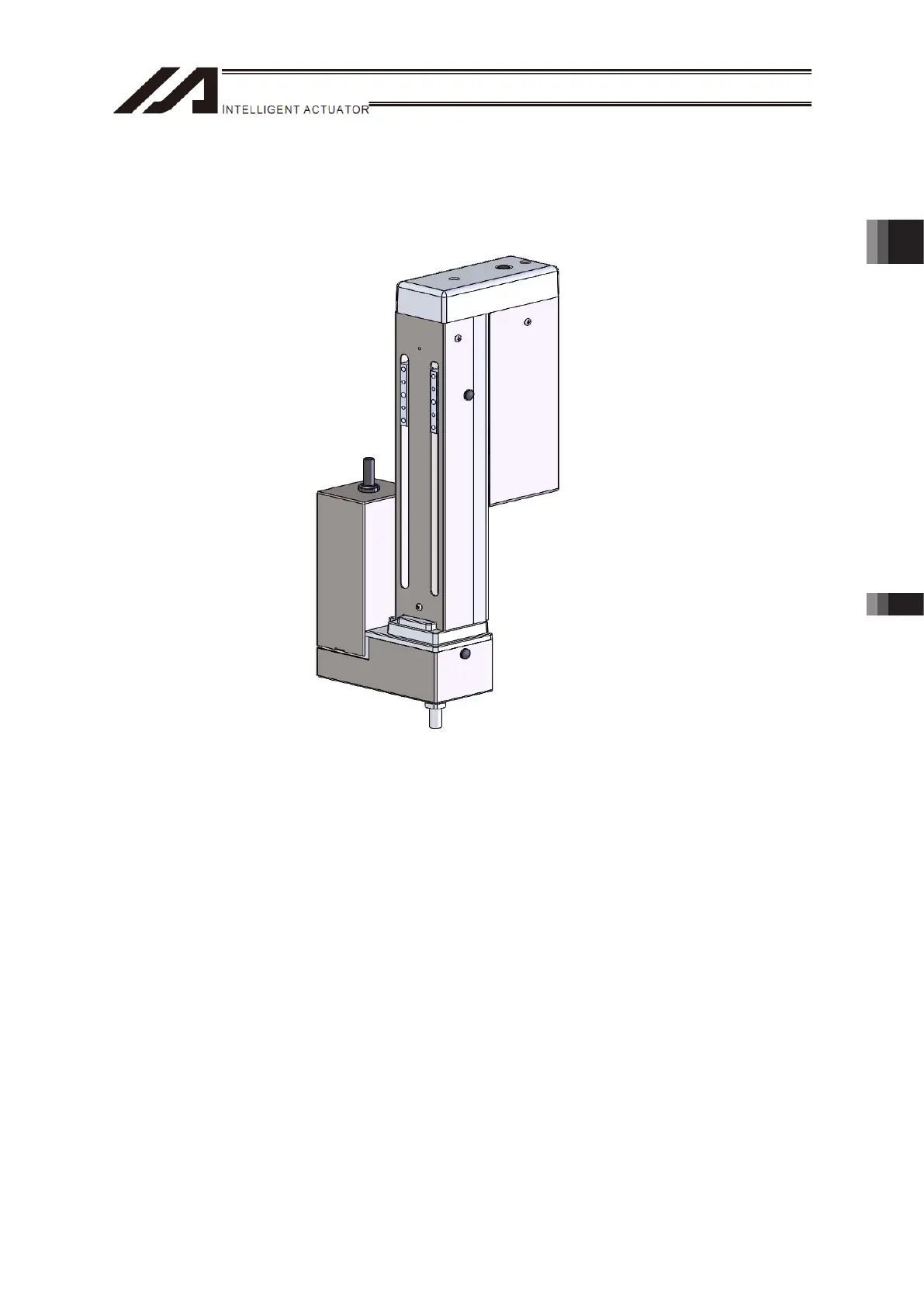

Procedures to Supply Grease on ZR Axis
Described below, shows the procedures to supply grease to the ZR-axis in TTA.
<Required Tool>
● Grease Gun
(Applicable for diameter 3.5 grease nipple hole, nozzle outer diameter 7.5mm or below, nozzle
length 70mm or more)
