Chapter 8 Maintenance and Inspection 8.6 Replacement of Timing Belt
283

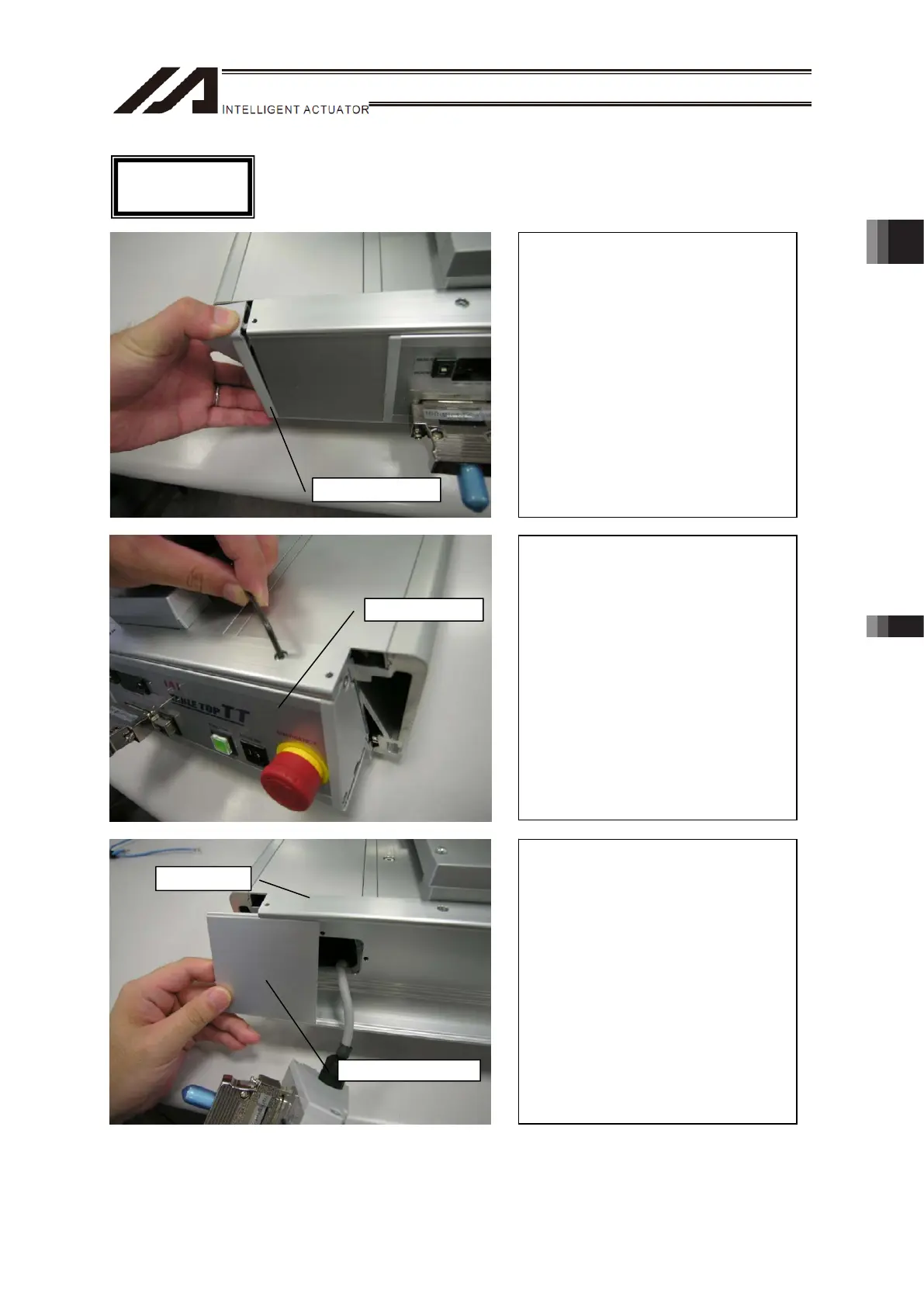

[X-axis Step (1)]
Take off the front base cap (on the
right and left).
Hold the top and get rid of the pin for
drop prevention and take the cap off.
[X-axis Step (2)]
Take off the operation box.
Remove the two screws on the top.
[Tool: Hexagon wrench]
[X-axis Step (3)]
Pull the front base cover out of the
front base.
<Caution>
If the cover is difficult to pull out, hold
the bottom of the front base to make
the gap larger.
X-Axis
Front Base Cap
Operation Box
Front Base Cover
Front Base
