Chapter 8 Maintenance and Inspection8.6 Replacement of Timing Belt
284

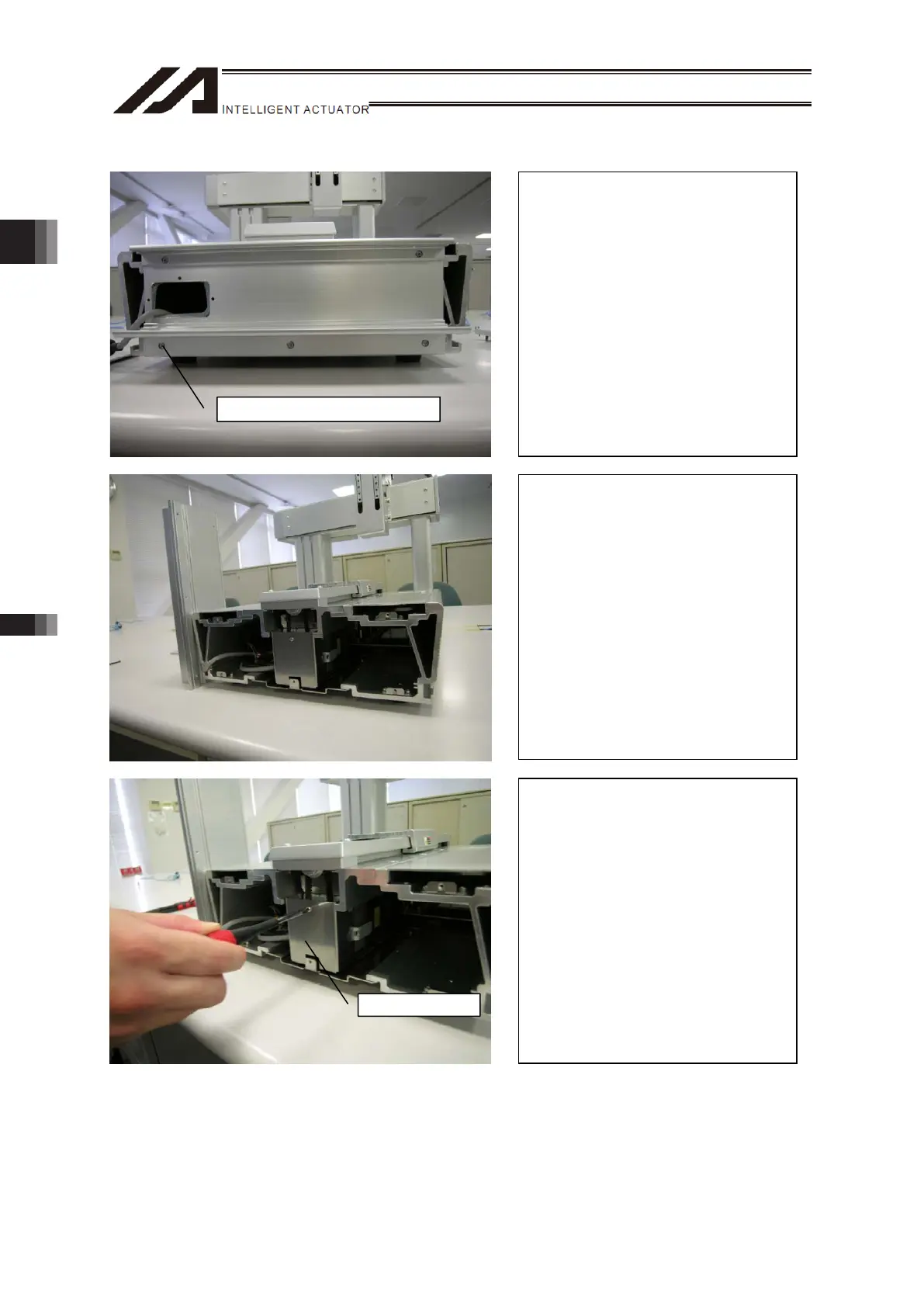

[X-axis Step (4)]
Take off the front base.
Remove the five screws on the front.
(The number of screws differ
depending on the TTA size.)
[Tool: Hexagon wrench]
[X-axis Step (5)]
Cables of the operation box go
through in the front base. Move the
front base to the side of the main unit
to avoid unnecessary load to the
cables.
[X-axis Step (6)]
Take off Pulley Cover X.
Remove the screw on the front.
[Tool: Phillips screwdriver]
Hex Socket Head Screws × 5
Pulley Cover X
To Next Page
