Chapter 8 Maintenance and Inspection8.6 Replacement of Timing Belt
298

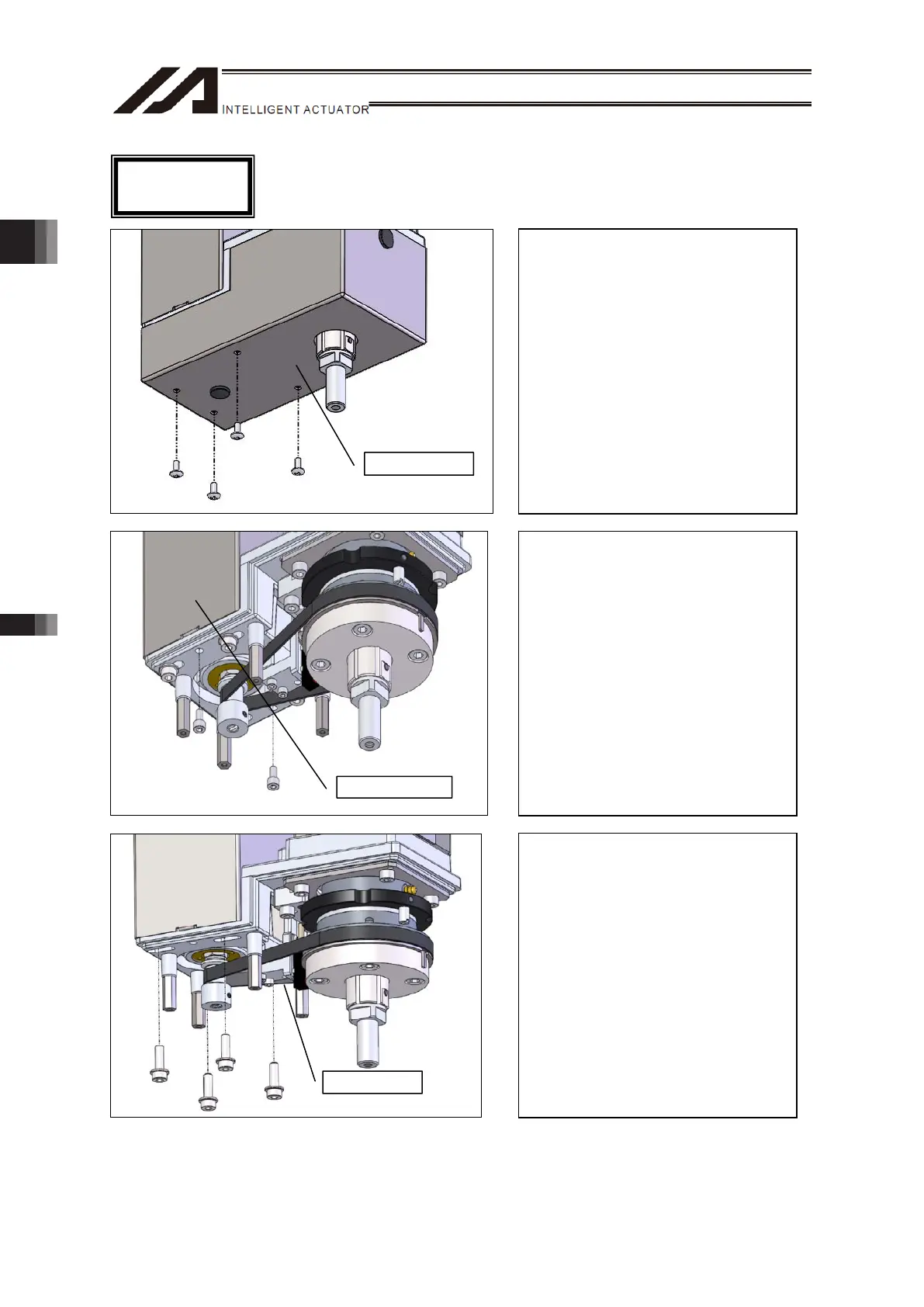

[R-axis Step (1)]
Take off the pulley cover.
Remove the four screws on the
bottom side.
[Tool: Phillips screwdriver]
[R-axis Step (2)]
Detach the fixture of the motor cover.
Remove the two screws on the
bottom side.
[Tool: Hexagon wrench]
<Caution>
In this process, the motor cover is not
to be taken off. Remove only the two
screws holding the motor cover.
[R-axis Step (3)]
Remove the motor fixture and loosen
the timing belt.
Remove the four screws on the
bottom side.
[Tool: Hexagon wrench]
R-Axis
Pulley Cover
Motor Cover
Timing Belt
To Next Page
