FLIGHT CONTROLS / PITCH CONTROLS 9-49
CHANGE C3 ICON A5 / MAINTENANCE MANUAL

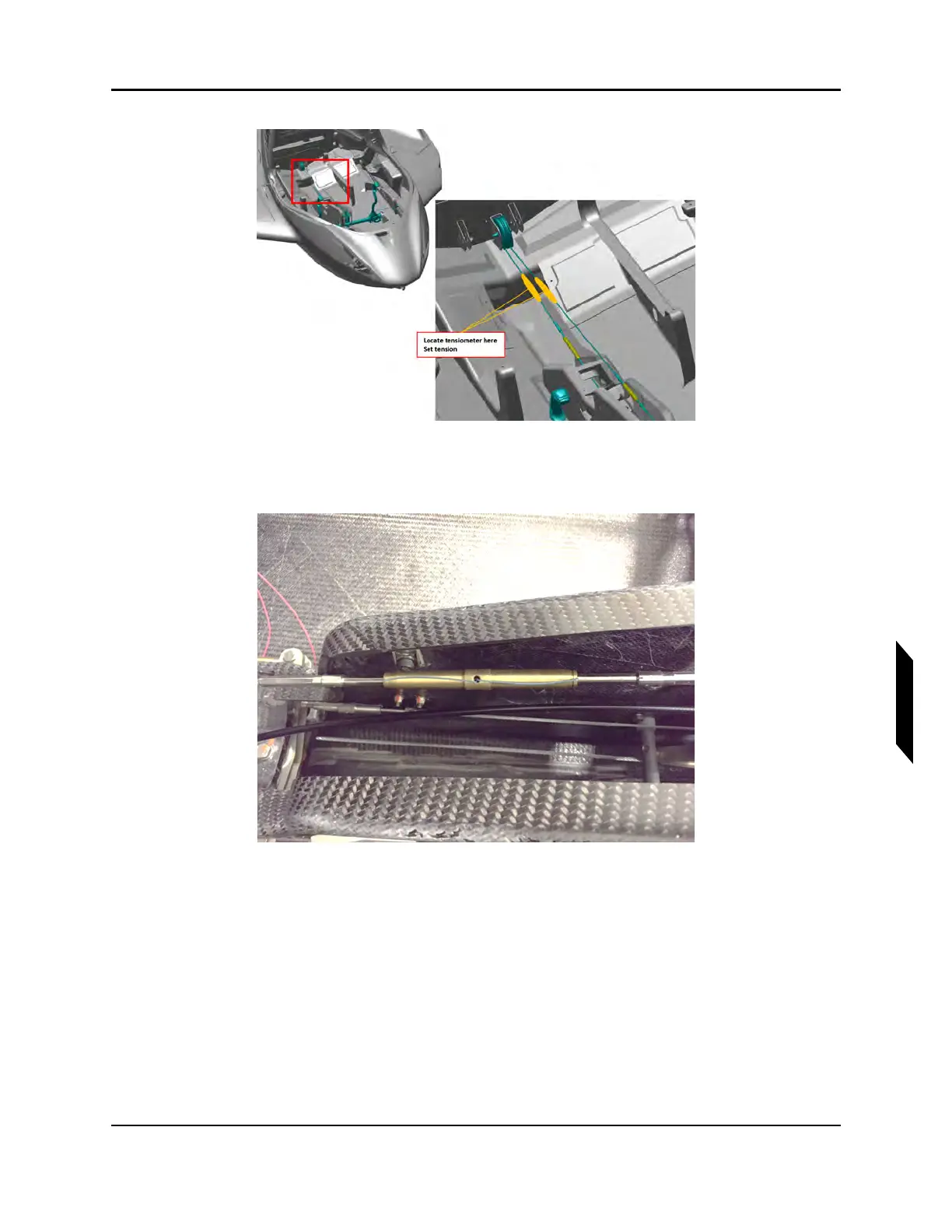

FIGURE 9-34
PITCH CIRCUIT TENSIONING
12. Install locking clips in each turnbuckle. See Figure 9-35.
FIGURE 9-35
LOCKING CLIP LOCATIONS
13. Remove rig pin in the aft pitch sector in vertical tail. See Figure 9-33.
14. Install horizontal tail and removable HT tips. (See “Horizontal Tail Removal and Installation” on
page 12-6.)(See “Horizontal Tail Tip Pin” on page 12-19.)
15. Ensure the rig pin in the FWD pitch sector is still installed.
16. If installed, remove the hardware which secures the elevator push rod to the elevator control
horn. See Figure 9-36.
